L / SR Stainless Steel Tubing Elbows Inconel 625 180 Degree Elbow
L / SR Stainless Steel Tubing Elbows Inconel 625 180 Degree Elbow
L / SR Stainless Steel Tubing Elbows Inconel 625 180 Degree Elbow
L / SR Stainless Steel Tubing Elbows Inconel 625 180 Degree Elbow
Specifications
Place of Origin :
China
Brand Name :
TOBO
Certification :
SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number :
Inconel 625
MOQ :
1PC
Price :
1USD
Packaging Details :
PLY-WOODEN CASE OR PALLET
Delivery Time :
10-100 days depending on quantity
Payment Terms :
T/T or Western Union or LC
Supply Ability :
3,0000pcs per month
Description

L / SR Stainless Steel Tubing Elbows Inconel 625 180 Degree Elbow

Brand Name:

TOBO

Model Number:

Inconel 625

Certification:

SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED

Place of Origin:

China

Product Name

Stainless Steel Elbow

Product Type

180 degree elbow

Size

1/2"-48"

Thickness:

SCH5~SCH160

Welding Line Type

EFW

Application

Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc

Standard

ASTM, Etc

surface

Transparent oil, rust-proof black oil or hot galvanized

Minimum Order Quantity:

1pcs

Price:

Depending on quantity

Payment Terms:

T/T or Western Union or LC

Supply Ability:

3,0000pcs per month

Delivery Time:

10-100 days depending on quantity

Packaging Details:

PLY-WOODEN CASE OR PALLET

L / SR Stainless Steel Tubing Elbows Inconel 625 180 Degree Elbow

Quick Details

Material:

Inconel 625, etc

Technics:

Forged

Type:

180 Degree Elbow

Place of Origin:

Shanghai, China (Mainland)

Model Number:

pipe elbow

Brand Name:

TOBO

Connection:

Welding, Weld

Shape:

Equal

Head Code:

Round

Packaging & Delivery

Packaging Detail:

Plywood case or fumigation woodern case

Delivery Detail:

Usually 2-10 days depend on the quantity

Specifications

Inconel 625 180 Degree Elbow

1) Size: 1/2"~48" (DN15 - DN1200)

2) THK: SCH5S - SCH160 XXS

3) Material: Nickel 200, Monel 400, Inconel 600/625, Incoloy 825/800,

Hastelloy C276, Hastelloy C22, Hastelloy B1/B2/B3, Alloy 20, etc

180 Degree Elbow is mainly used for connecting two pipes or tubes, allowing a change of direction. We can provide short radius elbows and long radius elbows.

Usually, 180 Degree Elbow is made of duplex stainless steels, stainless steels, alloy steels, and more.

Description Of Inconel 625 180 Degree Elbow

Type

180 Degree Elbow

Size

SMLS Elbow: 1/2"~24" (DN15 - DN600)

Welded Elbow: 1/2"~48" (DN15 - DN1200)

Wall thickness

sch10, sch20, sch30, std, sch40, sch60,

xs, sch80, sch100, etc

Standards

ASME, ASTM, DIN, JIS, etc

Material

Carbon Steel: ASTM: SA105N/A105, ASTM SA350 LF2,etc

Stainless Steel: ASTM A182 F304/304L/316/316L, etc

Alloy Steel: ASTM A182 F1/F5/F9/F11/F22/F91, Etc.

Duplex stainless steel: ASTM A182 F51/F53/F55/F60, etc

Nicke alloys: Nickel 200, Monel 400, Inconel 600/625, Incoloy 825/800,

Hastelloy C276, Hastelloy C22, Hastelloy B1/B2/B3, Alloy 20, etc

Cu-Ni: 90/10,70/30, etc

Surface treatment

Transparent oil, rust-proof black oil or hot galvanized

Applications

Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc

Specifications - Inconel 625 180 Degree Elbow

Standard

Inconel 625

UNS

N06625

Werkstoff Nr.

2.4856

Chemical Composition Of Inconel 625 180 Degree Elbow

Weight %

Ni

Cr

Mo

Nb + Ta

Fe

Ti

Alloy 625

58.0 min

20 - 23

8 -10

3.15 -4.15

5.0 max

0.40 max

C

Mn

Si

S

P

Al

Co

0.10 max

0.50 max

0.50 max

0.15 max

0.15 max

0.40 max

1.0 max

Mechanical & Physical Properties – Inconel 625

Density

8.4 g/cm3

Melting Point

1350 °C (2460 °F)

Tensile Strength

Psi – 135,000 , MPa – 930

Yield Strength (0.2%Offset)

Psi – 75,000 , MPa – 517

Elongation

42.5 %

What are the characteristics of Inconel 180 Degree Elbow?

1,Excellent corrosion resistance in reducing environments

2,Exceptional resistance to strong solutions of oxidizing salts, such as ferric and cupric chlorides

3,High nickel and molybdenum contents providing good corrosion resistance in reducing environments

4,Low carbon content which minimizes grain-boundary carbide precipitation during welding to in heat-affected zones of welded joints

5,Resistance to localized corrosion such as pitting and stress-corrosion cracking

6,One of few materials to withstand the corrosive effects of wet chlorine gas, hypochlorite and chlorine dioxide

Design Features - UNS N06625 Inconel 625

1,Outstanding corrosion resistance and oxidizing environments.

2,Excellent resistance to pitting and stress-corrosion cracking.

3,Maintains corrosion resistance in welded joints.

Application of Inconel 625 180 Degree Elbow

1. Petrochemical industry

2. Pharmaceutical industry
3. Food industry
4. Aviation and aerospace industry

5. Architectural decoration industry

5. Oil and Gas Pipeline industry

Other Features:

1) Chemical and Physical characteristic: durable, corrosion resistant and high-temperature resistant

2) We also produce pipe fittings with special specifications according to customers’ requirements;

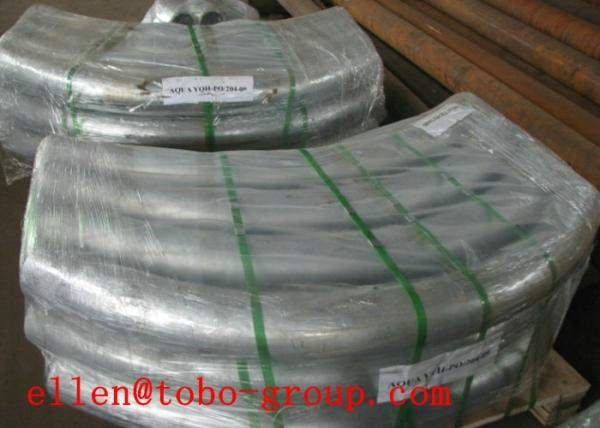

Inconel 625 180 Degree Elbows Packing & Shipping

1) Packing Method:

Normal packing: plastic film or bubble paper wrapped on product's surface ,protect ends with caps , pack with wooden case or load on fumifation plywood pallet .

Custom made as customers request .

2) Shipping Way:

Usually by Sea, By Air, By Train or River-and-Sea Coordinated Transport.
