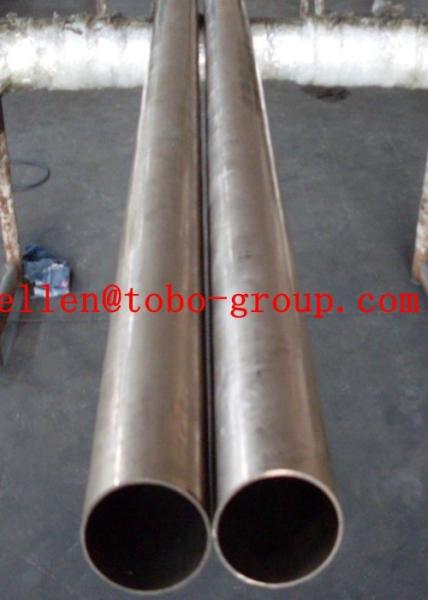

Anti Corrosion Inconel Tubing Alloy 718 ASTMB444 B704 AMS 5581 BS3074 GEB50TF133
Anti Corrosion Inconel Tubing Alloy 718 ASTMB444 B704 AMS 5581 BS3074 GEB50TF133
Anti Corrosion Inconel Tubing Alloy 718 ASTMB444 B704 AMS 5581 BS3074 GEB50TF133
Anti Corrosion Inconel Tubing Alloy 718 ASTMB444 B704 AMS 5581 BS3074 GEB50TF133
Specifications
Brand Name :
TOBO
Model Number :
Nickel Pipe
Certification :
SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Place of Origin :
China
MOQ :
1pcs
Price :
1USD
Payment Terms :
T/T
Supply Ability :
3,0000pcs per month
Delivery Time :
10-100 days depending on quantity
Packaging Details :
PLY-WOODEN CASE OR PALLET
Description
Detailed Product Description
Material Grade: 718 600 800 800H Outer Diameter: 6mm-920mm
Standard: ASTM B444 B704 AMS 5581 BS3074 GEB50TF133 Name: Inconel 718 Pipe
Melting Range: 1354-1413℃ Wall Thickness: 1mm-50mm
Shape: Bar,Pipe, Tube, Sheet, Strip, Plate Using: Heat Exchanger

Anti Corrosion Inconel Tubing Alloy 718 ASTMB444 B704 AMS 5581 BS3074 GEB50TF133

Inconel 718 is a high strength nickel base superalloy used for cryogenic temperatures up to long term service at 1200°F. The alloy is readily fabricated and may be welded in either the annealed or precipitation (age) hardened condition. Anneal 1700 -1850°F, air cool or faster. Age 1325°F 8 hours, furnace cool to hold at 1150°F, for a total aging time of 18 hours, air cool. Alloy 718 will show a contraction of 0.0008 inch/inch after precipitation hardening.

Chemistry

Ni+Co Cr Cb+Ta Mo Ti Al Co C Mn Si P S B Cu Fe
MIN 50.00 17.00 4.75 2.80 0.65 0.20 -- -- -- -- -- -- -- -- --
MAX 55.00 21.00 5.50 3.30 1.15 0.80 1.00 0.08 0.35 0.35 0.015 0.015 0.006 0.30 Balance

DESCRIPTION OF INCONEL ALLOYS:

Inconel alloy 718 seamless pipe/tube has excellent corrosion resistance at high and low temperatures and good resistance to stress-corrosion cracking and pitting corrosion.

Inconel alloy 718 seamless pipe/tube has good performance in hostile environments containing H2S, CO2, chlorides, sulfides and free sulfur at selected temperatures. Alloy 718 is commonly used for cryogenic storage tanks, downhole shafts and wellhead parts.

333® Inventory : Plate, Welding Products Specifications : AMS 5593, AMS 5717, ASTM B 718, ASTM B 719, ASTM B 722, ASTM B 723, ASTM B 726, UNS N06333, W. NR./EN 2.4608
RA 602 CA® Inventory : Plate, Round Bar, Sheet, Welding Products Specifications : ASME Code Case 2359, ASME SB 166, ASME SB 168, ASTM B 166, ASTM B 168, ERNiCrFe-12, UNS N06025, W. Nr./EN 2.4633
Inconel 600 Inventory : Plate, Rod Coil, Round Bar, Sheet, Welding Products Specifications : AMS 5540, AMS 5665, ASME SB 166, ASME SB 167, ASME SB 168, ASTM B 166, ASTM B 167, ASTM B 168, EN 2.4816, UNS N06600, Werkstoff 2.4816
Inconel 601 Inventory : Coil, Pipe, Plate, Sheet Specifications : AMS 5715, AMS 5870, ASME SB 167, ASME SB 168, ASTM B 167, ASTM B 168, EN 2.4851, UNS N06601, Werkstoff 2.4851
Inconel 625 Inventory : Plate, Round Bar, Sheet, Welding Products Specifications : AMS 5599, AMS 5666, AMS 5837, ASME SB 443 Gr 1, ASME SB 446 Gr 1, ASTM B 443 Gr 1, ASTM B 446 Gr 1, EN 2.4856, ISO 15156-3, NACE MR0175-3, UNS N06625, Werkstoff 2.4856
Inconel 718 Inventory : Plate, Round Bar, Sheet, Welding Products Specifications : AMS 5596, AMS 5662, AMS 5663, AMS 5832, ASME Case 2222-1, ASME SFA 5.14, ASTM B 637, ASTM B 670, EN 2.4668, GE B50TF14, GE B50TF15, UNS N07718, Werkstoff 2.4668
718 NACE Inventory : Round Bar Specifications : API 6A, API 6A718, EN 2.4668, ISO 15156-3, NACE MR0103, NACE MR0175, UNS N07718, Werkstoff 2.4668
Inconel X-750 Inventory : Sheet Specifications : AMS 5542, AMS 5598, AMS 5670, AMS 5671, ISO 15156-3, NACE MR0175, UNS N07750, W. Nr./EN: 2.4669
Incoloy 800 H/HT Inventory : Coil, Plate, Sheet, Welding Products Specifications : ASTM B 407, ASTM B 408, ASTM B 409, UNS N08810, UNS N08811, W. Nr./EN 1.4959
Incoloy 825 Inventory : Pipe, Plate, Round Bar, Sheet, Welding Products Specifications : ASME SB-163, ASME SB-366, ASME SB-423, ASME SB-424, ASME SB-425, ASME SB-705, ASTM B 163, ASTM B 366, ASTM B 423, ASTM B 424, ASTM B 425, ASTM B 705, UNS N08825, UNS N08825 W.
Monel 400 Inventory : Pipe, Plate, Sheet, Welding ProductsSpecifications : ASME SB-127, ASME SB-164, ASME SB-165, ASME SB-366, ASME SB-725, ASTM B 127, ASTM B 164, ASTM B 165, ASTM B 366, ASTM B 725, ISO 15156-3, NACE MR0175, Nr./EN 2.4361, Nr./EN 2.4360, UNS N04400 W
Monel K-500 Inventory : Pipe, Plate, Sheet Specifications : ASME Bolting Code Case 1192, ASTM B 865, ISO 15156-3, NACE MR0175, UNS N05500, W. NR./EN 2.4375

Inconel 718 Pysical properties:

Alloy state Tensile strength
Rm N/mm²		 Yield strength
R P0. 2N/mm²

Elongation

A 5 %
718 965 550 30

Inconel 718 Typical application field as below:

1 .The Organic chemical process parts contains chloride, especially in the use of acid chloride

catalyst.

2. The digester and bleacherin the use of paper pulp and paper making industry.

3. Absorption tower, re-heater,gas import board, fan, blender, fair water fin, flue and so on for using

in flue gas desulfurization system.

4. The equipment and parts in the use of acidic gas environments.

5. Acetic acid and anhydride reaction generator
6. Sulfur acid cooling
