Major characteristics

The product is the latest capping machine designed by our company. The overall performance of the product has reached the international advanced level. Some of the products have exceeded the best level of similar foreign products and have been approved by the world's giant companies. This product is a track-type capping machine, with PLC and touch screen automation control, with accurate measurement, advanced structure, stable operation, low noise, wide adjustment range, fast speed, easy to change specifications, all parts are use high-quality stainless steel, is the ideal packaging equipment for various industries. PLC has a memory function, and can simultaneously memorize the combination of five doses and operating parameters, mechanical structure is simple, large space, greatly facilitate the replacement of the specifications of the adjustment

Working principle:

(1)This capping machine adopts rotary type for screwing or pressing caps. Caps are oriented and supplied to the cap grasping area, capping heads grasped caps send to capping area by compressed air for doing

Capping work, finally capper bottles are outlet by conveyor.

(2) Bottle inlet can cap inlet are controlled synchronously

(3) Reversed caps can be ejected. (Optional function)

(4) If bottle size different, no need change mould.

Technical Parameter:

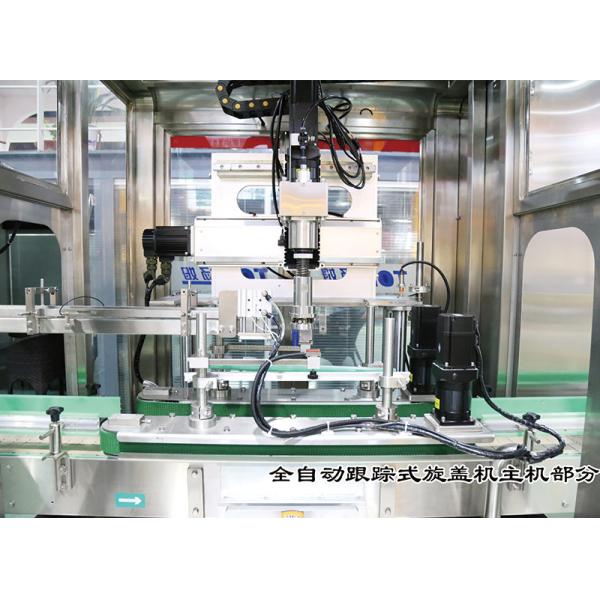

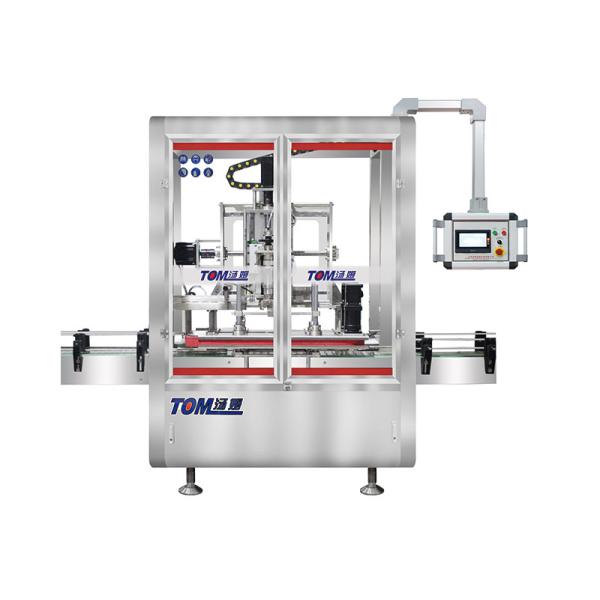

Machine Photo

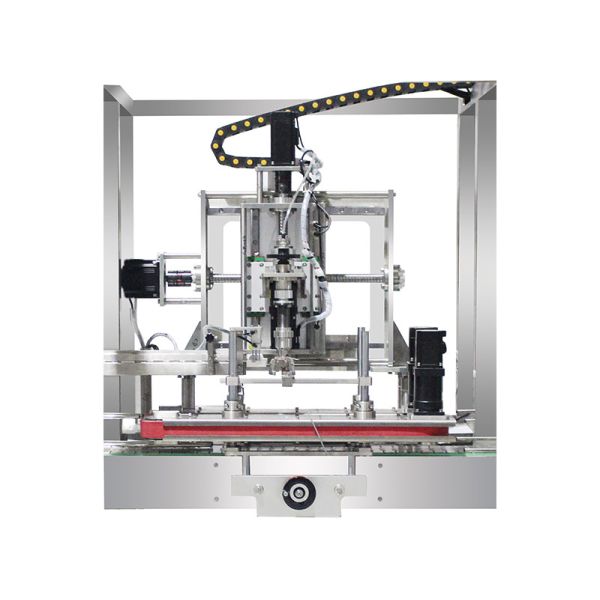

Capping part

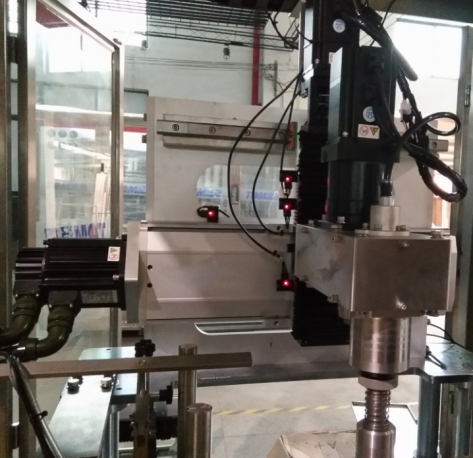

Detection system

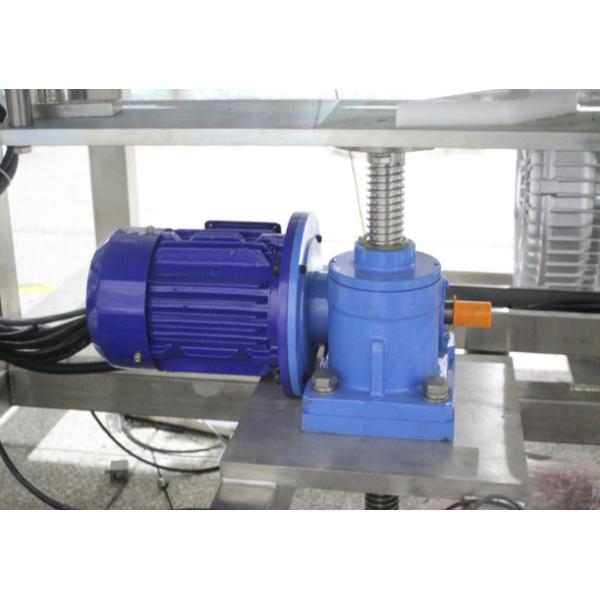

Main lifting part:

The machine main lifting parts adopts motor-type lifting adjustment, when need to replace the bottle specifications, due to the different bottle height, you only need to operate in the touch screen to achieve height adjustment, and the machine installed upper limit, lower limit photoelectric protection device to ensure that no errors occur;

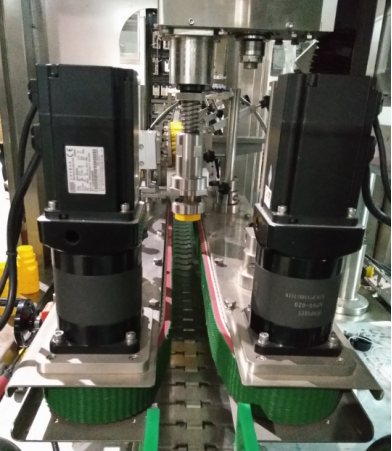

Capping part:

The PLC controlled the rotation of the servo motor to achieve the rotary cap around the shift to produce the effect of tracking the screw cap, use servo motor control, stable operation, the translation distance accurate, fast and security.

Threshold protection: the host is equipped with a safety door threshold alarm device. During normal production, open the safety door (around the door), and the host automatically alarms and stops the machine;

An oil-water separator is installed in front of the intake main pipe. When the pressure is too high or too low, the host automatically alarms and stops the machine; (All the above alarms are touch screen display and sound and light alarms at the same time)
