Product Information:

Place of Origin:Henan, China
Product Type:Cosmetic
Condition:New
Machine Type:Granulator
Output (kg/h):5000
Video outgoing-inspection:Provided
Machinery Test Report:Provided
Marketing Type:Ordinary Product
Warranty of core components:1 Year
Core Components:Engine, Bearing, Gearbox
Brand Name:TongDa
Voltage:220V/380V
Dimension(L*W*H):900*500*1000cm
Weight (KG):15000
Certification:ISO CE
Power (kW):150
Warranty:1 Year
After-sales Service Provided:Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Key Selling Points:High Productivity
Applicable Industries:Manufacturing Plant, Organic fertilizer production equipment
After Warranty Service:Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:None
Showroom Location:None

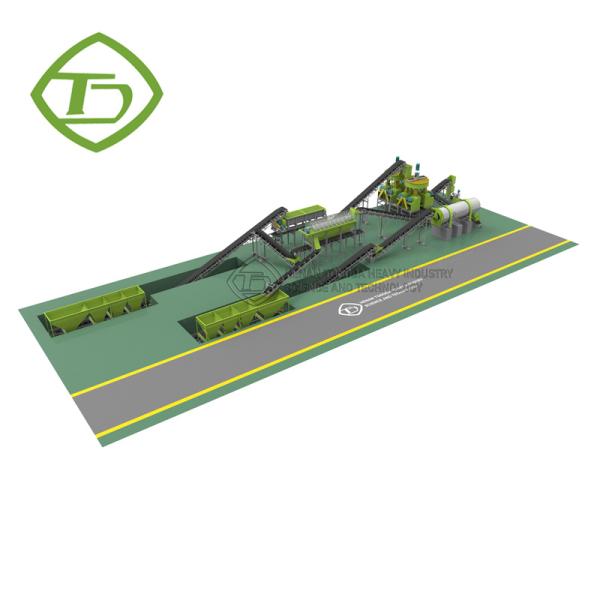

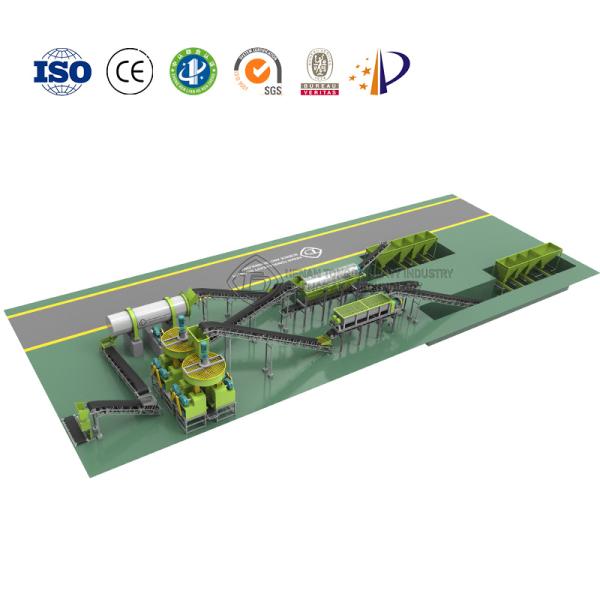

Product Name:Double Roller Granular Fertilizer Production Line
Color:Customer's Request
Function:Produce NPK Fertilizer Pellet
Working method:Roller Granulating Dry Powder

Main features as follows:
1. Production by no drying process, and granulation at room temperature;
2. Less investment, quick and good economic returns, reliable performance.
3. Function with granulation, screener with Low Power, no waste discharge, stable operation,easy maintenanceSuitable for granulation in many industries, such as fertilizer, feed, and cemical etc.
Applicable raw materials:
The double roller press granulation production line is widely used in coal, chemical, pharmaceutical, environmental protection and other industries. The applicable raw materials are: compound fertilizer, feed, chemical fertilizer, inorganic salt, ammonium chloride, dust, lime powder, graphite powder, etc.

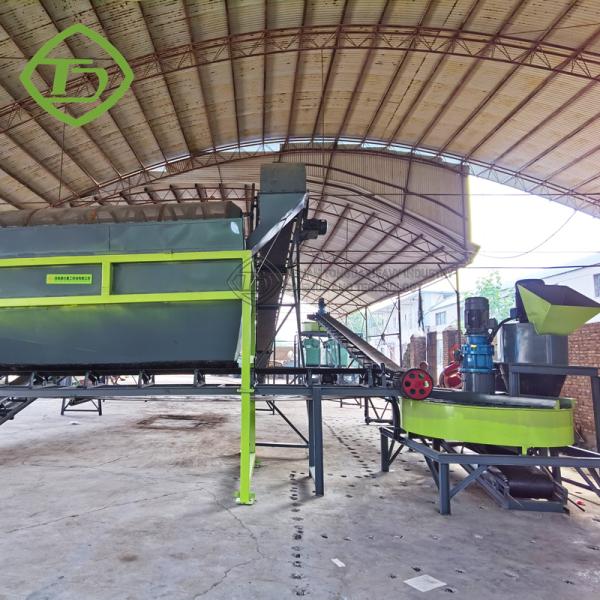

Main equipment included:
Dynamic batching system: The dynamic batching machine is suitable for the site of continuous batching,such as fertilizer batching and coking batching.These sites have higher requirements on the continuity of the batching,which generally do not allow the intermediate batching to stop,and the requirements for the proportioning of various materials are strict.The dynamic batching system is usually measured by electronic belt scale or nuclear scale,and the host has PID regulation and alarm function,which can realize the automatic control of a warehouse.
Disc feeder machine: The disc feeder machine not only can be used for feeding the raw materials to granulators,but also can be used a mixer to mixing the materials,it has long service life, energy saving, small volume, fast stirring speed and continuous working.

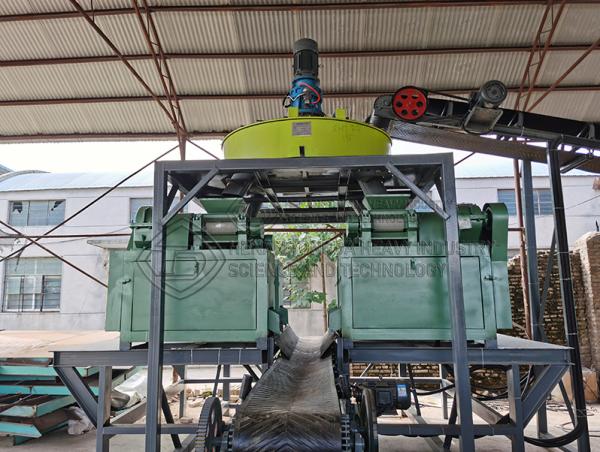

Double roller press granulator:Double roller press granulator is the key equipment for compound fertilizer granulation. It uses squeezing principle to form fertilizer particles with diameters of 3-10mm in one time. The shape and size of the ball socket on the roller shell can be customized by customer. Dry type fertilizer Double Roller Granulator has higher granulating ratio of over 95%. With no drying technology, materials will be pressed into ball shape to meet the requirements of compound fertilizer production in Compound Fertilizer Double Roller Granulator.
Screener machine:The rotary screening machine is a new type of self-cleaning screen special equipment after the electric vibrating screener and the ordinary network type roller screen produced by the domestic companies.It is widely applicable to sieving of various solid materials with particle size less than 300mm.It has many characteristics such as high screening efficiency,low noise,small amount of dust,long service life,less maintenance,and its screening capacity is 1t/h-20t/h.
Packing machine：This packing scale is designed for quantitative packaging, It adopts the integrated structure, and has the characteristics of low scale height, compact structure, high efficiency, novel appearance, easy installation and convenient maintenance. The quantitative precision of the system is 2%.
