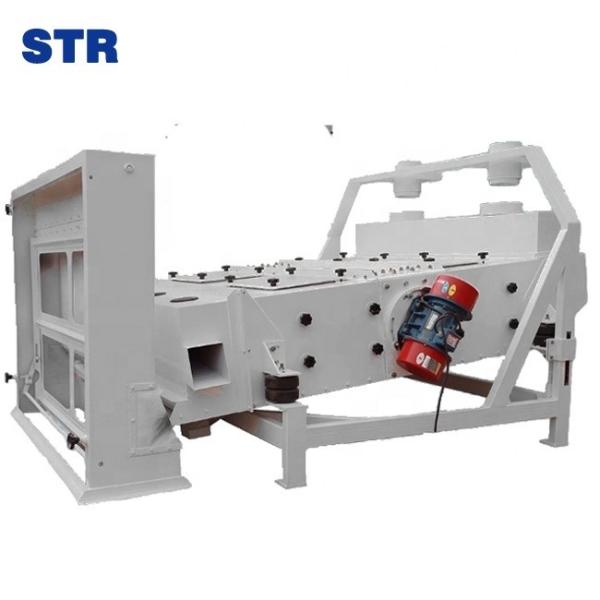

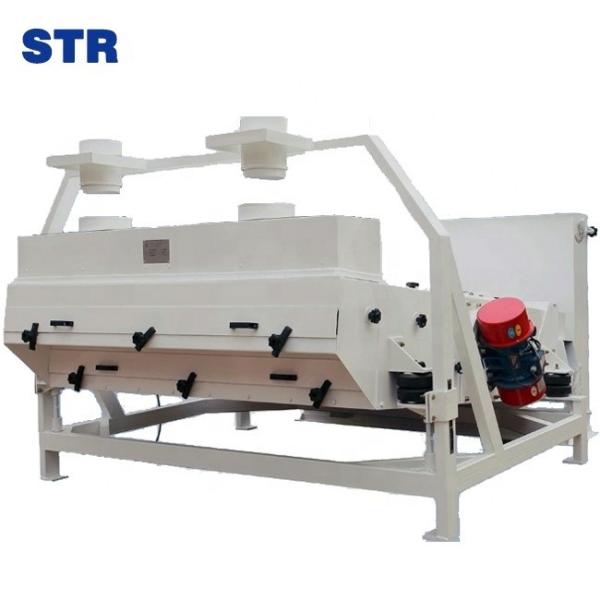

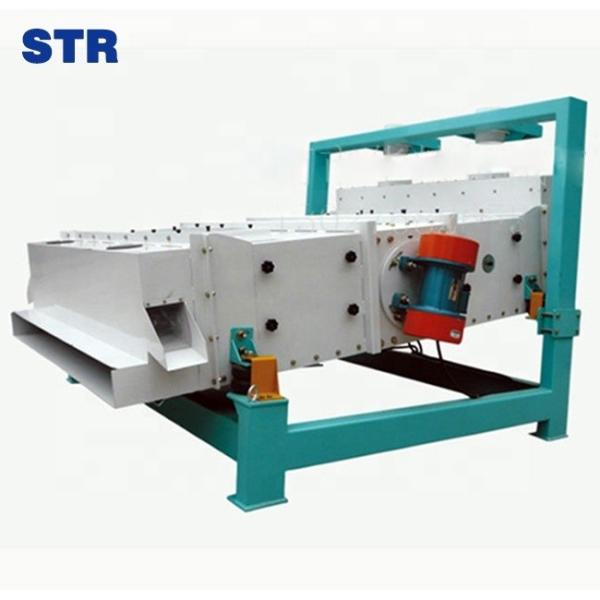

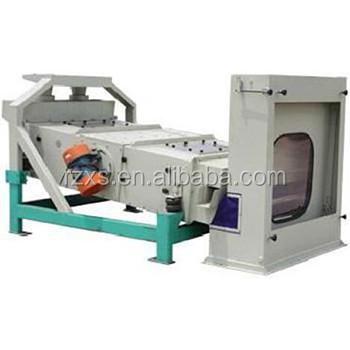

China cheapest TQLZ150 seed paddy rice mill vibrating cleaning machine 3 screen grain cleaner

The seed paddy cleaning machine is used to remove the big, middle, small and light impurities from grain.

1.Using vibration motor as vibration source, the vibration force , direction and screen frame angle can adjusted.And the operation is stable and with high reliability, perfect cleaning effect, high efficient production

2.The whole rice mill vibrating cleaner is sealed to prevent dust spill thus protect working environment.

3.With compact structure, low noise level, low power consumption

4.The screen can be drawn out for fast replace and maintenance.

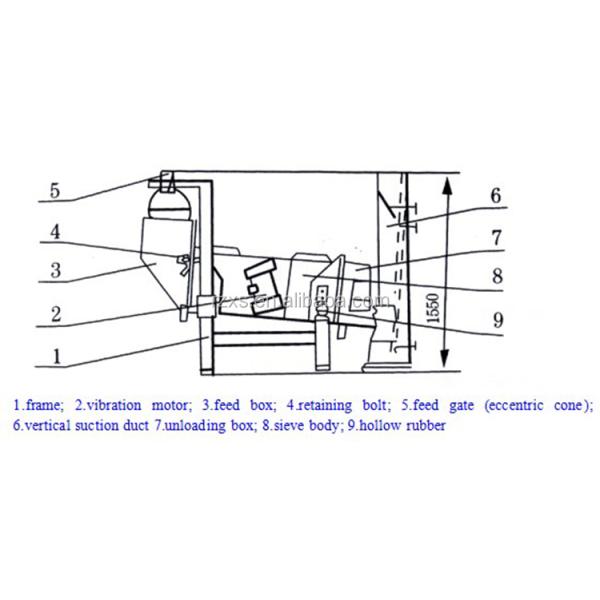

TQLZ series rice mill vibrating cleaner uses vibration motor to generate force.The high frequency and low amplitude excitation force drives the sieve body to do reciprocating movement.This makes the particles with different sizes separated by going through different shapes and sizes of sieve meshes.For the screen surface,there are two types: punching plate and weaving screen.For punching plate,there are mainly three kinds of holes:round hole, long hole, triangular hole, etc.Users can choose the hole type according to their requirement.

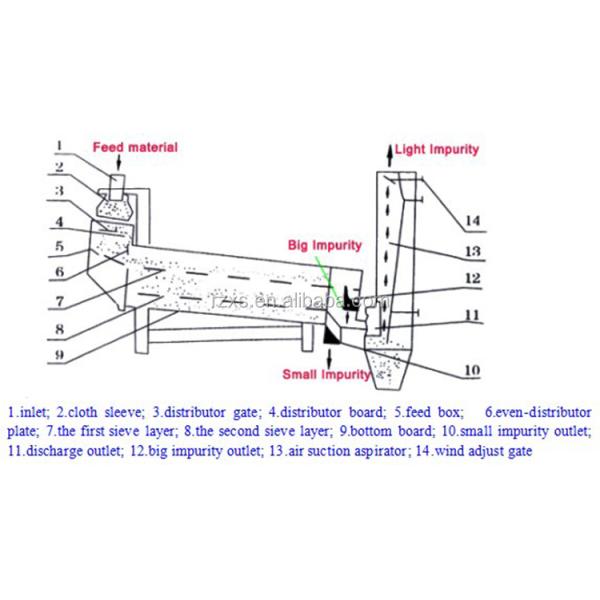

The process flow of seed paddy cleaning machine is shown in the figure below: Material flows into the feed box 5 from inlet 1 through the cloth sleeve 2,then go by the distributor gate 3 and distributor board 4, evenly distributed along the screen width. The material thickness can be controlled by adjusting the even-distributor plate 6. After entering the first layer of sieve, the material on the sieve discharges from big impurity outlet 12, the material under the sieve falls to the second layer of sieve,and continue to be cleaned.Clean rice,wheat or other material on the second layer flows from outlet 11 into air suction aspirator 13 to remove light impurity.Materials under the second layer drops directly onto the bottom board 9 and discharges from the outlet 10 of small impurity.

Established in 1937, our company has grown into China's oldest and most professional rice mill machines manufacturer.Nearly 2000 staffs work here.

We specialized in manufacturing all kinds of rice mill machines such as N series jet rice mill machine;SN,SN-A,SN-B series of double blower rice mill machine;LNT,LNT-X series of combined rice mill machine;MCHJ series of rice mill plant;LM24-2C,LJ-25 type rice huller;FT series of suction elevator;DT series elevator;combined cleaning and de-stoner,and so on.

Our brand products are Province Inspection Exemption Product.

Three "Best" is the core of our company:

1.Best Quality:with 82 years of experience

2.Best Price:This is due to mass production

3.Best Service:This is realized by dozens of years experience of our engineers.

Q1:How do you ensure the quality of your machines?

A1:Most of our QC workers have more than 20 years experience.All machines are tested before leaving the factory.

Q2:What if you lie to our money?

A2:If you worry,we can offer APG (Advanced Payment Guarantee).Bank of China will inform you that we are ready for APG first,then you make payment.Bank of China will provide APG once they get your money.

Q3:How about the installation and training of our workers?

A3:We will send engineers to your place before installation.

Q4:What is your leading time and delivering time?

A4:Normally it is 25 working days.In busy season,it will be longer.We will let you know the exact delivering date when contract.

Q5:What size of workshop we should build?How many land do we need?

A5:Once you confirm the machine model you will need,our engineers will design the drawing for you accordingly.

Q6:What is your warranty?

A6:It is at least 12 months or longer.

Q7:Can we put our machines bought from other suppliers in your container?

A7:Sure,Just let your supplier send the machines to our factory in advance.
