OEM Plastic Waste Recycling Plant PP PE Film Ldpe Washing Plant Crusher Line
OEM Plastic Waste Recycling Plant PP PE Film Ldpe Washing Plant Crusher Line
OEM Plastic Waste Recycling Plant PP PE Film Ldpe Washing Plant Crusher Line
OEM Plastic Waste Recycling Plant PP PE Film Ldpe Washing Plant Crusher Line
Specifications
Brand Name :
TONTEN
Model Number :
TP-500
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30 units/month
Delivery Time :
5-7 work days
Packaging Details :
Wooden box
Material :
Bottles, films, containers, plastic bags, etc.
Crushing capacity :
1-10mm
Cleaning :
Automatic cleaning
Dehydration effect :
≤2%
Processing :
500-3000kg/h
Power consumption :
Less than 2 kWh/ton(plastic)
Water consumption :
Less than 300kg/t(plastic)
degree of automation :
Fully automatic
Description

Plastic Recycling Machine PP PE Film Washing Crusher Line For Recycling

Plastic PP PE recycling machine introduction:

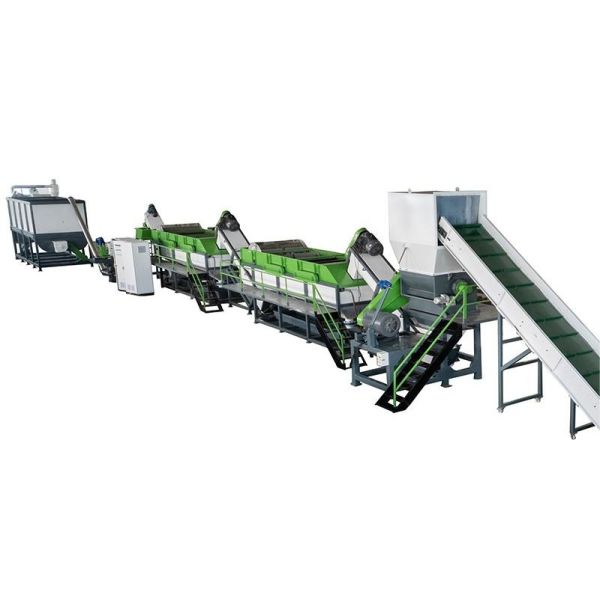

The complete set of equipment for PET PP PE plastic beverage bottle crushing, cleaning and recycling production line mainly includes: unpacking machine, conveyor belt, label remover, sorting table, crusher, hot water steam washing kettle, spiral elevator, friction cleaning machine, rinsing machine, centrifugal dehydrator, pipeline drying system, cyclone silo, electric control cabinet, etc.

Main equipment and features:
1. According to the different states of plastic bottles (flattened or not flattened), different label removers are matched to achieve a higher label removal rate. The whole machine adopts wear-resistant blades with longer life, and adopts suction label separator.
2. The crusher adopts an integrated molding machine cavity and a through-installation method, which can make the main shaft evenly stressed. The knife holder adopts 4 sets of moving knives, which has very good crushing efficiency especially for pressed bottles.
3. According to the different processing volume, hot washing tanks or hotter washing tanks can be selected, and steam cleaning can be matched to effectively improve the quality of washed bottle flakes and save energy. Equipped with automatic control of temperature, pressure and liquid level gauges to control product quality well.
4. The matching label paper air separation machine can effectively separate impurities and PVC label paper from bottle flakes. After careful separation, the grade of bottle flakes is improved and the added value is increased.

Plastic recycling machine attributes:

Input Material Type

Can process various plastic packaging waste, such as bottles, films, containers, plastic bags, etc.

Shredding Capability

Powerful shredding capability to crush plastic products into 1-10 mm particles.

Washing Function

Automatic washing function to remove oil stains, labels and other impurities from the plastic surface.

Dewatering Effect

Equipped with an efficient spin-drying mechanism to quickly dewater the washed plastic particles to a moisture content below 2%.

Production Capacity

Processing capacity generally ranges from 500-3000 kg/hour, can be selected according to actual needs.

Energy Consumption

Adopts energy-efficient and environmentally friendly design, with power consumption less than 2 kWh/ton and water consumption less than 1.5 tons/ton.

Automation Level

The equipment has a fully automatic operation mode, without the need for manual intervention, to achieve continuous production.

Safety

The equipment is equipped with comprehensive safety protection devices to ensure the safe and reliable operation of the process.
