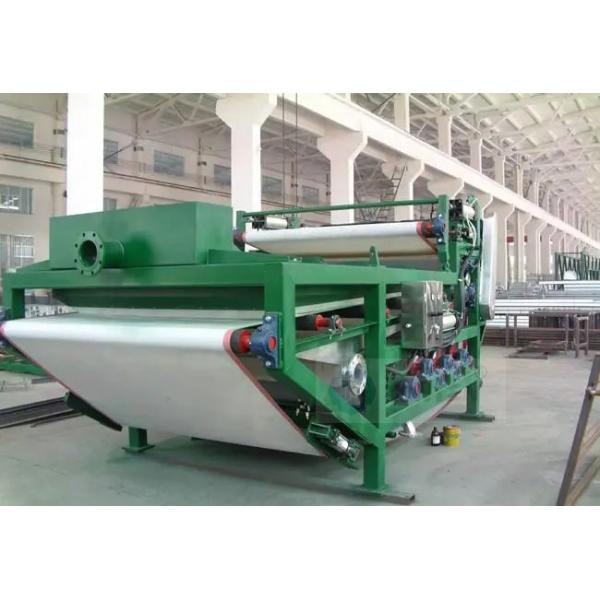

Sludge Dewatering Belt Filter Press Machine Concentration Filter Press

Introduction to the structural characteristics of belt filter press:
1. The pressing system of the belt filter press is mainly composed of filter belts, filter plates, pressing rollers, etc. The filter belts and filter plates are arranged alternately to form a filter chamber, sewage flows through the filter chamber, and solid particles are trapped in the filter chamber. The pressing roller squeezes out the water in the filter cake by applying pressure to achieve the effect of sludge dehydration.
2. The conveying system of the belt filter press is mainly composed of conveyor belts, rollers, tensioning devices, etc. The conveyor belt is supported by rollers and maintains a certain tension under the action of the tensioning device. The conveying system has the characteristics of high load-bearing capacity, high stability and long life
3. The transmission system of the belt filter press is mainly composed of motors, reducers, drive shafts and conveyor belts. The motor drives the reducer and transmits power to the conveyor belt through the drive shaft, so that the conveyor belt runs at the set speed. The transmission system has the characteristics of high precision, high stability and high efficiency, which can ensure the normal operation of the equipment and extend its service life.
4. The control system has the characteristics of high automation, simple operation and high reliability. The working parameters and operating status of the equipment can be set through the touch screen.

Advantages:
1. After each working cycle, both sides can be sprayed and washed, so the filter cloth regeneration effect of the filter press is good, which not only extends the service life of the filter cloth, but also improves the production capacity of the equipment
2. According to the requirements of the vacuum degree of the filtration, washing and drying areas, different vacuum degrees can be provided in different areas to increase the filtration and washing rates and reduce the moisture content of the filter cake.
3. The narrow and long filter surface can conveniently adjust the length distribution of the filtration area, washing area and drying area to achieve optimized operation of the process

Model specification:

Belt filter press photography:

,
