Jaw Crusher Machine Sand And Gravel Production Chemical Industry New Pattern

Product Introduction

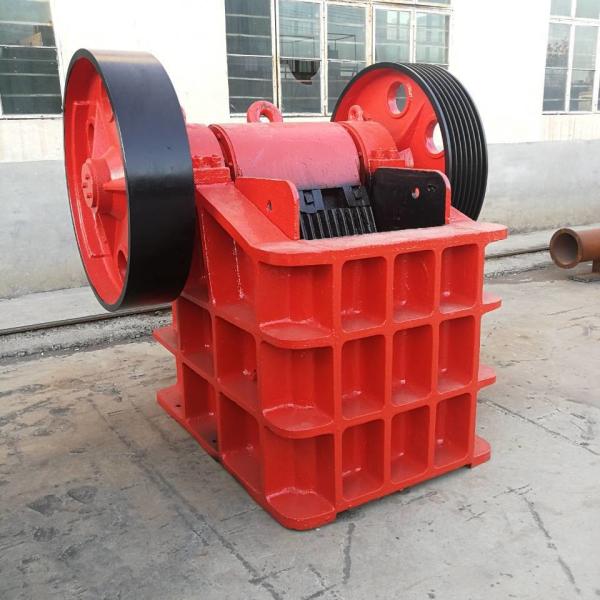

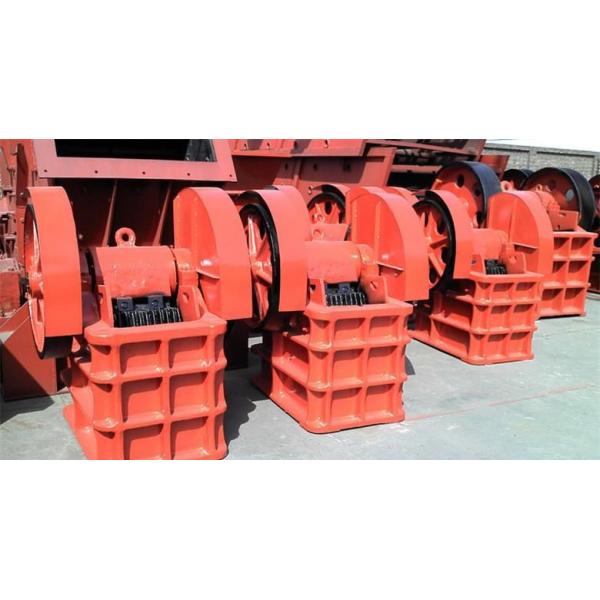

The jaw crusher is commonly known as Ebo or Tiger Mouth. It is a crusher composed of two jaw plates, a moving jaw and a stationary jaw, which simulate the movement of animals and complete material crushing operations. It is widely used in industries such as mining and smelting, building materials, highways, railways, water conservancy, and chemical engineering. Suitable for crushing various ores and bulk materials. Effectively solving the problem of high operating rate and no maintenance time caused by low output of the original limestone crusher, it can complete the crushing of large blocks of limestone.

Product Features

1. Low noise and less dust.

2. Its crushing ratio is large, and the product particle size is uniform.

3. Simple structure, reliable operation, and low operating costs.

4. The lubrication system is safe and reliable, with convenient component replacement and simple equipment maintenance.

5. The crushing chamber is deep and has no dead zone, which improves the feeding capacity and output.

6. Equipment energy-saving: Single machine energy-saving by 15% to 30%, system energy-saving by more than twice.

7. The adjustment range of the discharge port is large, which can meet the requirements of different users.

Preparation Before Use

1. The lubrication of the bearings should be carefully checked for good condition, and there should be sufficient lubricating grease at the connection of the inner bracket of the bearings.

2. All fasteners should be carefully checked for complete tightness.

3. Whether the protective devices are in good condition, any unsafe phenomena should be immediately eliminated.

4. Check if there is any ore or other debris in the crushing chamber, and if there is, it should be eliminated immediately.

Product Launch

1. Only after inspection and verification of the normal condition of the machine and transmission parts can it be started.

2. This machine can only be started without load.

3. After starting, if any abnormal situation is found, the vehicle should be stopped immediately. Only after identifying the cause and eliminating the hidden danger can it be restarted.

Maintenance And Use Of Products

1. The crusher can only be fed after normal operation.

2. The material to be crushed should be evenly added to the crushing chamber, and side feeding should be avoided to prevent sudden changes in load or unilateral increase.

3. Under normal working conditions, the temperature rise of the bearing should not exceed 35 ℃, and the maximum temperature should not exceed 70 ℃. Otherwise, it should be stopped immediately to identify the cause and eliminate it.

Product Lubrication

1. Regular attention and timely lubrication of the friction surface can ensure the normal operation of the machine and extend its service life.

2. The lubricating grease used in this machine should be determined based on the location of use, temperature, and other conditions. Generally, calcium based, sodium based, or calcium sodium based lubricating grease can be used.

3. The lubricating grease added to the bearing seat is 50-70% of its volume and must be replaced every three months; When replacing with new oil, clean gasoline or kerosene must be used to clean the dirt inside the bearings and bearing seats.

4. Before starting the machine, lubricating grease must be added to the contact area between the elbow plate and the elbow pad.
