Drum Stone Mud iron Ore Washing Machine Plant Large
Drum Stone Mud iron Ore Washing Machine Plant Large
Drum Stone Mud iron Ore Washing Machine Plant Large
Drum Stone Mud iron Ore Washing Machine Plant Large
Specifications
Brand Name :
TONTEN
Model Number :
TT-GTX1230
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
50 Sets/Month
Delivery Time :
5-7 working days
Packaging Details :
standard international export packing, container or as required
Drum Size :
1.2x3.0m
Screen Size :
≥5mm
Max Feeding Size :
120mm
name :
Drum Stone Washing Machine
Capacity :
50-70t/h
Speed :
23-25r/min
Motor :
18.5kw
Weight :
5800kg
Description

Large Drum Stone Washing Machine Mud Metal Ore Washing Equipment

Stone washing machine introduction:
Drum stone washing machine is widely used in the pre-cleaning of ore with high mud content; it can wash various large ores that are difficult to wash, and the cleaning efficiency is as high as 99%. It has the advantages of large output, low operating noise and convenient maintenance. It is used to remove impurities in the ore, including mud, sludge, organic particles and strong adhesion attachments; it can also be used for ore sorting operations.

Advantage:
1. Strong adaptability: The rotation speed, cleaning time and other parameters of the drum can be adjusted according to the cleaning requirements of different stones to meet the cleaning needs of various stones
2. The drum stone washing machine has simple structure, and the impeller drive bearing device is isolated from water and water-receiving materials, which greatly avoids the phenomenon of bearing damage caused by immersion, sand and pollutants;Effectively improve quality of ore.
3. Stone washing machine can wash large stone materials, with advanced stone washing technology, clean cleaning, water recycling and water saving.


Drum stone washing machine specification:

Model

Drum Size (m)

Screen Size (mm)

Feeding Size(mm)

Capacity (t/h)

Speed (r/min)

Motor(kw)

Weight (kg)

TT-GTX1230

1.2x3

≥5

120

50-80

23-25

18.5

5800

TT-GTX1545

1.5x4.5

≥5

150

70-120

18-23

30

7100

TT-GTX1560

1.5x6.0

≥5

150

100-130

18-22

37

8300

TT-GTX1845

1.8x4.5

≥5

180

90-130

20-21

45

11800

TT-GTX1860

1.8x6.0

≥5

180

100-150

20-21

45

12500

TT-GTX2060

2.0x6.0

≥5

200

120-160

19-20

52

13600

TT-GTX2265

2.2x6.5

≥5

220

160-200

19-20

55

15600

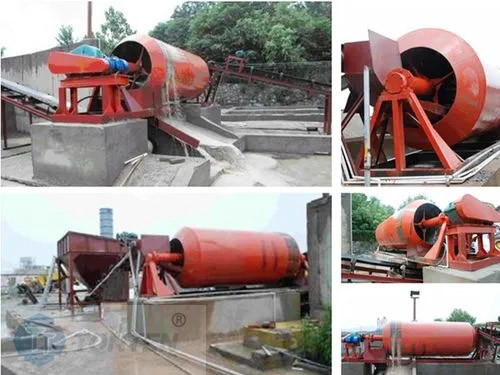

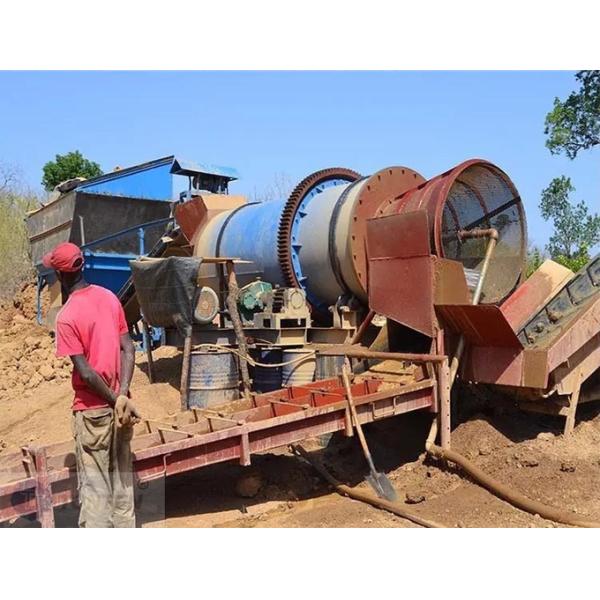

Customer site:

Drum Stone Mud iron Ore Washing Machine Plant Large
Drum Stone Mud iron Ore Washing Machine Plant Large
