900x1800 Ball Mill Grinding Machine Gold Mining Ore Rock Ball Mill

Product introduction:
TONTEN Ball mill is mainly used for mixing and grinding materials, making the product fineness uniform and saving energy. It can be dry-milled or wet-milled. Ball mill can use different lining types according to production needs to meet different needs. The fineness of the grinding operation is controlled by the grinding time. It is suitable for applications in hydropower, building materials, highways, urban construction and other industries.

Working principle:

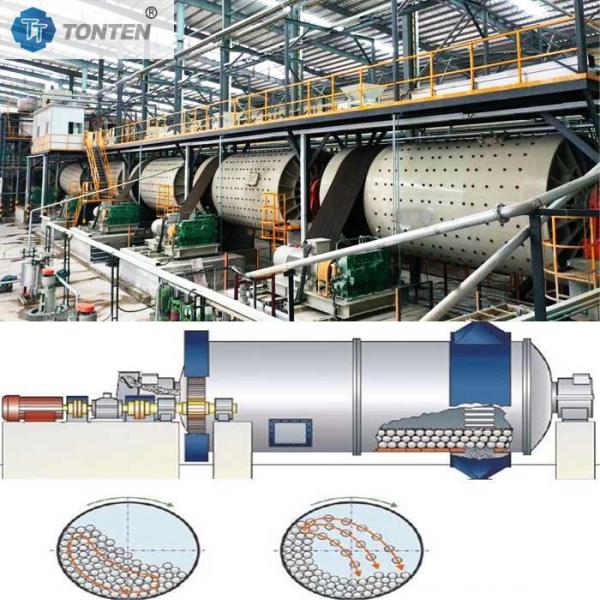

The ball mill is a horizontal cylindrical rotating device, which consists of a feeding part, a discharging part, a rotating part, a transmission part, a reducer, a small transmission gear, a motor, an electronic control and other main parts. It is a two-bin, grid-type ball mill with an outer gear transmission. When the ball mill is working, the torque is transmitted to the large and small gears of the ball mill through the motor and the reducer to rotate the cylinder of the ball mill. The material is fed from the feeding end of the cylinder. In the cylinder, the material is crushed due to the impact and self-grinding of the steel balls and the ore itself. Due to the continuous feeding of materials, the pressure causes the material in the cylinder to move from the feeding end to the discharging end. The material that reaches the finished particle size is discharged from the discharging end of the cylinder. During wet grinding, the material is carried out by the water flow; during dry grinding, the material is carried out by the air flow. There is a discharging grid at the discharging end of the mill. The mill relies on the grid plate to force the ore to be discharged. The low slurry surface in the cylinder reduces the over-grinding of the ore and prevents the discharge of the steel balls.

Specification:
