35° - 90° Angle CVD Polycrystalline Diamond CVD Diamond Cutting Tool For Gem Making
35° - 90° Angle CVD Polycrystalline Diamond CVD Diamond Cutting Tool For Gem Making
35° - 90° Angle CVD Polycrystalline Diamond CVD Diamond Cutting Tool For Gem Making
35° - 90° Angle CVD Polycrystalline Diamond CVD Diamond Cutting Tool For Gem Making
Specifications
Brand Name :
ZZDM
Model Number :
Poly-CVD
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
1pc
Price :
USD,JPY,RMB
Payment Terms :
T/T
Supply Ability :
5000pcs/month
Delivery Time :
5-8work days
Packaging Details :
Plastic Case Package
Diamond type :
Synthetic (lab created)
Material :
Carbon, Synthetic Diamond, Lab created diamond, CVD, Lab-grown
Product name :
Synthetic Diamond Lab Grown Cut Diamonds, Diamond Gemstone, diamond CVD, white rough hthp synthetic diamond, Lab Created CVD Polished Diamond
Hardness :
10 Moh's Scale
Description

CVD Diamond Cutting Tool,CVD Diamond ,CVD Polycrystalline Diamond, Lab Grown Diamond

CVD Polycrystalline Diamond

ZZDM can supply both mono crystalline and poly crystalline CVD diamond.

Our DMCVD can be divided into several grades according to different application, which are for industrial usages, for gem making and optical utility.

Properties Data
Vickers-Hardness (kg/mm²) 10,000
Density (g/cm3) 3.52
Young's Module (GPa) 1100
Thermal Conductivity (w/cm.k) 8-20
Bending Strenght (MPa) (0.5mm Thickness) 300-600
Thermal Stability 8000C
Wear Resistance Ratio (Ten Thousand) 10-85

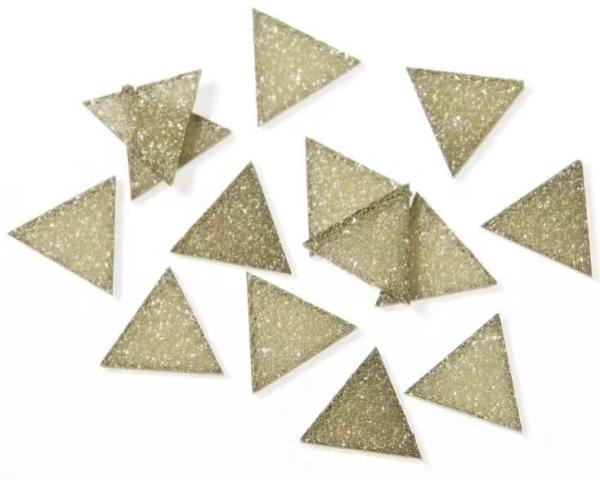

CVD Diamond Cutting Tool Blanks

Applications:

Non-ferrous metals, silicon aluminum alloy, copper and copper alloy, ceramics, plastic and rubber, glass, graphite, etc.

Tools:

Surgical knives; cutting tool inserts; drill bits; reamers etc.

ITEM CODE Angle Side Length (mm)
CVD T35-5.0 35° 5.0
CVD T60-4.0 60° 4.0
CVD T60-5.0 60° 5.0
CVD T60-7.0 60° 7.0
CVD T80-3.0 80° 3.0
CVD T80-4.0 80° 4.0
CVD T80-5.0 80° 5.0
CVD T80-7.0 80° 7.0
CVD T90-3.0 90° 3.0
CVD T90-4.0 90° 4.0
CVD T90-5.0 90° 5.0
CVD T90-7.0 90° 7.0

35° - 90° Angle CVD Polycrystalline Diamond CVD Diamond Cutting Tool For Gem Making

Non-standard dimensions are available on request.
