Outdoor Air Cooled Wall Mounted Digital Signage

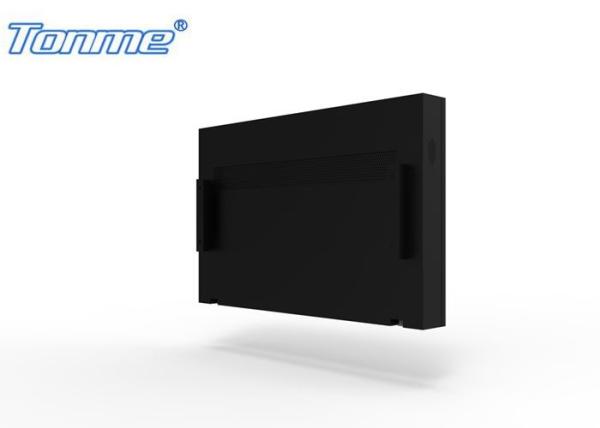

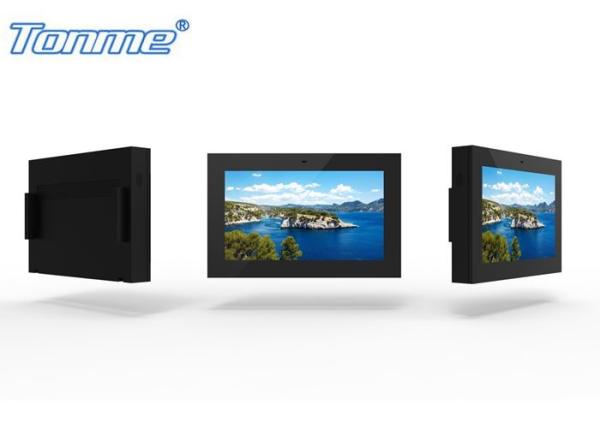

• Appearance effect picture (optional)

Wall mounted type

2. Parameters

3. Performance description

1 Structure

1.1 The shell is made of 1.5 mm galvanized steel plate, painting with special outdoor powder
1.2 Shell designed with waterproof structure, meet the IP55 protection grade
1.3 The machine screen protection glass use 6 mm anti glare AR explosion-proof glass
1.4 The whole machine adopts single door, easy to maintain internal screen, glass, heat dissipation components and electronic parts.
1.5 The whole machine adopts modular design, convenient installation and maintenance.

• The installation has been designed at the top of machine, convenient to unloading.

2 Display

2.1 43inch high brightness screen, 1500 nit brightness, design life of 50000 h.
2.2 Highlight displays screen can be viewed clearly under the sun ,visual Angle is 178 °.
2.3 Monitor configure automatic photographic system, can change display brightness according to ambient light.

• Air cooling heat dissipation

3.1 43 inch use centrifugal fan cooling system, professional special air duct heat dissipation design.
3.2 the whole machine internal and external air are in isolated state, the internal air through air conditioning circulation to keep the internal temperature control.

• the electronic

4.1 The motherboard adopt android.
4.2 The machines use industrial-grade switching power, stable and long life.
4.3 The machines have the leakage, lightning protection configuration, etc.
4.4 The machines configure the timer can be set up by the day, week, month to turn on or shutdown machine on time.
4.5 The machines configure over temperature protection, when the internal temperature is higher than 55 ℃, it will close display backlighting. Internal temperature drop to 45 ℃ recover normal working condition.
