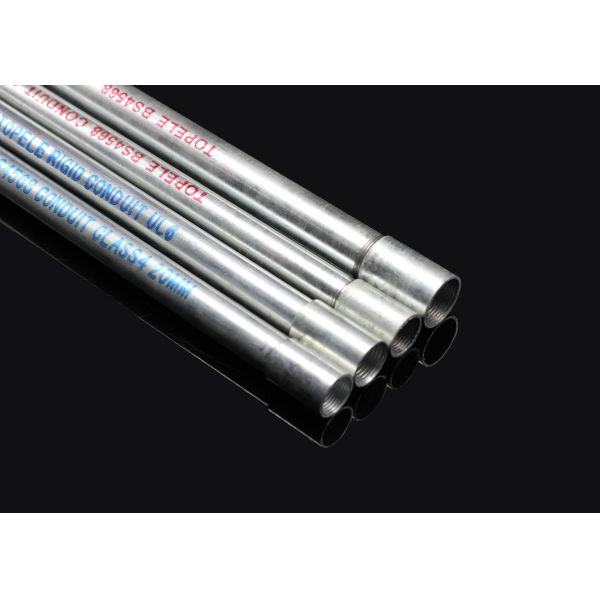

Electrical metal conduit Galvanized Steel BS4568 Tube GI Pipe


BS4568 CONDUIT with a integral coupling and a protection cap

• TOPELE BRAND BS4568 CONDUIT Protect insulated electrical conductors and cables
• Galvanized steel construction provides shielding from magnetic fields and protection from impact damage and crushing
• Electroplated couplings prevent zinc build-up
• Designed for use with threaded connections
• Brand Name: TOPELE
• Length : 3.75 meters.
• Material : Galvanized steel-class 3 / Hot-dipped Galvanized-class 4
• Size: 16mm to 32mm
• Thickness: 1.3mm---1.6mm
• Filed name: BS4568 CONDUIT,BS4568 TUBE, BS4568 PIPE, GI PIPE, GI TUBE.

Applications:

TOPELE BS4568 CONDUIT is designed to protect and route cables and conductors. It can be installed either exposed or concealed. Install it inside or outside using rain-tight fittings. This BS4568 CONDUIT is made of Pre-galvanized steel and has an organic coating inside.
BS4568 CONDUIT provides a damage-resistant duct for electrical conductors and cables. This conduit shields internal wires from magnetic fields and features electroplated couplings to resist build up of zinc on the threads.


Specifications:

Remark: different thickness is available


Advantages of using steel conduit:
• Protection against impact at all temperatures
• Deflects hand-driven nails and screws and doesn’t stretch or tear
• Highest yield and tensile strengths
• Doesn’t burn, contribute to smoke volume, emit potentially escape-inhibiting fire gases, or add to fuel load or flame spread
• Noncombustible and can be fire-stopped with common building materials
• Provides an excellent electrical path to ground, eliminating the need for supplementary equipment grounding
• Reduces EMF by up to 95% at power frequencies
• Compatible coefficient of expansion with most construction materials
• Adaptable and can easily accommodate wiring changes
• Fully recyclable
