Specifications
Place of Origin :
Zhejiang ,china
Brand Name :
TOPELE
Certification :
ISO
Model Number :
BS4568 CONDUIT
MOQ :
100PCS
Price :
negotiable
Packaging Details :
10pcs per bundles with white plastic bag
Delivery Time :
20 days for one 20ft container
Payment Terms :
T/T, L/C at sight
Supply Ability :
500 tons one month
Product Name :
BS4568 Conduit
Length :
3.75 meters
Material :
Galvanized steel-class 3 / Hot-dipped Galvanized-class 4
Size :
16mm to 32mm
Thickness :
1.3mm---1.6mm
Description


20mm , 25mm Galvanized BS4568 Conduit Pipe , Steel Electrical Conduit GI Tube


Description:

BS4568 CONDUIT with a integral coupling and a protection cap

  • TOPELE BRAND BS4568 CONDUIT Protect insulated electrical conductors and cables
  • Galvanized steel construction provides shielding from magnetic fields and protection from impact damage and crushing
  • Electroplated couplings prevent zinc build-up
  • Designed for use with threaded connections
  • Brand Name: TOPELE
  • Length : 3.75 meters.
  • Material : Galvanized steel-class 3 / Hot-dipped Galvanized-class 4
  • Size: 16mm to 32mm
  • Thickness: 1.3mm---1.6mm
  • Filed name: BS4568 CONDUIT,BS4568 TUBE, BS4568 PIPE, GI PIPE, GI TUBE.



Applications:

TOPELE BS4568 CONDUIT is designed to protect and route cables and conductors. It can be installed either exposed or concealed. Install it inside or outside using rain-tight fittings. This BS4568 CONDUIT is made of Pre-galvanized steel and has an organic coating inside.
BS4568 CONDUIT provides a damage-resistant duct for electrical conductors and cables. This conduit shields internal wires from magnetic fields and features electroplated couplings to resist build up of zinc on the threads.


Specifications:

nominal diameter

external diameter

thickness of wall

length

packing

weight/unit(kg)

BS4568-1970 CONDUIT

16mm

16mm

1.6mm

3.75

10pcs/bundle

2.13

20mm

20mm

1.6mm

3.75

10pcs/bundle

2.72

25mm

25mm

1.6mm

3.75

10pcs/bundle

3.46

32mm

32mm

1.6mm

3.75

10pcs/bundle

4.50


Remark: different thickness is available

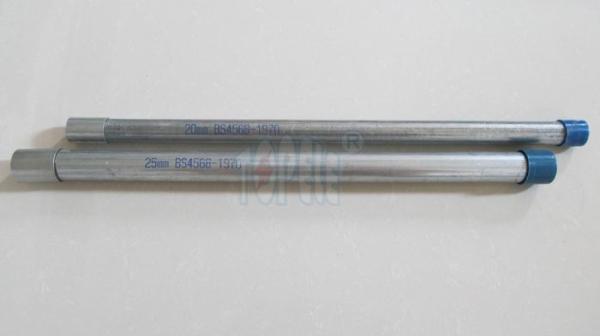

Clear printing on the conduits :
20mm , 25mm Galvanized BS4568 Conduit Pipe , Steel Electrical Conduit GI Tube
Plastic caps in different color are available
20mm , 25mm Galvanized BS4568 Conduit Pipe , Steel Electrical Conduit GI Tube
20mm , 25mm Galvanized BS4568 Conduit Pipe , Steel Electrical Conduit GI Tube
20mm , 25mm Galvanized BS4568 Conduit Pipe , Steel Electrical Conduit GI Tube
Please note the perfect loading and strong package , load as more as we can to save the sea freight for customer.


Competitive Advantage:

BS4568 CONDUIT
+Quick Delivery: 15days for one 20ft container.
+Competitive Price: As we control cost well.
+ Good Quality: ISO
+Best Service: strong package, perfect loading.quality guarntee for 1 year, no damage, no rust, no weight torlerance.
