Low-carbon Steel Flat Plate Unistrut Channel, Strut Channel Connecting Fitting with Holes
Low-carbon Steel Flat Plate Unistrut Channel, Strut Channel Connecting Fitting with Holes
Specifications
Place of Origin :
Zhejiang ,china
Brand Name :
TOPELE
Certification :
ISO
Model Number :
TP1000---TP1630
MOQ :
500PCS
Price :
negotiable
Packaging Details :
Small bag+cartons+wooden pallet
Delivery Time :
One month
Payment Terms :
TT/LC AT SIGHT
Supply Ability :
200 tons per month
Description

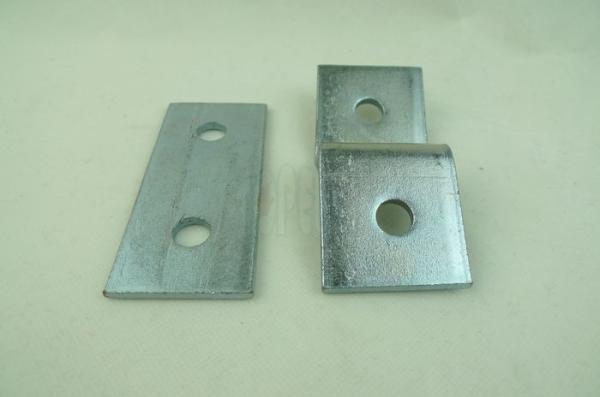

Low-carbon Steel Flat Plate Unistrut Channel, Strut Channel Connecting Fitting with Holes

Description:

The series are all manufactured from low-carbon steel with galvanized finish.
Material:carbon steel

1.Thickness is 6.35mm, hole spacing on center is 47.6mm, hole spacing from end is 20.6mm, width is 40 mm and steel grade is Q235 for all general fittings but special specification.

2.Hole diameter is 11mm for M10 fittings,13mm for M12 fittings but special specification.

3.The series are all manufacture from low-carbon steel with galvanized finish.

4.The series are also available in stainless steel. If you need special application fittings, contact us for size.

Applications:

Steel plate Fittings are mainly used to connect the strut channels on the pipe supporting Systems

Specifications:

Flat fittings, Angle Fittings, Wing Fitting, Splice Fittings, Z Fittings, U Fittings,

Post Bases and Special Application Fitting.

Competitive Advantage:

+Quick Delivery: 15days for one 20ft container.
+Competitive Price

+ Good Quality: ISO certificate approval

+Best Service: fast delivery, strong package, good price, timely and effective communication

+Powerful Solution: fast and effective solution to problem

Low-carbon Steel Flat Plate Unistrut Channel, Strut Channel Connecting Fitting with Holes

Low-carbon Steel Flat Plate Unistrut Channel, Strut Channel Connecting Fitting with Holes
