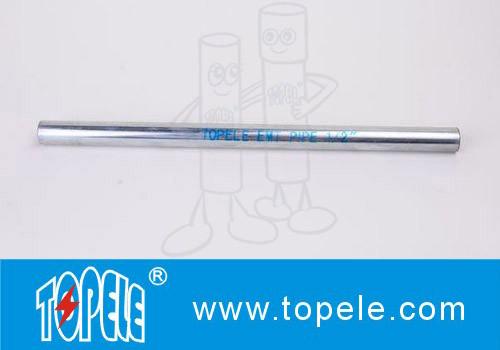

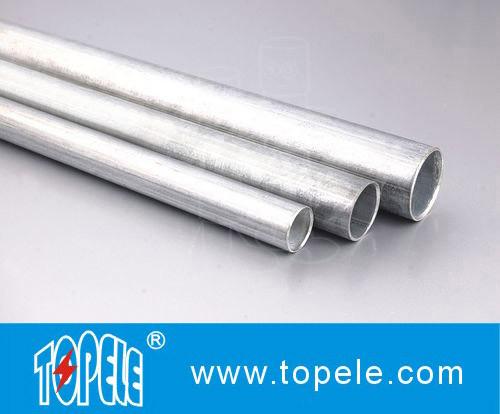

EMT Conduit And Fittings Carbon Steel Galvanised Tube , Electrical Metallic Tubing
EMT Conduit And Fittings Carbon Steel Galvanised Tube , Electrical Metallic Tubing
EMT Conduit And Fittings Carbon Steel Galvanised Tube , Electrical Metallic Tubing
EMT Conduit And Fittings Carbon Steel Galvanised Tube , Electrical Metallic Tubing
EMT Conduit And Fittings Carbon Steel Galvanised Tube , Electrical Metallic Tubing
EMT Conduit And Fittings Carbon Steel Galvanised Tube , Electrical Metallic Tubing
Specifications
Place of Origin :
Zhejiang ,china
Brand Name :
TOPELE
Certification :
ISO CERTIFICATE
Model Number :
EMT PIPE
MOQ :
100PCS
Price :
negotiable
Packaging Details :
Small bundles with white plastic bag
Delivery Time :
20 days for one 20ft container
Payment Terms :
T/T, L/C at sight
Supply Ability :
500 tons one month
Material :
Q195 steel
surface treatment :
pre-galvanized / hot dip galvanized
size :
1/2“- 4“
standard :
ANSI C80.3
type :
welded
package :
10-50 pcs/ bundle
Description

EMT Conduit And Fittings Carbon Steel Galvanized Tube , Electrical Metallic Tubing

Description:

Electrical metallic tubing (EMT), sometimes called thin-wall, is commonly used instead of galvanized rigid conduit (GRC), as it is less costly and lighter than GRC.

Tade Size : from 1/2” to 2”

Length: 3050mm or according to customer’s requirement

Surface finished: Pre-Galvanized or Hot dip galvanized(HDG).

Material : carbon steel coil

Package: emt conduits tied into small bundles with steel straps, then covers with white plastic bag.

Brand: TOPELE

Market: USA, Panama, Peru, Venezuela, Iraq, Ecuador,Colombia.

Applications:

The EMT pipe is designed to protect and route cables and conductors. It can be installed either exposed or concealed. Install it inside or outside using rain-tight fittings. This EMT pipe is made of an unthreaded galvanized steel and has an organic coating inside.

An unthreaded thin-wall raceway of circular cross-section designed for the phycical protection and routing of conductors and enables for use as an equipment grounding conductor when installed utilizing appropriate fitting.

Specifications:

nominal diameter

external diameter

thickness of wall

length

packing

weight/unit(kg)

EMT Tube - thin wall thickness pipe

　

　

　

1/2"

17.93mm

0.85mm

3.05m

20pcs/bundle

1.092

3/4"

23.42mm

1mm

3.05m

15pcs/bundle

1.686

1"

29.54mm

1.1mm

3.05m

10pcs/bundle

2.353

1-1/4"

38.35mm

1.30mm

3.05m

5pcs/bundle

3.623

1-1/2"

44.2mm

1.30mm

3.05m

5pcs/bundle

4.195

2"

55.8mm

1.40mm

3.05m

5pcs/bundle

5.728

Competitive Advantage:

+Quick Delivery: 15days for one 20ft container. Our located in hangzhou, which is close to ningbo port and near to shanghai port, it is good for shipping and with cheap shipping cost.
+Competitive Price: as we control cost well.

+ Good Quality: ISO certificate approval

+Best Service: gurantee the quality for 1 year, no allowance in the weight.

EMT Conduit And Fittings Carbon Steel Galvanised Tube , Electrical Metallic Tubing

EMT Conduit And Fittings Carbon Steel Galvanised Tube , Electrical Metallic Tubing
