Carbon Steel Galvanized EMT Conduit And Fittings 3 Inch EMT Accessories
Carbon Steel Galvanized EMT Conduit And Fittings 3 Inch EMT Accessories
Carbon Steel Galvanized EMT Conduit And Fittings 3 Inch EMT Accessories
Carbon Steel Galvanized EMT Conduit And Fittings 3 Inch EMT Accessories
Carbon Steel Galvanized EMT Conduit And Fittings 3 Inch EMT Accessories
Carbon Steel Galvanized EMT Conduit And Fittings 3 Inch EMT Accessories
Specifications
Place of Origin :
Zhejiang ,china
Brand Name :
TOPELE
Certification :
ISO CERTIFICATE
Model Number :
EMT PIPE
MOQ :
100PCS
Price :
negotiable
Packaging Details :
Small bundles with white plastic bag
Delivery Time :
20 days for one 20ft container
Payment Terms :
T/T, L/C at sight
Supply Ability :
200 tons one month
Product Name :
EMT Conduit Fittings
Material :
Carbon Steel Coil
Usage :
Electrical Raceway
Type :
Unthreaded
Size :
0.5 Inch-4 Inch
Length :
3050mm (10 feet) or according to customer’s requirement
Description

Carbon Steel Galvanized EMT Conduit And Fittings 3 Inch EMT Accessories

Description:

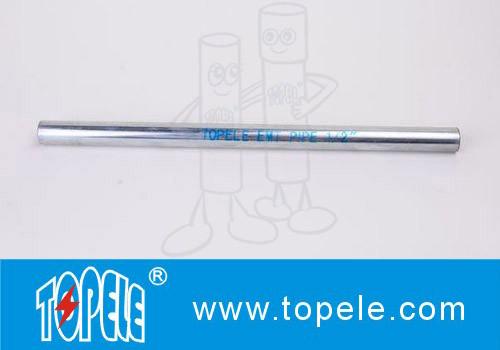

1.Product Name : EMT Pipe

2.Standard: ANSI C80.3

3.Tade Size : From 1/2” to 4”

4.Length: 3050mm (10 feet) or according to customer’s requirement

5.Usage: EMT conduit pass through the electrical wires with the purpose of protection for the electrical raceway system
6.Surface Finished: Pre-Galvanized or Hot dip galvanized(HDG).
7.Material : Carbon Steel Coil

8.Package: EMT conduits tied into small bundles with steel straps, then covers with white plastic bag.

Applications:

This 1/2 in. x 10 ft. EMT pipe is designed to protect and route cables and conductors. It can be installed either exposed or concealed. Install it inside or outside using rain-tight fittings. This EMT pipe is made of an unthreaded galvanized steel and has an organic coating inside.

An un threaded thin-wall raceway of circular cross-section designed for the phycical protection and routing of conductors and enables for use as an equipment grounding conductor when installed utilizing appropriate fitting.

Specifications:

Nominal diameter

External diameter

Wall Thickness

Length

Packing

Weight/Unit(kg)

1. EMT Tube(Electrical metallic tubing) standard pipe

　

　

1/2"

17.93mm

1.07mm

3.05m

20pcs/bundle

1.36

3/4"

23.42mm

1.24mm

3.05m

15pcs/bundle

2.07

1"

29.54mm

1.45mm

3.05m

10pcs/bundle

3.06

1-1/4"

38.35mm

1.60mm

3.05m

5pcs/bundle

4.56

1-1/2"

44.2mm

1.65mm

3.05m

5pcs/bundle

5.28

2"

55.8mm

1.65mm

3.05m

5pcs/bundle

6.78

2-1/2"

73.03mm

1.83mm

3.05m

1pcs/bundle

9.8

3"

88.9mm

1.83mm

3.05m

1pc

11.98

3-1/2"

101.6mm

2.11mm

3.05m

1pc

15.79

4"

114.3mm

2.11mm

3.05m

1pc

17.8

Nominal diameter

External diameter

Thickness of wall

Length

Packing

Weight/Unit(kg)

EMT Tube - thin wall thickness pipe

　

　

　

1/2"

17.93mm

0.85mm

3.05m

20pcs/bundle

1.092

3/4"

23.42mm

1mm

3.05m

15pcs/bundle

1.499

1"

29.54mm

1.1mm

3.05m

10pcs/bundle

2.353

1-1/4"

38.35mm

1.30mm

3.05m

5pcs/bundle

3.623

1-1/2"

44.2mm

1.30mm

3.05m

5pcs/bundle

4.195

2"

55.8mm

1.40mm

3.05m

5pcs/bundle

5.728

Competitive Advantage:

+Quick Delivery: 15days for one 20ft container.
+Competitive Price

+ Good Quality: ISO certificate approval

+Best Service: fast delivery, strong package, good price, timely and effective communication

+Powerful Solution: fast and effective solution to problem
