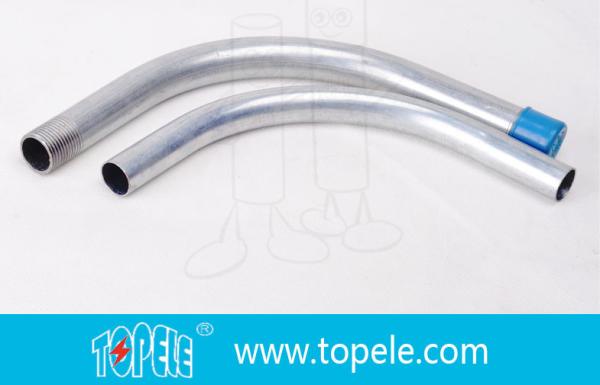

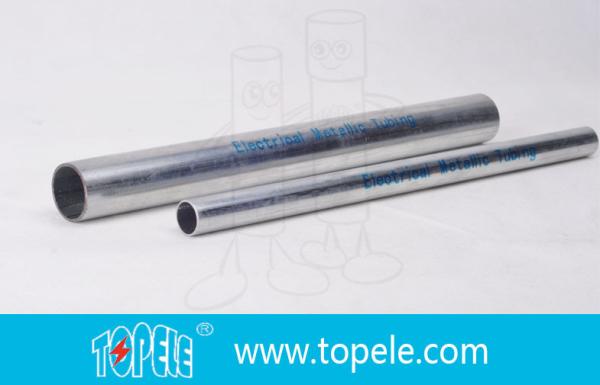

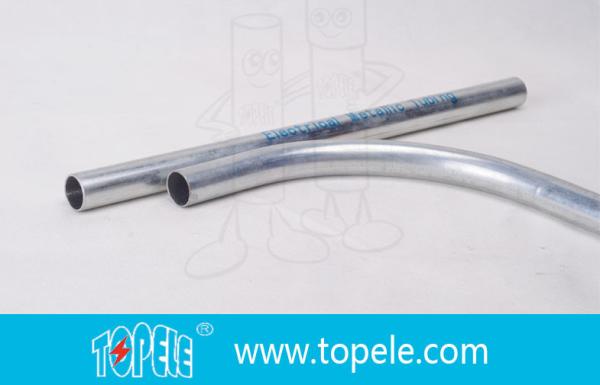

Galvanized Steel EMT Tube / EMT Conduit And Fittings From 1 / 2” to 4”
Galvanized Steel EMT Tube / EMT Conduit And Fittings From 1 / 2” to 4”
Galvanized Steel EMT Tube / EMT Conduit And Fittings From 1 / 2” to 4”
Galvanized Steel EMT Tube / EMT Conduit And Fittings From 1 / 2” to 4”
Galvanized Steel EMT Tube / EMT Conduit And Fittings From 1 / 2” to 4”
Galvanized Steel EMT Tube / EMT Conduit And Fittings From 1 / 2” to 4”
Specifications
Place of Origin :
Zhejiang, china
Brand Name :
TOPELE
Certification :
ISO
Model Number :
EMT PIPE
MOQ :
100PCS
Price :
negotiable
Packaging Details :
Small bundles with white plastic bag
Delivery Time :
20 days for one 20ft container
Payment Terms :
T/T, L/C at sight
Supply Ability :
200 tons one month
Standard :
ANSI C80.3
Tade Size :
1/2” to 4”
Material :
STEEL Q195
Product Name :
EMT Conduit Fittings
Length :
3.05meters,or according to customer’s requirement
Description

Galvanized Steel EMT Tube / EMT Conduit And Fittings From 1 / 2” to 4”

Descrition:

1.product name : EMT Tube/EMT PIPE/EMT CONDUIT/EMT TUBO ANSI C80.3

2.Standard: ANSI C80.3

3.Tade Size : from 1/2” to 4”

4.Length: 3.05meters, or according to customer’s requirement

5.Usage: emt conduit pass through the electrical wires with the purpose of protection for the electrical

raceway system
6.Surface finished: Pre-Galvanized or Hot dip galvanized(HDG).
7.Material : STEEL Q195

8.Package: emt conduits tied into small bundles with steel straps, then covers with white plastic bag.

Applications:

EMT Tube/EMT PIPE/EMT CONDUIT/EMT TUBO

This 1/2 in. x 10 ft. EMT pipe is designed to protect and route cables and conductors. It can be installed

either exposed or concealed. Install it inside or outside using rain-tight fittings. This EMT pipe is made of

an unthreaded galvanized steel and has an organic coating inside.

An unthreaded thin-wall raceway of circular cross-section designed for the phycical protection and routing of conductors and enables for use as an equipment

grounding conductor when installed utilizing appropriate fitting.

Specifications:

nominal diameter

external diameter

Wall Thickness

length

packing

weight/unit(kg)

1. EMT Tube(Electrical metallic tubing) standard pipe

　

　

1/2"

17.93mm

1.07mm

3.05m

20pcs/bundle

1.36

3/4"

23.42mm

1.24mm

3.05m

15pcs/bundle

2.07

1"

29.54mm

1.45mm

3.05m

10pcs/bundle

3.06

1-1/4"

38.35mm

1.60mm

3.05m

5pcs/bundle

4.56

1-1/2"

44.2mm

1.65mm

3.05m

5pcs/bundle

5.28

2"

55.8mm

1.65mm

3.05m

5pcs/bundle

6.78

2-1/2"

73.03mm

1.83mm

3.05m

1pcs/bundle

9.8

3"

88.9mm

1.83mm

3.05m

1pc

11.98

3-1/2"

101.6mm

2.11mm

3.05m

1pc

15.79

4"

114.3mm

2.11mm

3.05m

1pc

17.8

nominal diameter

external diameter

thickness of wall

length

packing

weight/unit(kg)

EMT Tube - thin wall thickness pipe

　

　

　

1/2"

17.93mm

0.85mm

3.05m

20pcs/bundle

1.092

3/4"

23.42mm

1mm

3.05m

15pcs/bundle

1.499

1"

29.54mm

1.1mm

3.05m

10pcs/bundle

2.353

1-1/4"

38.35mm

1.30mm

3.05m

5pcs/bundle

3.623

1-1/2"

44.2mm

1.30mm

3.05m

5pcs/bundle

4.195

2"

55.8mm

1.40mm

3.05m

5pcs/bundle

5.728

Competitive Advantage:

EMT Tube/EMT PIPE/EMT CONDUIT/EMT TUBO

+Quick Delivery: 15days for one 20ft container.
+Competitive Price

+ Good Quality: ISO certificate approval+Best Service: fast delivery, strong package, good price, timely

and effective communication

+Powerful Solution: fast and effective solution to problem

Galvanized Steel EMT Tube / EMT Conduit And Fittings From 1 / 2” to 4”

Galvanized Steel EMT Tube / EMT Conduit And Fittings From 1 / 2” to 4”
