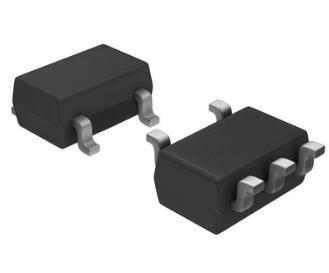

58 Pct Current Sense Amplifier IC SMD SMT Texas Instruments INA213AIRSWR
58 Pct Current Sense Amplifier IC SMD SMT Texas Instruments INA213AIRSWR
58 Pct Current Sense Amplifier IC SMD SMT Texas Instruments INA213AIRSWR
58 Pct Current Sense Amplifier IC SMD SMT Texas Instruments INA213AIRSWR
Specifications
Brand Name :
Texas Instruments
Model Number :
INA213AIRSWR
MOQ :
1 piece
Payment Terms :
T/T
Delivery Time :
2~8 workdays
Brand :
Texas Instruments
Certificate :
/
Model :
INA213AIRSWR
MOQ :
1 pc
Price :
Negotiated
Delivery :
2~8 workdays
Payment :
T/T
Description
PRODUCT DESCRIPTION
Current Sense Amplifier IC Chips Texas Instruments INA213AIRSWR

Amplifier IC Chips Texas Instruments/TI INA213AIRSWR

ECAD Module PCB Footprint and Symbol
Supply and Demand Status Balance
Fake Threat In the Open Market 58 pct.
Popularity Medium
Win Source Part Number 1045530-INA213AIRSWR
Case / Package 10-UQFN (1.8x1.4)
Mounting SMD (SMT)
Temperature Range - Operating -40°C to 125°C
Voltage - Input Offset 5μV
Current - Input Bias 28μA
Slew Rate 0.4 V/μs
Number of Circuits 1
Amplifier Type Current Sense
Status Active
Packaging Reel - TR
Manufacturer Texas Instruments
Categories Integrated Circuits
Gain Bandwidth Product (GBP) 80kHz
Operating Supply Current 65μA
Supply Voltage - Operating 2.7 V to 26 V

Features for the INA213

  • Wide Common-Mode Range: –0.3 V to 26 V
  • Offset Voltage: ±35 µV (Maximum, INA210)(Enables Shunt Drops of 10-mV Full-Scale)
  • Accuracy:
    • Gain Error (Maximum Over Temperature):
      • ±0.5% (Version C)
      • ±1% (Versions A and B)
    • 0.5-µV/°C Offset Drift (Maximum)
    • 10-ppm/°C Gain Drift (Maximum)
  • Choice of Gains:
    • INA210: 200 V/V
    • INA211: 500 V/V
    • INA212: 1000 V/V
    • INA213: 50 V/V
    • INA214: 100 V/V
    • INA215: 75 V/V
  • Quiescent Current: 100 µA (Maximum)
  • SC70 and Thin UQFN Packages: All Models

Description for the INA213

The INA21x are voltage-output, current-shunt monitors (also called current-sense amplifiers) that are commonly used for overcurrent protection, precision-current measurement for system optimization, or in closed-loop feedback circuits. This series of devices can sense drops across shunts at common-mode voltages from –0.3 V to 26 V, independent of the supply voltage. Six fixed gains are available: 50 V/V, 75 V/V, 100 V/V, 200 V/V, 500 V/V, or 1000 V/V. The low offset of the zero-drift architecture enables current sensing with maximum drops across the shunt as low as 10-mV full-scale.

These devices operate from a single 2.7-V to 26-V power supply, drawing a maximum of 100 µA of supply current. All versions are specified over the extended operating temperature range (–40°C to +125°C), and offered in SC70 and UQFN packages.
