TGWT-3K 3000W 96V/120V/220V wind turbine Three phase permanent magnet AC synchronous generator
TGWT-3K 3000W 96V/120V/220V wind turbine Three phase permanent magnet AC synchronous generator
TGWT-3K 3000W 96V/120V/220V wind turbine Three phase permanent magnet AC synchronous generator
TGWT-3K 3000W 96V/120V/220V wind turbine Three phase permanent magnet AC synchronous generator
Specifications
Place of Origin :
Hefei
Brand Name :
TGET
Model Number :
TGWT-3000
Certification :
CE
Price :
negotiated based on quantity
Packaging Details :
standard exported carton
Delivery Time :
5-10 working days
Payment Terms :
T/T in advance
Supply Ability :
2000 pcs per month
MOQ :
1 piece
Description

1. Model：TGWT-3K

2. Character

1）. Carbon steel body, compact, safe

2）. Reinforced glass fiber blades, matched with optimized aerodynamic shape and structure, which enhance the wind energy utilization and annual output.

3）. Patented permanent magnet ac generator with special stator, effectively reduce torque, well match the wind wheel and generator, and ensure the performance of whole system.

4）. Tail adopts mechanical yaw technique, making it survive storm and run safely

5）. With epoxy zinc rich primer and polyurethane anti-corrosion treatment, be ultraviolet-proof, acid rain resistant, salt resistant

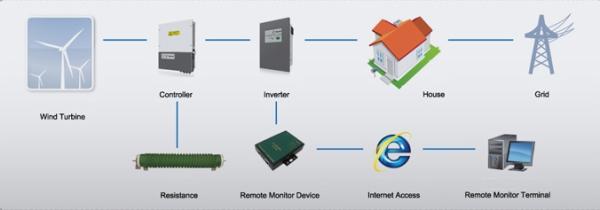

6) Controller, inverter can be matched according to customers’ specific needs

3. Power Curve

4. Performance Parameter

Model

TGWT3000

Rated power

3kW

Maximum power

4kW

Rated voltage

96/120/220v

Start-up wind speed

3m/s

Rated wind speed

10m/s

Survival wind speed

45m/s

Top net weight

205kg

Wheel diameter

5.6m

Number of blades

3

Blades material

Reinforced glass fiber

Generator type

Three phase permanent magnet AC synchronous generator

Magnet material

NdFeB

Control system

Electromagnet/wind wheel yaw

Speed regulation

Automatically adjust windward direction

Working temperature

-40°C - 80°C

Design life

20 y

Tower height (m)

9m(3m*3)
