Full Color P10 Outdoor Advertising LED Display IP65 For Fixed Installation
Full Color P10 Outdoor Advertising LED Display IP65 For Fixed Installation
Full Color P10 Outdoor Advertising LED Display IP65 For Fixed Installation
Full Color P10 Outdoor Advertising LED Display IP65 For Fixed Installation
Full Color P10 Outdoor Advertising LED Display IP65 For Fixed Installation
Full Color P10 Outdoor Advertising LED Display IP65 For Fixed Installation
Specifications
Brand Name :
TOPLED
Model Number :
P10
Certification :
CE FCC ROHS
Place of Origin :
China (Mainland)
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 Square Meter/Square Meters per Month
Delivery Time :
10-15 working days after got deposit
Packaging Details :
Fight case or Standard wooden box
Usage :
Outdoor
Pixel pitch :
P10
Cabinet size :
960*960mm
Material :
Steel/Iron
Module size :
320*160mm
Brightness :
7000nits
Fuction :
Video/Images
Waterproof Level :
IP65
Description



P10 Outdoor Full Color Advertising Led Display Screen For Fixed Installation

Specification:

Pixel Pitch 10mm
Pixel Density 10000dots/sq.m
Color Configuration 1R1G1B
LED Package SMD3535
Display Full Color

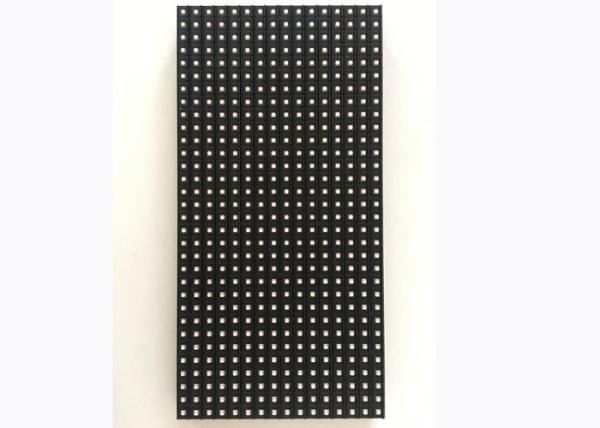

Module Size 320mm x 160mm
Module Resolution 32dots x 16dots
Drive Duty 1/2 Scan

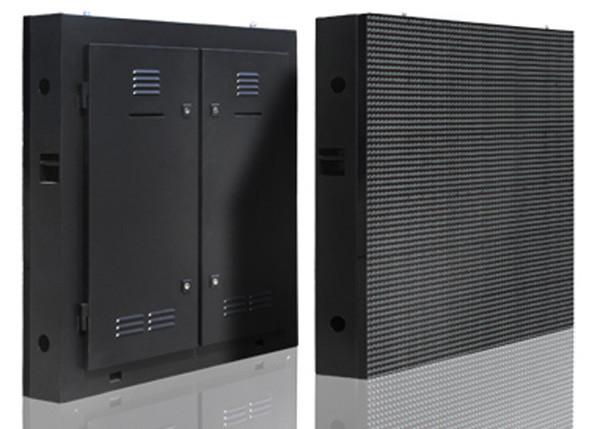

Standard Cabinet Size 960*960mm
Cabinet Weight 45kg
Led Chip Nationstar / Kinglight
Power DC 5V, AC110V-220V
Brightness ≥6500 cd/sqm
Viewing Distance 10M
Viewing Angle H: 140°; V:140°
Refresh Rate >1920HZ, adjustable by software
Power Input AC110V/ 220V ±10%, 50HZ
Max Power Consumption 800W/cabinet
Ave. Power Consumption 300W/cabinet
Temperature -40℃~+65℃
MTBF >10,000 Hours
Life Span >100,000 Hours
Waterproof Level IP65
Operating Humidity 10%~90% RH
Control Method Synchronous, Asynchronous,
Operating System Win 98, Win2000, XP, Win7, Win8
Video Signal Mode RF, S-Video, RGB, RGBHV, YUV, YC etc
Certificate CE, RoHS,ISO9001

Product Description:
Full Color P10 Outdoor Advertising LED Display IP65 For Fixed Installation

Full Color P10 Outdoor Advertising LED Display IP65 For Fixed Installation

Better Protection

The display features a Front IP66 waterproof grade which protects the display from any demage .
A dedicated guard prevents the screen from any damage and enviromental effects .
The screen will remain harmless in every condition and in every weather

High Gray Scale --Better Picture

The LED Screen is manufactured by using best quality material ,purchased from most reputed vendors .
The final products feature supreme quality and offers best outputs.High refresh rate and 16bit gray scale
ensures the picture quality remains seamless .

Full Color P10 Outdoor Advertising LED Display IP65 For Fixed Installation

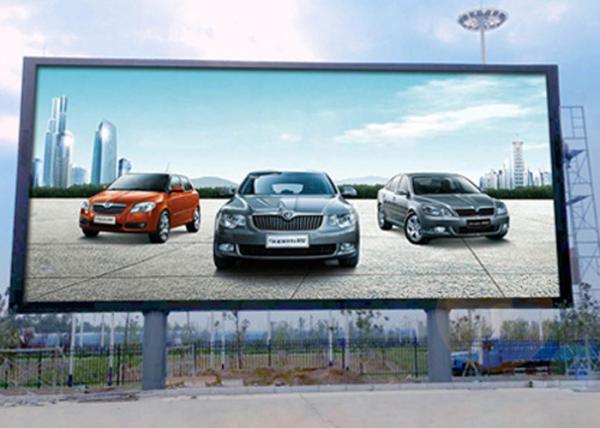

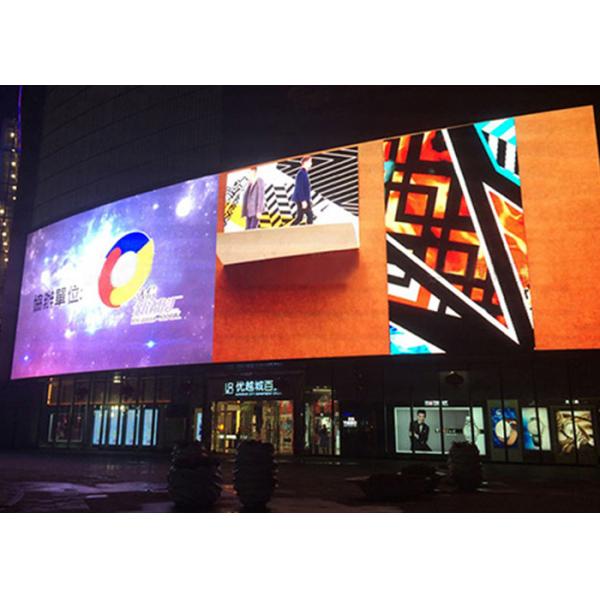

Project images:

Full Color P10 Outdoor Advertising LED Display IP65 For Fixed Installation
