Full Color P5 Outdoor Led Display , Led Outdoor Advertising Screens 1/8 Scan
Full Color P5 Outdoor Led Display , Led Outdoor Advertising Screens 1/8 Scan
Full Color P5 Outdoor Led Display , Led Outdoor Advertising Screens 1/8 Scan
Full Color P5 Outdoor Led Display , Led Outdoor Advertising Screens 1/8 Scan
Full Color P5 Outdoor Led Display , Led Outdoor Advertising Screens 1/8 Scan
Full Color P5 Outdoor Led Display , Led Outdoor Advertising Screens 1/8 Scan
Specifications
Brand Name :
TOPLED
Model Number :
P5
Certification :
CE FCC ROHS
Place of Origin :
China (Mainland)
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 Square Meter/Square Meters per Month
Delivery Time :
10-15 working days after got deposit
Packaging Details :
Fight case or Standard wooden box
Name :
P5 Outdoor SMD LED Display
Usage :
Outdoor
Pixel pitch :
5MM
Material :
Steel/Iron
Module size :
160*160mm
Brightness :
6500nits
Scan :
1/8 scan
Cabinet size :
960*960mm
Description

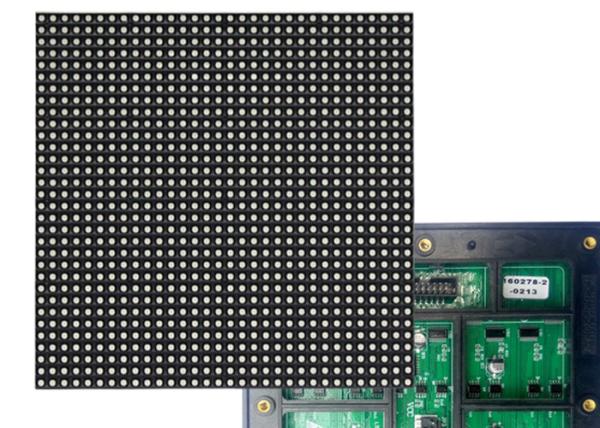

Outside P5mm Advertising LED Display Video Display SMD Pixel Density 40000​

Specification:

Pixel Pitch 5mm
Pixel Density 40000dots/sq.m
Color Configuration 1R1G1B
LED Package SMD2727
Display Full Color
Module Size 160mm x 160mm
Module Resolution 32dots x 32dots
Drive Duty 1/8 Scan
Standard Cabinet Size 960*960mm
Cabinet Weight 45kg
Led Chip Nationstar / Kinglight
Power DC 5V, AC110V-220V
Brightness ≥6500 cd/sqm
Viewing Distance 5M
Viewing Angle H: 140°; V:140°
Refresh Rate >1920HZ, adjustable by software
Power Input AC110V/ 220V ±10%, 50HZ
Max Power Consumption 900W/cabinet
Ave. Power Consumption 300W/cabinet
Temperature -40℃~+65℃
MTBF >10,000 Hours
Life Span >100,000 Hours
Waterproof Level IP65
Operating Humidity 10%~90% RH
Control Method Synchronous, Asynchronous,
Operating System Win 98, Win2000, XP, Win7, Win8
Certificate CE, RoHS,ISO9001

Product Description:

1) High reliability: using distributed scanning technology and module design technology that make higher reliability and stability.


2)Steady and reliable system:with strong anti-interference ability and long service life that can continually work for over 24 hours, and it's easy to operate the system.


3)Wide viewing angle: The horizontal and vertical viewing angles are so wide that it is suitable for wide horizon.

4) Error detection and monitoring:it can monitor the inner temperature,voltage,cooling fans etc and error detection automatically.


5) Energy saving:low electric current,high-bright lamps,equipped with PFC switching power supply that save 30%

6) Service efficiency of the screen switch power supply is increased substantially, which reduces power failure rate;

7) IP65 grade for high performance waterproof and dustproof capability;


8) -40°C – 65°Cworking environment for outdoor display, adapted to the harsh environment.

Application:

Full Color P5 Outdoor Led Display , Led Outdoor Advertising Screens 1/8 Scan
