P8 Outdoor SMD LED Display Life Span Over 100000 Hours IP65 Protective Grade
P8 Outdoor SMD LED Display Life Span Over 100000 Hours IP65 Protective Grade
Specifications
Brand Name :
TOPLED
Model Number :
P8
Certification :
CE FCC ROHS
Place of Origin :
China (Mainland)
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 Square Meter/Square Meters per Month
Delivery Time :
10-15 working days after got deposit
Packaging Details :
Fight case or Standard wooden box
Name :
P8 SMD Outdoor Waterproof Led Display With IP65 Protective Grade
Usage :
Outdoor
Pixel pitch :
8MM
Material :
Steel/Iron
Module size :
256*128mm
Brightness :
6800nits
Fuction :
Video/Images
Warranty :
2years
Description



P8 SMD Outdoor Waterproof Led Display With IP65 Protective Grade

Specification:

Pixel Pitch 8mm
Pixel Density 15625dots/sq.m
Color Configuration 1R1G1B
LED Package SMD3535
Display Full Color
Module Size 256mm x 128mm
Module Resolution 32dots x 16dots
Drive Duty 1/4 Scan
Standard Cabinet Size 1024*1024mm
Cabinet Weight 45kg
Led Chip Nationstar / Kinglight
Power DC 5V, AC110V-220V
Brightness ≥6800 cd/sqm
Viewing Distance 8M
Viewing Angle H: 140°; V:140°
Refresh Rate >1920HZ, adjustable by software
Power Input AC110V/ 220V ±10%, 50HZ
Max Power Consumption 800W/cabinet
Ave. Power Consumption 280W/cabinet
Temperature -40℃~+65℃
MTBF >10,000 Hours
Life Span >100,000 Hours
Waterproof Level IP65
Operating Humidity 10%~90% RH
Control Method Synchronous, Asynchronous,
Operating System Win 98, Win2000, XP, Win7, Win8
Video Signal Mode RF, S-Video, RGB, RGBHV, YUV, YC etc
Certificate CE, RoHS,ISO9001

Product Description:

P8 Outdoor SMD LED Display Life Span Over 100000 Hours IP65 Protective Grade

High brightness digital advertising panel

The full waterproof modules are of high reliable performance and capable to sink into water directly that delivers high-resolution images with unequalled brightness and contrast levels. Available in various pixel pitches, they generate the perfect picture at all times, even in direct sunlight.

High reliability

With front and rear waterproof design, module is completely capable to sink into water directly,

excellent performance for outdoor application separately.

Outdoor installation without any enclosure

High efficient front & rear maintenance Unique design for easy to take out the Module,

receiving card, power supply to increase efficiency.

Applications:

Widely used for outdoor commercial advertising, stage rental, traffic advertising, mobile truck

advertising, sports stadium advertising etc.

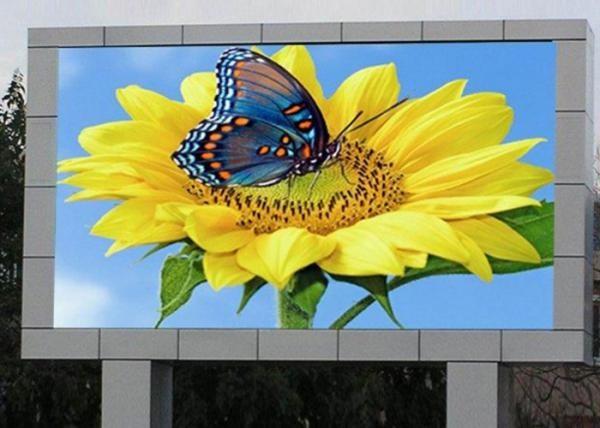

Images:

P8 Outdoor SMD LED Display Life Span Over 100000 Hours IP65 Protective Grade
