Pixel Pitch 10mm Outdoor Programmable Led Signs 7000 Nits High Brightness
Pixel Pitch 10mm Outdoor Programmable Led Signs 7000 Nits High Brightness
Pixel Pitch 10mm Outdoor Programmable Led Signs 7000 Nits High Brightness
Pixel Pitch 10mm Outdoor Programmable Led Signs 7000 Nits High Brightness
Pixel Pitch 10mm Outdoor Programmable Led Signs 7000 Nits High Brightness
Pixel Pitch 10mm Outdoor Programmable Led Signs 7000 Nits High Brightness
Specifications
Brand Name :
TOPLED
Model Number :
P10
Certification :
CE FCC ROHS
Place of Origin :
China (Mainland)
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 Square Meter/Square Meters per Month
Delivery Time :
10-15 working days after got deposit
Packaging Details :
Fight case or Standard wooden box
Usage :
Outdoor
Pixel pitch :
P10
Cabinet size :
960*960mm
Material :
Steel/Iron
Scan :
1/2scan
Brightness :
7000nits
Fuction :
Video/Images
Waterproof Level :
IP65
Description



P10 SMD Video Waterproof Outdoor Led Display 7000 nits High Brightness IP65 Protective Grade



Specification:

Pixel Pitch 10mm
Pixel Density 10000dots/sq.m
Color Configuration 1R1G1B
LED Package SMD3535
Display Full Color

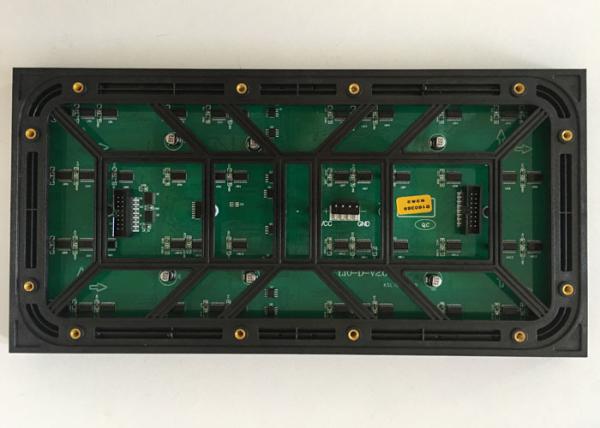

Module Size 320mm x 160mm
Module Resolution 32dots x 16dots
Drive Duty 1/2 Scan
Standard Cabinet Size 960*960mm
Cabinet Weight 45kg
Led Chip Nationstar / Kinglight
Power DC 5V, AC110V-220V
Brightness ≥6500 cd/sqm
Viewing Distance 10M
Viewing Angle H: 140°; V:140°
Refresh Rate >1920HZ, adjustable by software
Power Input AC110V/ 220V ±10%, 50HZ
Max Power Consumption 800W/cabinet
Ave. Power Consumption 300W/cabinet
Temperature -40℃~+65℃
MTBF >10,000 Hours
Life Span >100,000 Hours
Waterproof Level IP65
Operating Humidity 10%~90% RH
Control Method Synchronous, Asynchronous,
Operating System Win 98, Win2000, XP, Win7, Win8
Video Signal Mode RF, S-Video, RGB, RGBHV, YUV, YC etc
Certificate CE, RoHS,ISO9001

Product Description:

Pixel Pitch 10mm Outdoor Programmable Led Signs 7000 Nits High Brightness

High brightness digital advertising panel

The full waterproof modules are of high reliable performance and capable to sink into water directly that delivers high-resolution images with unequalled brightness and contrast levels. Available in various pixel pitches, they generate the perfect picture at all times, even in direct sunlight.

High reliability

With front and rear waterproof design, module is completely capable to sink into water directly,

excellent performance for outdoor application separately.

Outdoor installation without any enclosure

High efficient front & rear maintenance Unique design for easy to take out the Module,

receiving card, power supply to increase efficiency.

Pixel Pitch 10mm Outdoor Programmable Led Signs 7000 Nits High Brightness

Project images:

Pixel Pitch 10mm Outdoor Programmable Led Signs 7000 Nits High Brightness
