Waterproof Seamless P8 Outdoor Full Color LED Screen
Waterproof Seamless P8 Outdoor Full Color LED Screen
Specifications
Brand Name :
TOPLED
Model Number :
P8
Certification :
CE FCC ROHS
Place of Origin :
China (Mainland)
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 Square Meter/Square Meters per Month
Delivery Time :
10-15 working days after got deposit
Packaging Details :
Fight case or Standard wooden box
Name :
Waterproof Seamless P8 Outdoor Full Color LED Display Advertising Led Screen
Usage :
Outdoor
Pixel pitch :
8MM
Material :
Steel/Iron
Cabinet size :
1024*1024mm
Brightness :
6800nits
Scan :
1/4scan
Warranty :
2yars
Description



Waterproof Seamless P8 Outdoor Full Color LED Display Advertising Led Screen

Specification:

Pixel Pitch 8mm
Pixel Density 15625dots/sq.m
Color Configuration 1R1G1B
LED Package SMD3535
Display Full Color
Module Size 256mm x 128mm
Module Resolution 32dots x 16dots
Drive Duty 1/4 Scan
Standard Cabinet Size 1024*1024mm
Cabinet Weight 45kg
Led Chip Nationstar / Kinglight
Power DC 5V, AC110V-220V
Brightness ≥6800 cd/sqm
Viewing Distance 8M
Viewing Angle H: 140°; V:140°
Refresh Rate >1920HZ, adjustable by software
Power Input AC110V/ 220V ±10%, 50HZ
Max Power Consumption 800W/cabinet
Ave. Power Consumption 280W/cabinet
Temperature -40℃~+65℃
MTBF >10,000 Hours
Life Span >100,000 Hours
Waterproof Level IP65
Operating Humidity 10%~90% RH
Control Method Synchronous, Asynchronous,
Operating System Win 98, Win2000, XP, Win7, Win8
Video Signal Mode RF, S-Video, RGB, RGBHV, YUV, YC etc
Certificate CE, RoHS,ISO9001

Product Description:

Waterproof Seamless P8 Outdoor Full Color LED Screen

Waterproof Seamless P8 Outdoor Full Color LED Screen

Feature:

1. Advanced system design is reasonable, the display effect is stable, easy installation and maintenance.
2. All-weather work, vivid, high refresh rate, antistatic, dustproof, good heat dissipation effect, high cost performance.
3. The display mode: left and right mobile, move up and down, zola curtain, curtain, right in the opening and closing, flicker, which show a variety of ways.
4. Use program editing software, can pass, mouse edit, add, delete and modify text, graphics, images, and other information.In the content of the control card, automatic cycle display of information broadcast according to schedule.
5. Strong luminescence brightness: within visual range, sun screen surface, content is still clearly visible.
6. Good visual Angle: in both the horizontal and vertical has a large visual Angle, the wide distribution and high level drops are suitable for the larger environment.
7. Good effect, USES the nonlinear point correction technology, the text more clearly, administrative levels feeling stronger;
8. Reliability: the distributed scan technology and modular design technology, higher reliability, stability;
9. The display mode diversification: supports a variety of display mode;
10. Easy to operate: computer editing content control card sent to the system, can display the editor's content, system operation is very convenient.


Images:

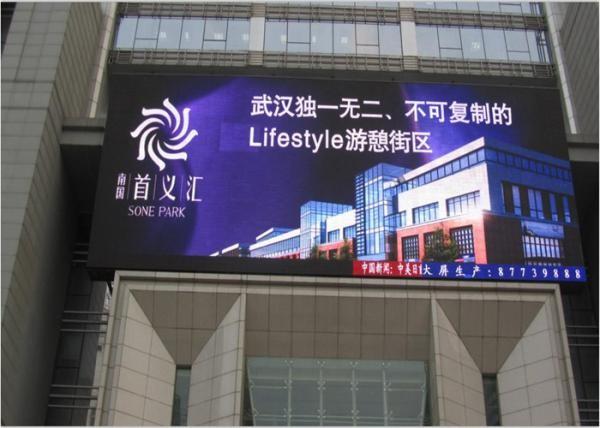

Waterproof Seamless P8 Outdoor Full Color LED Screen
