P8 SMD Commercial Led Screens 960mm*960mm Cabinet Size 800W Max Consumpution
P8 SMD Commercial Led Screens 960mm*960mm Cabinet Size 800W Max Consumpution
Specifications
Brand Name :
TOPLED
Model Number :
8
Certification :
CE ROSH FCC
Place of Origin :
CHINA
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Square Meters/month
Delivery Time :
5 Square meters /10 -15 working days
Packaging Details :
Wooden cases, honeycomb cases, flight cases for your option.
Module size :
320x160mm
Brightness :
6500cd/sqm
LED chip :
Cree + Nichia + Epistar + Opto
Life span :
100000hours
Warranty :
2Years
Cabinet Size :
960mm*960mm
Max Consumpution :
800W
Description

High Quality P4 SMD1919 Outdoor Waterproof LED Screen for HD Video

Characteristic

1. Bright color, high contrast, good consistency and high brightness to keep the high resolution of the video under the sunlight.

2. Adopt CNC technology in high precision processing box body, the whole screen flatness<0.2mm. Using connection frame steel structure, installation and maintenance is very convenient.

3. Red LEDs were powered by 3.2V, blue and green LEDs were powered by 3.8V, which make the screen work stable and prolong the life span.

4. With PFC high-efficiency power supply, to ensure the screen can be powered sustainable.

Parameters

Name Parameter
Pixel Pitch(mm) 8mm
Physical Density 15,625
LED Configuration 1RGB
LED type SMD3535
Module Size 320×160
Module Resolution 32×16
Module Power Consumption 20W
Driving Mode Constant Current IC
Scanning Mode 1/3
Horizontal Viewing Angle 140
Vertical Viewing Angle 140
Brightness 6500
Grey Scale 16bit
Refresh Rate 1920
Cabinet Resolution 96×96
Cabinet Max Consumption 160
Cabinet Average Power Consumption 50
Cabinet Size 960×960
Cabinet Weight(kg) 15KG
Cabinet Thickness 75mm
Cabinet Material Iron/Aluminum
Color >16.7
Input Voltage AC 110V~220V +/-10%
Frame Frequency 50~60
Protection Level IP65
Working Temperature(℃) -40° -+65°
Storage Humidity Range(RH) 10%~90%
Life Span(H) 100,000 hours

Product Information

P8 SMD Commercial Led Screens 960mm*960mm Cabinet Size 800W Max Consumpution

Application

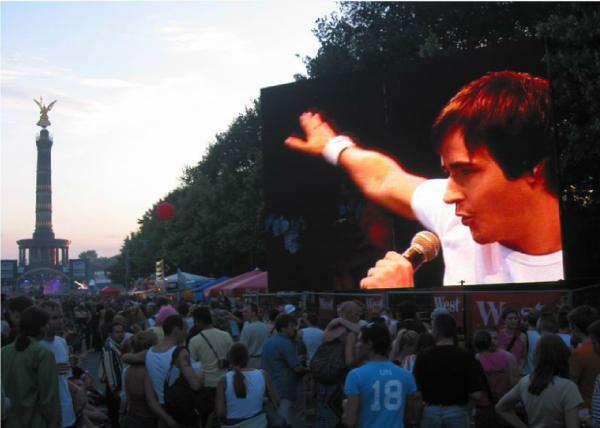

Outdoor far viewing distance (10m-80m) Led Display has the ability to play monitor videos and graphic information in real time. So it can be widely used in large area such as transportation, electricity, water conservancy, security, military conferences, city management, radio and television industries etc.

Aging Test

P8 SMD Commercial Led Screens 960mm*960mm Cabinet Size 800W Max Consumpution

Attention

In order to offer you a suitable solution, Please state general info about your project.

1. Pixel pitch or view distance you need.

2. Dimension

3. Location of installation. ( eg, on poles, on wall of building, etc)

4. Purpose. ( what are you going to do with the LED Screen)

FAQ

Why so many clients choose TOPLED?

Our led display has applied many countries in the world. Many countries have our projects.

TOPLED's led display unique advantage

-------service

>Our engineer will be on your service. We can give you technology support at any time.

We will be tracking your orders, from the pre-sale to the after-sale and also serve you in this process.

--------price

Our price is based on the quantity, We have the basic price for one square meter. For each additional 5 square meter will have a discount when beyond 10 square meter. What is more, free power and fan will send to you. The cabinet will be free.

--------Quality

Quality is our reputation, we have eight steps for our quality inspection, From material to the finished goods. Quality is what we pursuit.

Choose TOPLED, you choose the cost-effective , high quality and good service.
