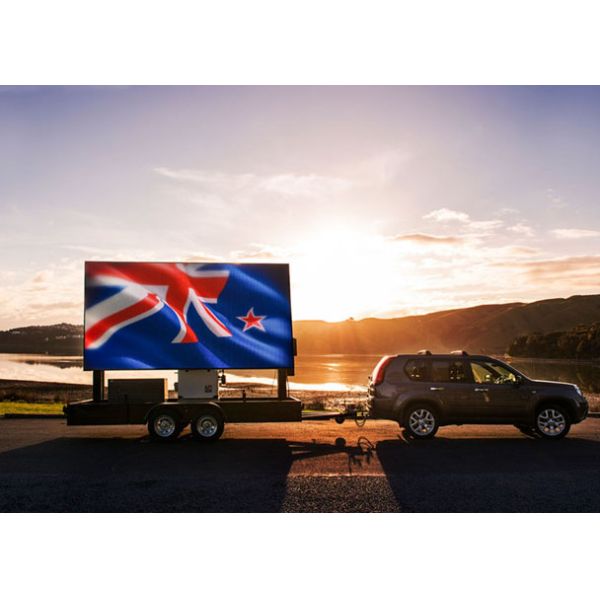

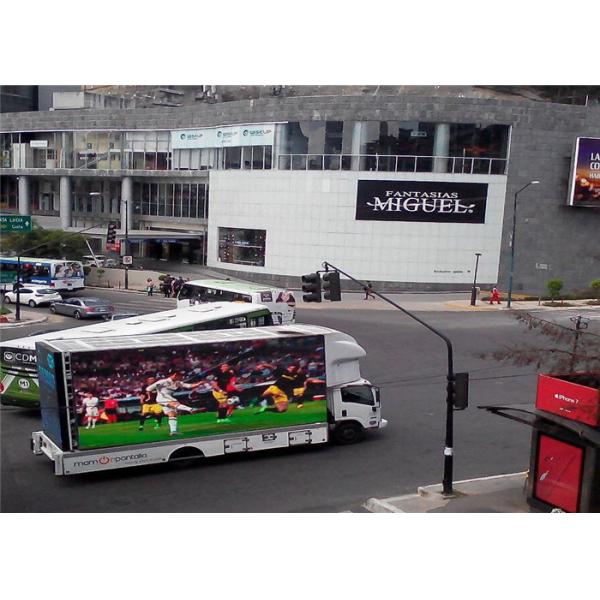

P8 Outdoor Fixed LED Mobile Billboard For Commercial Advertising
Specification:
Pixel Pitch | 8mm |
Pixel Density | 15625dots/sq.m |
Color Configuration | 1R1G1B |
LED Package | SMD3535 |
Display | Full Color |
Module Size | 320mm x 160mm |
Module Resolution | 40dots x 20dots |
Drive Duty | 1/3 Scan |
Cabinet Weight | 45kg |
Led Chip | Nationstar / Kinglight |
Power | DC 5V, AC110V-220V |
Brightness | ≥6500 cd/sqm |
Viewing Angle | H: 140°; V:140° |
Power Input | AC110V/ 220V ±10%, 50HZ |
Temperature | -40℃~+65℃ |
MTBF | >10,000 Hours |
Life Span | >100,000 Hours |
Waterproof Level | IP65 |
Control Method | Synchronous, Asynchronous, |
Certificate | CE, RoHS,ISO9001 |
1. Easy to Install: No need to do structure, can directly mounted the LED display on the wall with screws.
2. Easy to maintenance: The LED cabinets can be open from the front, maintenance person is easy to open and maintenance the LED Display from the front.
3. SMD 3-in-1 LEDs: Ensure seamless and flatness,wide viewing angle,nice video effect.
4. Support all formats of videos,graphics,images,texts,messages,flash,animation,etc.
5. High brightness can the brightness can be adjustable according to the surrounding environments.
6. Support PC online or offline control, also can remote control with asynchronous system,wifi control, 3G control.
![]() | ![]() |
![]() | ![]() |
