Specifications
Brand Name :
TOPLED
Model Number :
P5
Certification :
CE FCC ROHS
Place of Origin :
China (Mainland)
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 Square Meter/Square Meters per Month
Delivery Time :
10-15 working days after got deposit
Packaging Details :
Fight case or Standard wooden box
Usage :
Outdoor
Color :
Full color
Cabinet size :
640*640mm
Material :
Die casting aluminum
Module size :
320*160mm
Warranty :
2years
Description



HD Outdoor Pixel 5mm Rental Stage LED Screen For Music Concert

Specification:

Pixel Pitch 5mm
Pixel Density 40000dots/sq.m
Color Configuration 1R1G1B
LED Package SMD2727
Display Full Color
Module Size 320mm x 160mm
Module Resolution 64dots x 32dots
Drive Duty 1/8 Scan
Standard Cabinet Size 640*640mm
Cabinet Weight 11kg
Led Chip Nationstar / Kinglight
Power DC 5V, AC110V-220V
Brightness ≥6000 cd/sqm
Viewing Distance 5M
Viewing Angle H: 140°; V:140°
Refresh Rate >1920HZ, adjustable by software
Power Input AC110V/ 220V ±10%, 50HZ
Max Power Consumption 800W/cabinet
Ave. Power Consumption 300W/cabinet
Temperature -40℃~+65℃
MTBF >10,000 Hours
Life Span >100,000 Hours
Waterproof Level IP65
Operating Humidity 10%~90% RH
Control Method Synchronous
Control PC With DVI Graphic card
Operating System Win 98, Win2000, XP, Win7, Win8
Certificate CE, RoHS,ISO9001

Product Description:

1. Multipurpose outdoor advertising Display

the high resolution led screen is known for displaying great quality picturtes and videos to a broader audience.
Highly usable for outdoor advertising such as banks,stages ,promotion,exhibitions,stations,stadiums
and other outdoor areas.

2. Standard Cabinet Dimensions

The ultra-lightweight cabinet made is alunimum alloy which gives it extra strength .
The cabinet of LED display is designed with perfection,marking it really easy to install.
Also,the quick -lock feature requires no technical skills to install and uninstall.

3. Seamless Splice

The High-Quality Satge LED Screen can be installed within minutes ,without any special tools .You may configure
the LED display as per your requirements and choice .Adjust the brightness ,gray scale and picture quality as per choice.
Advanced adjustment options allow you to set up display as per the environment conditions and area of installation.

4. Better Protection

The display features a Front IP66 waterproof grade which protects the display from any demage .
A dedicated guard prevents the screen from any damage and enviromental effects .
The screen will remain harmless in every condition and in every weather

5. High Gray Scale --Better Picture

The LED Screen is manufactured by using best quality material ,purchased from most reputed vendors .
The final products feature supreme quality and offers best outputs.High refresh rate and 16bit gray scale
ensures the picture quality remains seamless .

6. Unique Cabinet Design- Easy to install & Transport

The cabinet of High -Quality Stage LED Screen features unique rugged design which makes it easy to carry and install.
The lightweight cabinet is easy to carry and saves transportation cost.It's damage free and lasts for a lifetime .
Pick out from different standard colors of cabinets.

Why so many clients choose TOPLED?

Our led display has applied many countries in the world. Many countries have our projects.


TOPLED's led display unique advantage
-------Service
Our engineer will be on your service. We can give you technology support at any time.
We will be tracking your orders, from the pre-sale to the after-sale and also serve you in this process.


--------Price
Our price is based on the quantity, We have the basic price for one square meter. For each additional 5 square meter will have a discount when beyond 10 square meter. What is more, free power and fan will send to you. The cabinet will be free.

--------Quality
Quality is our reputation, we have eight steps for our quality inspection, From material to the finished goods. Quality is what we pursuit.


Choose TOPLED, you choose the cost-effective , high quality and good service.

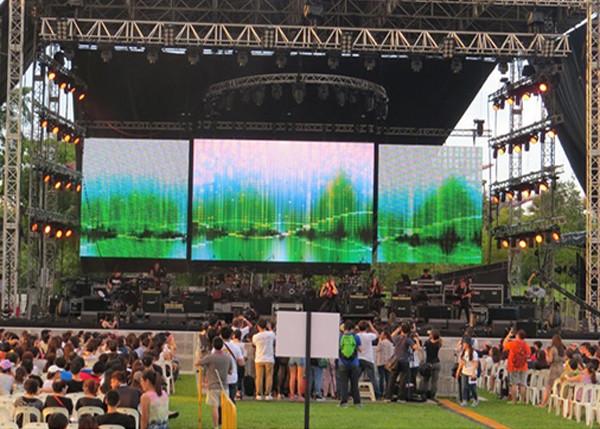

Project images:
HD Outdoor Pixel 5mm Stage LED Screen For Music Concert
