SMD3535 IP65 6800 nits P8 LED Advertising Billboard
SMD3535 IP65 6800 nits P8 LED Advertising Billboard
SMD3535 IP65 6800 nits P8 LED Advertising Billboard
SMD3535 IP65 6800 nits P8 LED Advertising Billboard
SMD3535 IP65 6800 nits P8 LED Advertising Billboard
SMD3535 IP65 6800 nits P8 LED Advertising Billboard
Specifications
Brand Name :
TOPLED
Model Number :
P8
Certification :
CE FCC ROHS
Place of Origin :
China (Mainland)
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 Square Meter/Square Meters per Month
Delivery Time :
10-15 working days after got deposit
Packaging Details :
Fight case or Standard wooden box
Name :
High Refresh P8 Outdoor Full Color Single Pole LED Street Advertising Screen
Usage :
Outdoor
Pixel pitch :
8MM
Waterproof :
IP65
Module size :
256*128mm
Brightness :
6800nits
Scan :
1/4scan
Warranty :
2yars
Description


TOPLED P8 advertising billboard panels pantallas led gigante para publicidad exterior outdoor display screen

Features

1. Bright color, high contrast, good consistency and high brightness to keep the high resolution of the video under the sunlight.

2. Adopt CNC technology in high precision processing box body, the whole screen flatness<0.2mm. Using connection frame steel structure, installation and maintenance is very convenient.

3. Red LEDs were powered by 3.2V, blue and green LEDs were powered by 3.8V, which make the screen work stable and prolong the life span.

4. With PFC high-efficiency power supply, to ensure the screen can be powered sustainable.


Specification

Pixel Pitch 8mm
Pixel Density 15625dots/sq.m
Color Configuration 1R1G1B
LED Package SMD3535
Display Full Color
Module Size 256mm x 128mm
Module Resolution 32dots x 16dots
Drive Duty 1/4 Scan
Standard Cabinet Size 1024*1024mm
Cabinet Weight 45kg
Led Chip Nationstar / Kinglight
Power DC 5V, AC110V-220V
Brightness ≥6800 cd/sqm
Viewing Distance 8M
Viewing Angle H: 140°; V:140°
Refresh Rate >1920HZ, adjustable by software
Power Input AC110V/ 220V ±10%, 50HZ
Max Power Consumption 800W/cabinet
Ave. Power Consumption 280W/cabinet
Temperature -40℃~+65℃
MTBF >10,000 Hours
Life Span >100,000 Hours
Waterproof Level IP65
Operating Humidity 10%~90% RH
Control Method Synchronous, Asynchronous,
Certificate CE, RoHS,ISO9001

Application

Outdoor far viewing distance (10m-80m) Led Display has the ability to play monitor videos and graphic information in real time. So it can be widely used in large area such as transportation, electricity, water conservancy, security, military conferences, city management, radio and television industries etc.

Attention

In order to offer you a suitable solution, Please state general info about your project.

1. Pixel pitch or view distance you need.

2. Dimension

3. Location of installation. ( eg, on poles, on wall of building, etc)

4. Purpose. ( what are you going to do with the LED Screen)

Why so many clients choose TOPLED?

Our led display has applied many countries in the world. Many countries have our projects.
TOPLED's led display unique advantage
-------Service
Our engineer will be on your service. We can give you technology support at any time.
We will be tracking your orders, from the pre-sale to the after-sale and also serve you in this process.
--------Price
Our price is based on the quantity, We have the basic price for one square meter. For each additional 5 square meter will have a discount when beyond 10 square meter. What is more, free power and fan will send to you. The cabinet will be free.
--------Quality
Quality is our reputation, we have eight steps for our quality inspection, From material to the finished goods. Quality is what we pursuit.
Choose TOPLED, you choose the cost-effective , high quality and good service.

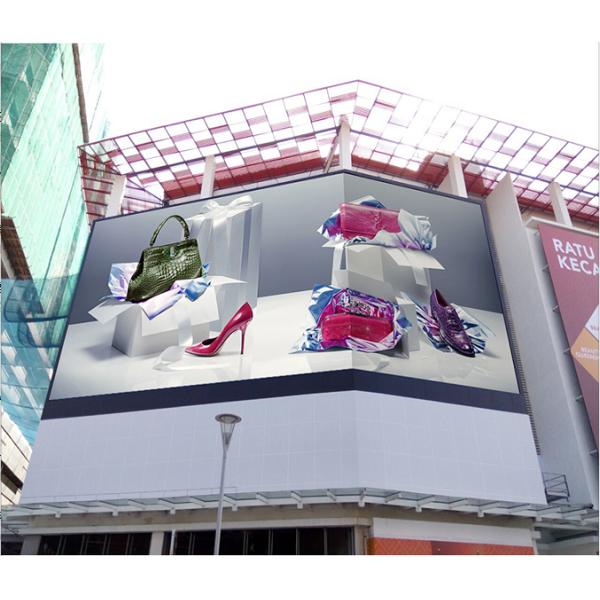

Images:
SMD3535 IP65 6800 nits P8 LED Advertising Billboard
