Full Color SMD3535 7500 Nits P16 Modular LED Display
Full Color SMD3535 7500 Nits P16 Modular LED Display
Full Color SMD3535 7500 Nits P16 Modular LED Display
Full Color SMD3535 7500 Nits P16 Modular LED Display
Full Color SMD3535 7500 Nits P16 Modular LED Display
Full Color SMD3535 7500 Nits P16 Modular LED Display
Full Color SMD3535 7500 Nits P16 Modular LED Display
Full Color SMD3535 7500 Nits P16 Modular LED Display
Specifications
Brand Name :
TOPLED
Model Number :
outdoor p16
Certification :
CE, ROHS, FCC, ISO9001, ISO14001
Place of Origin :
Guangdong
MOQ :
10
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 SQM/Month
Delivery Time :
15-20 Working days
Packaging Details :
Wooden case, flight case, honeycomb.
Pixels :
16mm
Brightness :
7500 nits
Module Size :
256*256mm
Cabinet Size :
1024*1024mm
Display Function :
Video
Scan Mode :
Static
cabinet weight :
53kg/m2
Power (Ave./Max) :
330/1100 W/m2
Description

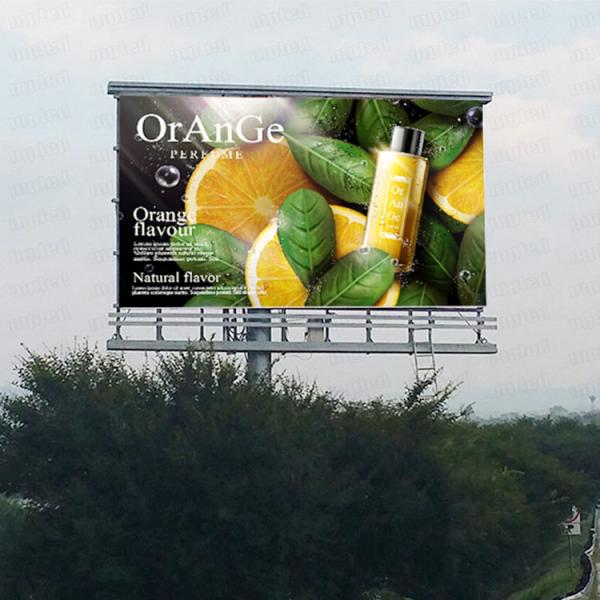

Outdoor Advertising P16 Large Outdoor Full color/Multi color Modular LED Display

Features

1. The front maintaining is easy to maintain and save time.

2. Ultra bright LED lamp, and the best raw materials to made into plastic parts.

3. Chip encapsulation uses golden pure wire to solder, red chip encapsulation uses double pure golden wires to keep stability.

4. The copper silvering trestle.

5. High-end specialized outdoor glue.

6. Brushing black lamp with five surface and black gluing to keep the uniformity of screen.

7. Plated signal and power connector.

8. Pure-copper environmental flat cable,pure-copper power wire.

Parameters

Name Parameter
Pixel Pitch(mm) 16
Physical Density 3906
LED Configuration 1RGB
LED type SMD3535
Module Size 256×256
Module Resolution 16×16
Module Power Consumption 60w
Driving Mode Constant Current IC
Scanning Mode static
Horizontal Viewing Angle ≥140(+10/-10)
Vertical Viewing Angle ≥120(+10/-10)
Brightness 8000
Grey Scale 16bit
Cabinet Resolution 128×128
Cabinet Max Consumption 800
Cabinet Average Power Consumption 240
Cabinet Size 1024×1024
Cabinet Weight(kg) 45kg
Cabinet Thickness 100mm
Cabinet Material Iron/Aluminum
Color >16.7
Input Voltage AC 110V~220V +/-10%
Frame Frequency 50~60
Protection Level IP65
Working Temperature(℃) -20° -+65°
Storage Humidity Range(RH) 10%~90%
Life Span(H) 100,000 hours

2. Aging Test

Full Color SMD3535 7500 Nits P16 Modular LED Display

Attention

In order to offer you a suitable solution, Please state general info about your project.

1. Pixel pitch or view distance you need.

2. Dimension

3. Location of installation. ( eg, on poles, on wall of building, ect)

4. Purpose. ( what are you going to do with the LED Screen)

Images

Full Color SMD3535 7500 Nits P16 Modular LED Display
