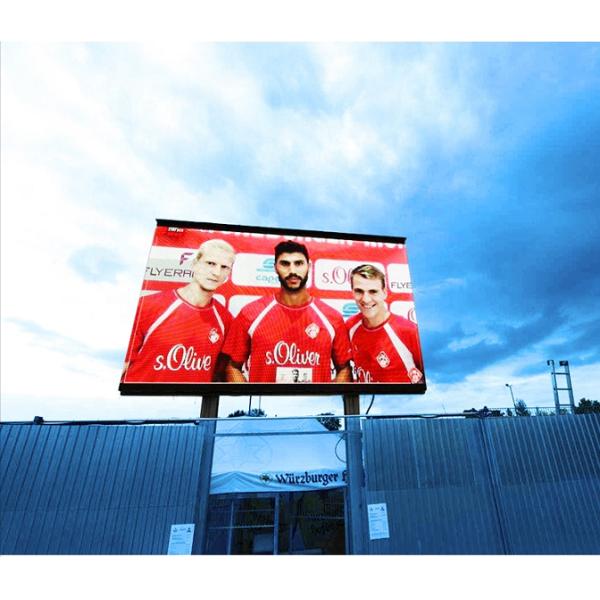

800W 1R1G1B 6000cd/m2 5mm Pixel Led Advertising Billboard
800W 1R1G1B 6000cd/m2 5mm Pixel Led Advertising Billboard
800W 1R1G1B 6000cd/m2 5mm Pixel Led Advertising Billboard
800W 1R1G1B 6000cd/m2 5mm Pixel Led Advertising Billboard
800W 1R1G1B 6000cd/m2 5mm Pixel Led Advertising Billboard
800W 1R1G1B 6000cd/m2 5mm Pixel Led Advertising Billboard
Specifications
Brand Name :
TOPLED
Model Number :
P5
Certification :
CE ROSH FCC
Place of Origin :
China
MOQ :
Negotiate
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50000 per month
Delivery Time :
10-25 days
Packaging Details :
Woden case/Carton box/Flight case
Pixel pitch(mm) :
5mm
LED configuration :
1R1G1B
Module size(mm) :
160*160mm
Grey scale :
14-16bit
Panel size(mm) :
960*960mm
Panel resolution :
192*192dots
Panel power consumption(W) :
200-800W
Display function :
Video
Description

p5 screen led advertising billboard Linsn Nova Control Card P5 Smd Outdoor Led Display

Outdoor led display:
1. Brand new mask design makes the light from LEDs almost non-reflection.
2. Cabinet design of the module uses high temperature spraying technology to improve the anti-rust function greatly.
3. The flatness of module erection side is controlled within 0.2mm, so as to ensure the flatness of the whole LED display.
4. Good uniformity in color solves the problem of the mosaic well.
5. With wave-soldering process and green oil protection from Oxygen on PCB, preventing the circuit from moist and Oxygen, so as to increase the lifetime of LED display.
6. Utilization rate of power supply is improved a lot, reducing the failure rate of the power supply.
7. Good cooling system with high quality fans make the LED display working stable in high temperature and ensure it is safe and long life.
8. Using good quality silicon gel in the front and waterproof rubber in the rear to improve the waterproof performance of LED display.
9. Applied to all kinds of the severe environment outside because of its high reliability, high brightness and high performance on waterproof and dustproof beyond IP65.

Parameters:

Full color outdoor advertising P5 smd led display screen
1 Pixel Pitch(mm) 5mm
2 Pixel configuration 1R1G1B / SMD2727
3 Pixel density 40,000 dots/m2
4 Brightness >6000cd/m2
5 Module size(W*H) 320mm × 160mm
6 Module Resolution (W*H) 64 dots x 32 dots
7 Cabinet size (W*H) 960mm×960mm or Customized size
8 Cabinet Resolution (W*H) 192 dots x 192 dots
9 Cabinet Material Cold Rolled Steel / Aluminum
10 Cabinet Weight 50kg/sqm
11 Viewing Distance >5m
12 Power Consumption (W/sq.m) Max: 800 ; Ave: 260
13 Driver Mode 1/8 Scan
14 Supply Voltage AC220V/50HZ ; AC110V/60HZ
15 Operating temperature -30--50ºC
16 Operating Humidity 10%-90%
17 Refresh Rate 500-3000HZ Adjustable
18 Control System Synchronous or Asynchronous
19 Viewing Angel H: 140° ; V: 140°
20 IP Rating Front IP65
21 LED Life 100,000 Hours



Project:

800W 1R1G1B 6000cd/m2 5mm Pixel Led Advertising Billboard

Shipping Information:

  • FOB Port:Shenzhen
  • Lead Time:15 - 25 days
  • Dimensions per Unit:96 × 15 × 96 Centimeters
  • Weight per Unit:50 Kilograms
  • Units per Export Carton:5.5
  • Export Carton Dimensions L/W/H:129 × 102 × 116 Centimeters
  • Export Carton Weight:330 Kilogram
