Full Color Led Outdoor Advertising Screens , Commercial LED Wall Panel Board P6
Full Color Led Outdoor Advertising Screens , Commercial LED Wall Panel Board P6
Specifications
Brand Name :
TOPLED
Model Number :
P6
Certification :
CE FCC ROHS
Place of Origin :
China (Mainland)
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 Square Meter/Square Meters per Month
Delivery Time :
10-15 working days after got deposit
Packaging Details :
Fight case or Standard wooden box
Name :
Full Color Outdoor Advertising LED Display ,Commercial LED Wall Panel Board
Usage :
Outdoor
Pixel pitch :
6MM
Material :
Steel/Iron
Module size :
192*192mm
Brightness :
6800nits
Scan :
1/4 scan
Warranty :
2yars
Description


Full Color Outdoor Advertising LED Display ,Commercial LED Wall Panel Board​

Specification:

Pixel Pitch 6mm
Pixel Density 27777dots/sq.m
Color Configuration 1R1G1B
LED Package SMD2727
Display Full Color
Module Size 192mm x 192mm
Module Resolution 32dots x 32dots
Drive Duty 1/4 Scan
Standard Cabinet Size 768*768mm
Cabinet Weight 45kg
Led Chip Nationstar / Kinglight
Power DC 5V, AC110V-220V
Brightness ≥6800 cd/sqm
Viewing Distance 6M
Viewing Angle H: 140°; V:140°
Refresh Rate >1920HZ, adjustable by software
Power Input AC110V/ 220V ±10%, 50HZ
Max Power Consumption 800W/cabinet
Ave. Power Consumption 280W/cabinet
Temperature -40℃~+65℃
MTBF >10,000 Hours
Life Span >100,000 Hours
Waterproof Level IP65
Operating Humidity 10%~90% RH
Control Method Synchronous, Asynchronous,
Operating System Win 98, Win2000, XP, Win7, Win8
Video Signal Mode RF, S-Video, RGB, RGBHV, YUV, YC etc
Certificate CE, RoHS,ISO9001

Why so many clients choose TOPLED?

Our led display has applied many countries in the world. Many countries have our projects.
TOPLED's led display unique advantage
-------Service
Our engineer will be on your service. We can give you technology support at any time.
We will be tracking your orders, from the pre-sale to the after-sale and also serve you in this process.
--------Price
Our price is based on the quantity, We have the basic price for one square meter. For each additional 5 square meter will have a discount when beyond 10 square meter. What is more, free power and fan will send to you. The cabinet will be free.
--------Quality
Quality is our reputation, we have eight steps for our quality inspection, From material to the finished goods. Quality is what we pursuit.
Choose TOPLED, you choose the cost-effective , high quality and good service.

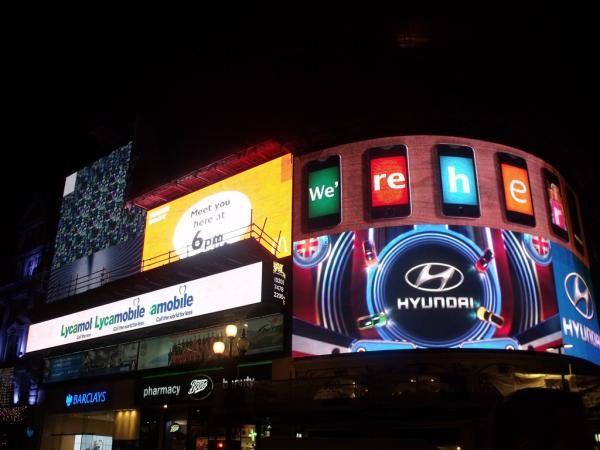

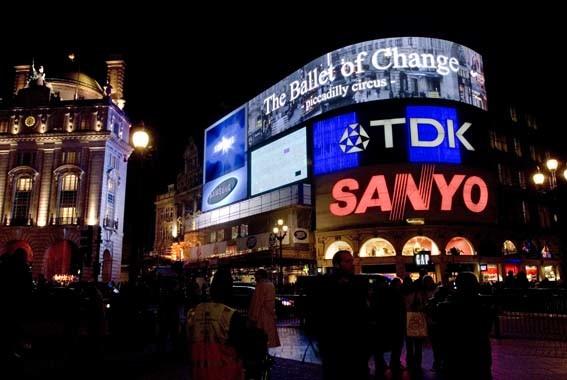

Application:

Full Color Led Outdoor Advertising Screens , Commercial LED Wall Panel Board P6
