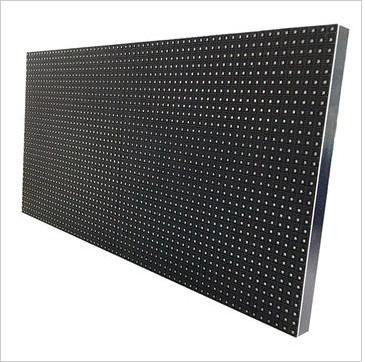

1R1G1B Full Color Led Display Board , P5 Indoor Led Display Screen Customize Pixel
1R1G1B Full Color Led Display Board , P5 Indoor Led Display Screen Customize Pixel
1R1G1B Full Color Led Display Board , P5 Indoor Led Display Screen Customize Pixel
1R1G1B Full Color Led Display Board , P5 Indoor Led Display Screen Customize Pixel
1R1G1B Full Color Led Display Board , P5 Indoor Led Display Screen Customize Pixel
1R1G1B Full Color Led Display Board , P5 Indoor Led Display Screen Customize Pixel
Specifications
Brand Name :
TOPLED
Model Number :
P1.25-P10
Certification :
CE ROSH FCC
Place of Origin :
China
MOQ :
2
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50000 per month
Delivery Time :
10-25 days
Packaging Details :
Woden case/Carton box/Flight case
Pixel pitch(mm) :
P1.25-P10 available
LED configuration :
1R1G1B
Module size(mm) :
Customize
Module resolution :
Customize Pixel
Grey scale :
14-16bit
Refresh rate(HZ) :
1920/2880/3840HZ
Panel size(mm) :
Customize
Panel resolution :
Customize
Panel power consumption(W) :
200-800W
Display function :
Video
Description

Publicité commerciale intérieure P5 pleine couleur électronique programmable LED carte d’affichage vidéo

Indoor commercial advertising P5 full color electronic programmable led video display board

Крытый коммерческой рекламы Р5 полноцветной электронный программируемый светодиодный видео дисплей доска

Indoor kommerzielle Werbung P5 Vollfarb-Elektronik programmierbar geführten Video-Display-Platte

Key Specifications/Special Features:

Indoor P5 advertising led display board:
1. Use high quality LEDs with high luminous efficiency and low brightness decay to make the display stable
2. With a full range of anti-static measures, effectively reducing the damage to LED from the static, so as to control the death rate the LED within five over one million each year
3. Advanced technology of production ensure the quality and lifetime of LED display
4. Brightness difference within 10% between any two LEDs, to ensure the brightness and color uniformity of the display
5. To show vivid and clear pictures with high resolution, but low cost
6. Good uniformity in color solve the problem of mosaic well
7. Has good display effect in both pictures and letters because of using real pixel technology
8. Easy for maintenance, and can fix the single point to save the maintenance cost
Full color indoor advertising P5 smd led display screen
1 Pixel Pitch(mm) 5mm
2 Pixel configuration 1R1G1B / SMD3528
3 Pixel density 40,000 dots/m2
4 Brightness 1300 cd/m2
5 Module size(W*H) 320mm × 160mm
6 Module Resolution (W*H) 64 dots x 32 dots
7 Cabinet size (W*H) 960mm×960mm or Customized size
8 Cabinet Resolution (W*H) 192 dots x 192 dots
9 Cabinet Material Cold Rolled Steel / Aluminum
10 Cabinet Weight 37kg/sqm
11 Viewing Distance >5m
12 Power Consumption (W/sq.m) Max: 600 ; Ave: 200
13 Driver Mode 1/16 Scan
14 Supply Voltage AC220V/50HZ ; AC110V/60HZ
15 Operating temperature -20--50ºC
16 Operating Humidity 10%-90%
17 Refresh Rate 500-3000HZ Adjustable
18 Control System Synchronous or Asynchronous
19 Viewing Angel H: 140° ; V: 140°
20 IP Rating IP20
21 LED Life 100,000 Hours
22 Gray Scale Red, Green and Blue each 16K
23 Display Color 4096 Billion
24 Control Distance 100 m (no repeating); Optical fiber transmission: 500m- 15km
25 Display Function Video, Animation, Image, Text, Letter

Schermo LED شاشه LED Ekran LED LED-Bildschirm СВЕТОДИОДНЫЙ экран Écran LED,LED-näyttö,LED scherm,LED obrazovka,Ecran cu LED
এলইডি স্ক্রিন,Skrin LED,Tela do diodo emissor de luz,LED スクリーン,LED-skärm,หน้าจอ LED,LED ekran,Pantalla LED,מסך LED,Οθόνη LED,Layar LED,Màn hình LED,Pannello LED LED display,شاشه LED,Wyświetlacz LED,LED-Display,СВЕТОДИОДНЫЙ дисплей,Affichage LED,LED-näyttö
LED scherm,Displej LED,Afișaj cu LED,LED ডিসপ্লে,Paparan LED,Display LED,LED ディスプレイ,LED-skärm,LED displej,จอแสดงผล LED,СВІТЛОДІОДНИЙ дисплей,תצוגת LED,Οθόνη LED,Bảng LED,LED Billboard Display,Digital Outdoor LED Billboards,Los carteles LED,لوحات LED,Billboardy LED,LED-Plakatwände,Panneaux d’affichage LED,Panouri LED,Painéis de LED,LED ビルボード,ЛЕД билборди,LED bilbordi,LED reklam panoları,LED Білборди,Los carteles LED,שלטי חוצות,Πινακίδες LED,Cartelloni pubblicitari a LED,एलईडी होर्डिंग,Papan reklame LED,LED Signs For Sale,LED Signs,LED Panels,LED Module,LED Screen Rentals, LED Display Rental, LED Wall Rental,LED Wall for Retail,Rent LED screens, display signs,Giant Screens,LED TV Screen,Stage Screen

Lead Time:Delivery in 10-25 working days.
