Full Color Led Video Wall Screen SMD1515 2.98mm Pixel Pitch 2 Years Warranty
Full Color Led Video Wall Screen SMD1515 2.98mm Pixel Pitch 2 Years Warranty
Full Color Led Video Wall Screen SMD1515 2.98mm Pixel Pitch 2 Years Warranty
Full Color Led Video Wall Screen SMD1515 2.98mm Pixel Pitch 2 Years Warranty
Specifications
Brand Name :
TOPLED
Model Number :
P2.98
Certification :
CE FCC ROHS CCC
Place of Origin :
China (Mainland)
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Square Meter/Square Meters per Month
Delivery Time :
10-15 working days after got deposit
Packaging Details :
Fight case or Standard wooden box
Name :
P2.98 led display
Cabinet size :
500*500mm
Material :
Die casting aluminum
Module size :
250*250mm
Brightness :
1000nits
Scan :
28scan
Warranty :
2years
Screen dimension :
Customized
Description

TOPLED product indoor full color SMD1515 P2.98 led video wall screen,2.98mm indoor led module


Specification:

Pixel Pitch 2.98mm
Color Configuration 1R1G1B
LED Package SMD1515 pure black lamp
Display Full Color
Module Size 250mmx 250mm
Module Resolution 84dots x 84dots
Drive Duty 1/28 Scan
Standard Cabinet Size 500*500mm
Cabinet Weight 6kg
Led Chip Nationstar / Kinglight
Power DC 5V, AC110V-220V
Brightness ≥1000 cd/sqm
Viewing Distance 2.98-40M
Viewing Angle H: 140°; V:140°
Refresh Rate >3840HZ, adjustable by software
Power Input AC110V/ 220V ±10%, 50HZ
Max Power Consumption 100W/cabinet
Ave. Power Consumption 30W/cabinet
Temperature -40℃~+60℃
MTBF >10,000 Hours
Life Span >100,000 Hours
Operating Humidity 10%~90% RH
Control Method Synchronous, Asynchronous, 3G,WIFI,USB
Control PC With DVI Graphic card
Certificate CE, RoHS,ISO9001

CHARACTERISTICS

  1. Gorgeous Picture : Non-reflective screen, which brings better viewing experience
  2. Perfect Image: Our products use special IC for LED which owns high refresh rate and achieves no shadows
  3. Light Weight : The body uses aluminum profile stitching, which is light and non- corrosive.
  4. Elegant Appearance : We adopt CNC processing technique to produce standard module and cabinet which can easily do seamless assemble
  5. Standard Size : We use professional buckles and standard modular panels which can snap together easily
  6. Easy Setup :Back modules are made easier for connection.
  7. Energy -saving: Our products get low energy cost and high efficiency.

Modules

Full Color Led Video Wall Screen SMD1515 2.98mm Pixel Pitch 2 Years Warranty

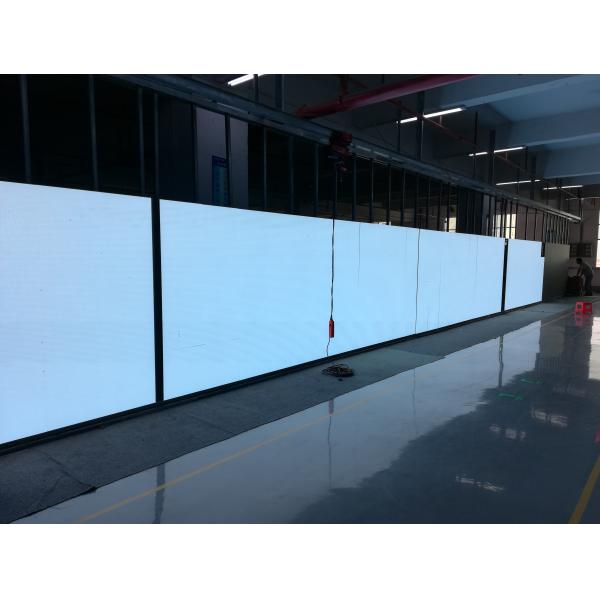

Aging Test:
Full Color Led Video Wall Screen SMD1515 2.98mm Pixel Pitch 2 Years Warranty

Our service:

1. Your inquiries will be replied within 12 hours!


2. Make considerate solutions based on your situation and requests.


3. 365 days after service support.


4. All life guarantee and free charge within two years.


5. Protection of your sales area, ideas of design and all your private information.
