IP65 P5 Outdoor Full Color LED Screen Message Board 1R1G1B 6500 Nits Brightness
IP65 P5 Outdoor Full Color LED Screen Message Board 1R1G1B 6500 Nits Brightness
IP65 P5 Outdoor Full Color LED Screen Message Board 1R1G1B 6500 Nits Brightness
IP65 P5 Outdoor Full Color LED Screen Message Board 1R1G1B 6500 Nits Brightness
Specifications
Brand Name :
TOPLED
Model Number :
P5
Certification :
CE FCC ROHS
Place of Origin :
China (Mainland)
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 Square Meter/Square Meters per Month
Delivery Time :
10-15 working days after got deposit
Packaging Details :
Fight case or Standard wooden box
Name :
HD P5 Outdoor Full Color Video LED Display Screen For Advertising
Usage :
Outdoor
Pixel pitch :
5MM
Material :
Steel/Iron
Color :
Full color
Brightness :
6500nits
Scan :
1/8 scan
Warranty :
2yars
Description


P5 Outdoor Full color Led Display 1R1G1B, 2 years Long Service Life led Message Board



Specification:

Pixel Pitch 5mm
Pixel Density 40000dots/sq.m
Color Configuration 1R1G1B
LED Package SMD2727
Display Full Color
Module Size 160mm x 160mm
Module Resolution 32dots x 32dots
Drive Duty 1/8 Scan
Standard Cabinet Size 960*960mm
Cabinet Weight 45kg
Led Chip Nationstar / Kinglight
Power DC 5V, AC110V-220V
Brightness ≥6500 cd/sqm
Viewing Distance 5M
Viewing Angle H: 140°; V:140°
Refresh Rate >1920HZ, adjustable by software
Power Input AC110V/ 220V ±10%, 50HZ
Max Power Consumption 900W/cabinet
Ave. Power Consumption 300W/cabinet
Temperature -40℃~+65℃
MTBF >10,000 Hours
Life Span >100,000 Hours
Waterproof Level IP65
Operating Humidity 10%~90% RH
Control Method Synchronous, Asynchronous,
Operating System Win 98, Win2000, XP, Win7, Win8
Certificate CE, RoHS,ISO9001

Product Description:

1) High reliability: using distributed scanning technology and module design technology that make higher reliability and stability.


2) Steady and reliable system:with strong anti-interference ability and long service life that can continually work for over 24 hours, and it's easy to operate the system.


3) Wide viewing angle: The horizontal and vertical viewing angles are so wide that it is suitable for wide horizon.

4) Error detection and monitoring:it can monitor the inner temperature,voltage,cooling fans etc and error detection automatically.

IP65 P5 Outdoor Full Color LED Screen Message Board 1R1G1B 6500 Nits Brightness

Application:

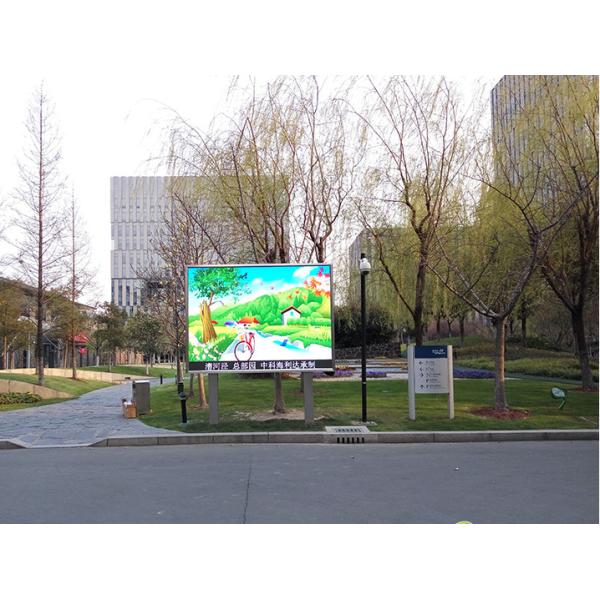

IP65 P5 Outdoor Full Color LED Screen Message Board 1R1G1B 6500 Nits Brightness

Why so many clients choose TOPLED?

Our led display has applied many countries in the world. Many countries have our projects.
TOPLED's led display unique advantage
-------Service
Our engineer will be on your service. We can give you technology support at any time.
We will be tracking your orders, from the pre-sale to the after-sale and also serve you in this process.
--------Price
Our price is based on the quantity, We have the basic price for one square meter. For each additional 5 square meter will have a discount when beyond 10 square meter. What is more, free power and fan will send to you. The cabinet will be free.
--------Quality
Quality is our reputation, we have eight steps for our quality inspection, From material to the finished goods. Quality is what we pursuit.
Choose TOPLED, you choose the cost-effective , high quality and good service.
