Stage Events Outdoor Full Color Led Display P4.81- P8 Die Casting Aluminum Cabinet
Stage Events Outdoor Full Color Led Display P4.81- P8 Die Casting Aluminum Cabinet
Specifications
Brand Name :
TOPLED
Model Number :
P1.25-P10
Certification :
CE ROSH FCC
Place of Origin :
China
MOQ :
1
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50000 per month
Delivery Time :
10-25 days
Packaging Details :
Woden case/Carton box/Flight case
Pixel pitch(mm) :
P1.25-P10 available
LED configuration :
1R1G1B
Module size(mm) :
Customize
Module resolution :
Customize Pixel
Grey scale :
14-16bit
Refresh rate(HZ) :
1920/2880/3840HZ
Panel size(mm) :
Customize
Panel resolution :
Customize
Panel power consumption(W) :
200-800W
Display function :
Video
Usage :
Indoor/Ourdoor
Description

High Quality Stage Events Rental use outdoor full Color Led Display(P4.81,P5,P6,P6.67,P8)

Product Description

High Quality Stage Events Rental use outdoor full Color Led Display(P4.81,P5,P6,P6.67,P8)
1, Good quality led made by SMD2727,high precision performance

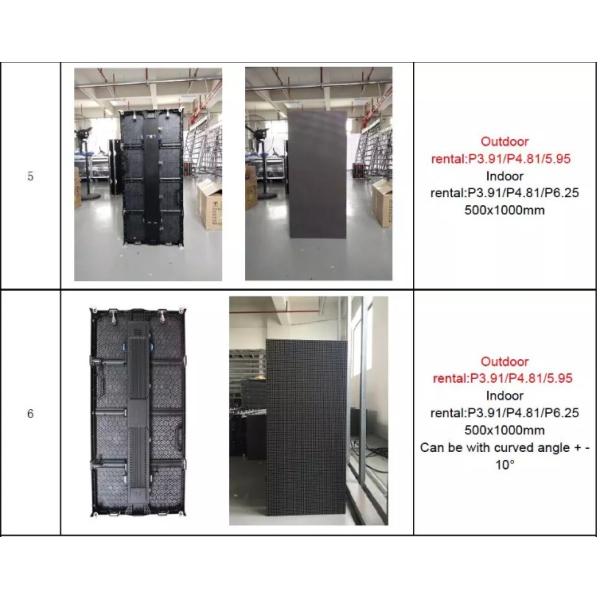

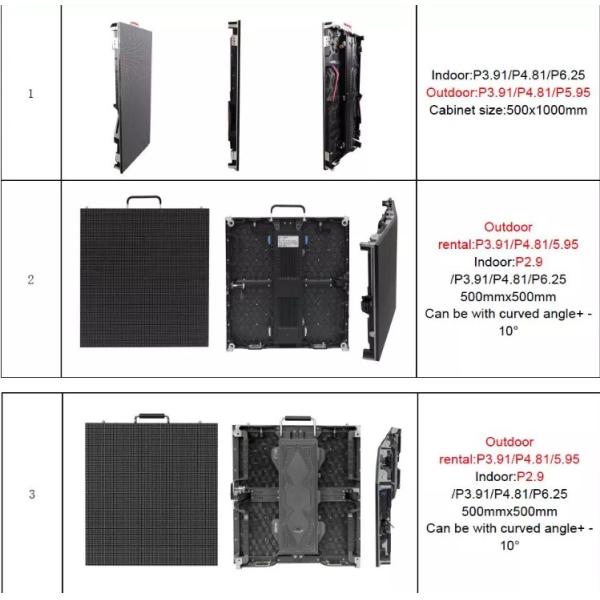

2, Die-casting Aluminum cabinet,500x1000mm/500x500mm,can be with curved angle of -+10-5degree
3, High contrast,Refresh rate can be 1920 to 3840Hz,suitable for stage,events,fashion shows
4, Ultralight,fast and seamless assembling by hand without tools
5, No fan,no noise design,low power dissipation,friendly to environment

Specification

NO. Item Parameter
1 Pixel pitch PH3.91mm PH4.81mm PH5.95mm PH6.25mm
2 Pixel configuration 1R1G1B 1R1G1B 1R1G1B 1R1G1B
3 LED type SMD1921 SMD2727 SMD3535 SMD3535
4 Module size 250*250mm 250*250mm 250*250mm 250*250mm
5 Module resolution 64*64pixels 52*52pixels 42*42pixels 40*40pixels
6 Cabient resolution 128*128pixels 104*104pixels 84*84pixels 80*80pixels
7 Cabinet size 500x500mm 500x500mm 500x500mm 500x500mm
8 Density 65536pixels/m2 43264pixels/m2 28224pixels/m2 25600pixels/m2
9 Brightness ≥5500 NIT ≥5500 NIT ≥5500 NIT ≥5500 NIT
10 Scan method 1/16 1/13 1/7 1/10
11 Best view distance ≥4m ≥5m ≥6m ≥6m
12 Ave. power consumption 130W/pcs 125W/pcs 110W/pcs 100W/pcs
13 Max. Power 260W/pcs 250W/pcs 220W/pcs 200W/pcs
14 Weight 8.5kg/pcs
15 Grey scale R(256bit) x G(256bit) x B(256bit)
16 Colors sR(1024) x G(1024) x B(1024)
17 Refresh rate ≥1920Hz
18 View angle Horizontal: 140°, Vertical: 140°
19 Color temperature 6500K
20 Frame frequency ≥60Hz
21 Out of control pixel rate <1/10000
22 MTBF >5000 hours
23 Lifespan 100,000 hours
24 Control mode Synchronous display with control PC by DVI
25 Working voltage AC 100/200v 50-60Hz
26 Control distance Ethernet cable: 100m, Multi-mode optical fiber: 500m, Singel-mode optical fiber: 20km
27 Operation temperature -30 to +50
28 Operation Humdity 10% to 80%
29 Protection level Waterproof IP65
