2K 4K 8K Matrix Indoor Led Display Screen Panel P0.7 P0.9 P1.2 P1.5 P1.8 P2.5
2K 4K 8K Matrix Indoor Led Display Screen Panel P0.7 P0.9 P1.2 P1.5 P1.8 P2.5
2K 4K 8K Matrix Indoor Led Display Screen Panel P0.7 P0.9 P1.2 P1.5 P1.8 P2.5
2K 4K 8K Matrix Indoor Led Display Screen Panel P0.7 P0.9 P1.2 P1.5 P1.8 P2.5
2K 4K 8K Matrix Indoor Led Display Screen Panel P0.7 P0.9 P1.2 P1.5 P1.8 P2.5
2K 4K 8K Matrix Indoor Led Display Screen Panel P0.7 P0.9 P1.2 P1.5 P1.8 P2.5
2K 4K 8K Matrix Indoor Led Display Screen Panel P0.7 P0.9 P1.2 P1.5 P1.8 P2.5
2K 4K 8K Matrix Indoor Led Display Screen Panel P0.7 P0.9 P1.2 P1.5 P1.8 P2.5
Specifications
Place of Origin :
Guangdong, China
Model Number :
LTV Series
Brand Name :
Longvision
Packaging Details :
wooden/carton case
Supply Ability :
3000 Square Meter/Square Meters per Month
MOQ :
2 Sets
Price :
negotiable
Certification :
CE, ROHS, UL, FCC
Payment Terms :
T/T
Delivery Time :
7-20 work days
Application :
Indoor Fixed Control Conference monitoring system
Color :
Black

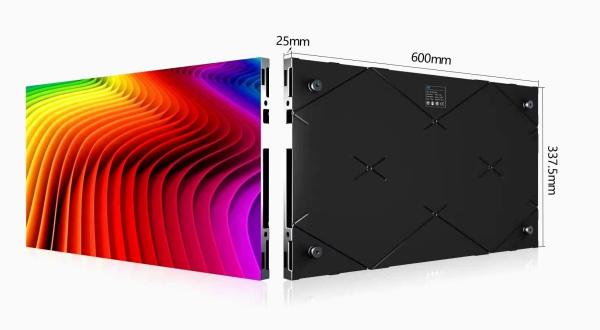

Panel Size :
600*337.5*25mm
Pixel Pitch :
P0.7 P0.9 P1.2 P1.5 P1.8 P2.5
Installation :
Floor Standing Wall Mounting Hanging
Brightness :
500-800 nits
Warranty :
2 Years
Module size :
300x168.75mm
Refresh rate :
>3840Hz
Cabinet material :
Die-casting Aluminum
Viewing angle :
160/160 Degree
LED type :
SMD 1010 SMD 1212 SMD 1515 SMD 2020
Input voltage :
AC 100-240V 50/60Hz
Lifespan :
100 000 Hours
Description

Advantage
1. Extremely Light and Thin Design
2. Ultra flat screen and wall system.
3. 16:9 (wide/high) golden ratio, easy to achieve ultra-high-definition resolutions and pixel-to-pixel true display effect.
4. Dual Backup. For both power supply and signal Backup is available,More Stable and Safety use.
Product Discription
2K 4K 8K Matrix Indoor Led Display Screen Panel P0.7 P0.9 P1.2 P1.5 P1.8 P2.5
2K 4K 8K Matrix Indoor Led Display Screen Panel P0.7 P0.9 P1.2 P1.5 P1.8 P2.5
2K 4K 8K Matrix Indoor Led Display Screen Panel P0.7 P0.9 P1.2 P1.5 P1.8 P2.5
2K 4K 8K Matrix Indoor Led Display Screen Panel P0.7 P0.9 P1.2 P1.5 P1.8 P2.5
2K 4K 8K Matrix Indoor Led Display Screen Panel P0.7 P0.9 P1.2 P1.5 P1.8 P2.5
2K 4K 8K Matrix Indoor Led Display Screen Panel P0.7 P0.9 P1.2 P1.5 P1.8 P2.5
2K 4K 8K Matrix Indoor Led Display Screen Panel P0.7 P0.9 P1.2 P1.5 P1.8 P2.5
2K 4K 8K Matrix Indoor Led Display Screen Panel P0.7 P0.9 P1.2 P1.5 P1.8 P2.5
2K 4K 8K Matrix Indoor Led Display Screen Panel P0.7 P0.9 P1.2 P1.5 P1.8 P2.5

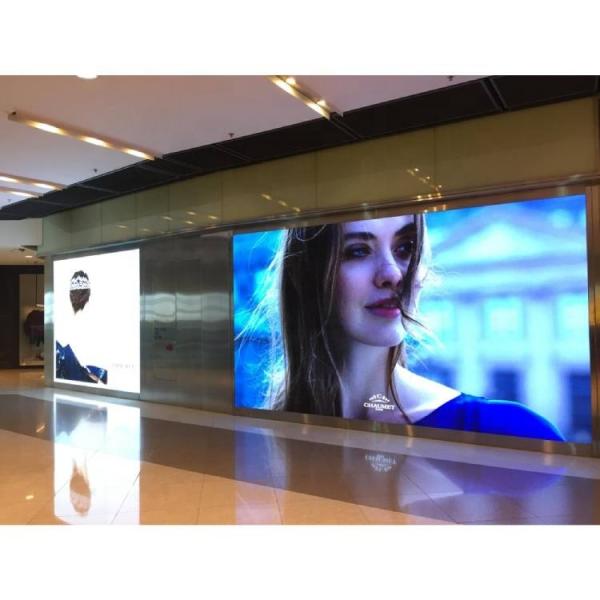

Application
2K 4K 8K Matrix Indoor Led Display Screen Panel P0.7 P0.9 P1.2 P1.5 P1.8 P2.5
Specifications
Pixel Pitch
P1.25
P1.538
P1.88
P2.0
P2.5
Modules Size
320x160x3
320x160x3
320x160x15
320x160x15
320x160x15
Module Resolution
256x128
208x104
172x86
160x80
128x64
LED Type
SMD1010
SMD1212
SMD1515
SMD1515
SMD2020
Panel Size
640x480x48
640x480x48
640x480x60
640x480x60
640x480x60
Panel Resolution
512x384
416x312
344x258
320x640
256x192
Panel Material
Die-Casting Aluminum
Panel Weight(Kg)
6.5
6.5
7.0
7.0
7.0
Refresh Rate
(Hz)
3840
3840
3840
3840
3840
Viewing Angle
(H/V)
160/160
160/160
160/160
160/160
160/160
Brightness
500
500
500
600
800
IP Rtae
(Front/Rear)
IP30/IP30
IP30/IP30
IP30/IP30
IP30/IP30
IP30/IP30
Input Voltage
100-220V
100-220V
100-220V
100-220V
100-220V
Recommend Angle (m)
>2
>2.5
>3.4
>4
>5
Power Consumption
(Max/Aveg)
480/150W
330/100W
330/100W
390/120W
520/150W
Service Access
Front Maintenance

FAQ

Q1. What about LED Display MOQ?

A1. Any quantity is acceptable for your order. And the price is negotiable for large quantity.
Q2. What about Longvision capacity?
A2.3000sqm per month. 8 modernized dust-free and static-free production lines, 6 new YAMAHA and PANASONIC high speed SMT machines, 2 large leadless reflow oven,250 skilled workers.
Q3. When will you make the delivery?
A3. 3-5 working days when we have LED module stock,10-15 days for the new production led finished screen according to the size and quantities of your order.
Q4. How about the warranty time?
A4. Our standard is 2 years.But you are willing to pay extra money for after sales and adopt industry top quality material, we can accept 3-5 years warranty.
Q5. Do you provide any free spare parts in each order?
A5. Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED lamp, IC, mask, power supply, receiving card, etc.
Q6. What`s trade terms you accept?
A6. We accept EXW,CIF,CNF,DDP,DDU etc
