ODM Ultra Thin Indoor Fixed Led Display Screen For Advertising P1.2 P1.5 P1.6 P1.8
ODM Ultra Thin Indoor Fixed Led Display Screen For Advertising P1.2 P1.5 P1.6 P1.8
ODM Ultra Thin Indoor Fixed Led Display Screen For Advertising P1.2 P1.5 P1.6 P1.8
ODM Ultra Thin Indoor Fixed Led Display Screen For Advertising P1.2 P1.5 P1.6 P1.8
ODM Ultra Thin Indoor Fixed Led Display Screen For Advertising P1.2 P1.5 P1.6 P1.8
ODM Ultra Thin Indoor Fixed Led Display Screen For Advertising P1.2 P1.5 P1.6 P1.8
ODM Ultra Thin Indoor Fixed Led Display Screen For Advertising P1.2 P1.5 P1.6 P1.8
ODM Ultra Thin Indoor Fixed Led Display Screen For Advertising P1.2 P1.5 P1.6 P1.8
Specifications
Place of Origin :
Guangdong, China
Model Number :
LJ Series
Brand Name :
Longvision
Packaging Details :
wooden/carton case
Supply Ability :
3000 Square Meter/Square Meters per Month
Price :
negotiable
Certification :
CE, ROHS, UL, FCC
MOQ :
1 square meter
Payment Terms :
T/T
Delivery Time :
7-20 work days
Application :
Indoor commercial advertising
Color :
Black
Panel Size :
640*480mm
Pixel Pitch :
P1.2 P1.5 P1.6 P1.8 P2 P2.5 P3 P4
Installation :
Floor Standing Wall Mounting Hanging
Brightness :
500-800 nits
Warranty :
2 Years
Module size :
320x160mm
Refresh rate :
1920-3840Hz
Cabinet material :
Die-casting Aluminum
Viewing angle :
160/160 Degree
LED type :
SMD 1010 SMD 1212 SMD 1515 SMD 2020
Input voltage :
AC 100-240V 50/60Hz
Lifespan :
100 000 Hours
Description
Advantage
* Super light and thin design

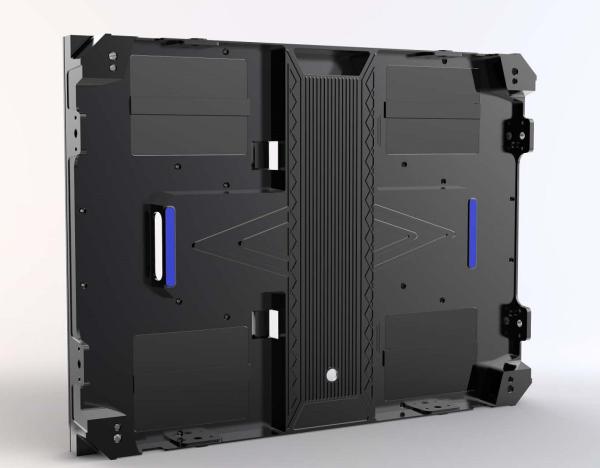

* High precision Die-Casting Led cabinet, Seamless splicing
* High Contrast, Gray level, Rich color
* Front and rear maintenance is optional, be content with a variety of complex LED projects

* Multiple installation, Hanging and stacking, wall mounting

Specification

Model VA 1.2 VA 1.5 VA 1.6 VA 1.8 VA 1.8
Pixel Pitch 1.25 1.53 1.667 1.83 1.86
Application UHD Display
Pixel Density 640000 dots/m² 427186 dots/m² 360000 dots/m² 298605 dots/m² 289050 dots/m²
LED Type SMD1010 SMD1212 SMD1212 SMD1515 SMD1515
Brightness ＞700cd/m² ＞700cd/m² ＞700cd/m² ＞700cd/m² ＞700cd/m²
Module Size 320*160 mm 320*160 mm 320*160 mm 320*160 mm 320*160 mm
Module Resolution 256*128 208*104 192*96 174*87 172*86
Cabinet Size 640*480 mm 640*480 mm 640*480 mm 640*480 mm 640*480 mm
Cabinet Resolution 512*384 416*312 384*288 348*261 344*258
Cabinet Material Die-casting Aluminum
Cabinet Weight 7kg/cbn
Viewing Angle H:160° / V:140°
Refresh Rate ≥3840Hz
Viewing Distance 1.2m~15m 1.5m~20m 1.6m~25m 1.8m~30m 1.8m~30m
Gray Scale 14~16bit
Max Power Consumption 700W/m² 700W/m² 800W/m² 800W/m² 800W/m²
Avg. Power Consumption 350W/m² 350W/m² 400W/m² 400W/m² 400W/m²
Power Input AC 100～240V
Frequency 50～60Hz
Maintenance 100% Front Service
Operating Temperature -20℃～50℃
Operating Humidity 10%～95%
Lifetime 100,000H

Product Discription

ODM Ultra Thin Indoor Fixed Led Display Screen For Advertising P1.2 P1.5 P1.6 P1.8

ODM Ultra Thin Indoor Fixed Led Display Screen For Advertising P1.2 P1.5 P1.6 P1.8

ODM Ultra Thin Indoor Fixed Led Display Screen For Advertising P1.2 P1.5 P1.6 P1.8

ODM Ultra Thin Indoor Fixed Led Display Screen For Advertising P1.2 P1.5 P1.6 P1.8

Application

ODM Ultra Thin Indoor Fixed Led Display Screen For Advertising P1.2 P1.5 P1.6 P1.8ODM Ultra Thin Indoor Fixed Led Display Screen For Advertising P1.2 P1.5 P1.6 P1.8

FAQ

Q1. What about LED Display MOQ?

A1. Any quantity is acceptable for your order. And the price is negotiable for large quantity.
Q2. What about Longvision capacity?
A2.3000sqm per month. 8 modernized dust-free and static-free production lines, 6 new YAMAHA and PANASONIC high speed SMT machines, 2 large leadless reflow oven,250 skilled workers.
Q3. When will you make the delivery?
A3. 3-5 working days when we have LED module stock,10-15 days for the new production led finished screen according to the size and quantities of your order.
Q4. How about the warranty time?
A4. Our standard is 2 years.But you are willing to pay extra money for after sales and adopt industry top quality material, we can accept 3-5 years warranty.
Q5. Do you provide any free spare parts in each order?
A5. Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED lamp, IC, mask, power supply, receiving card, etc.
Q6. What`s trade terms you accept?
A6. We accept EXW,CIF,CNF,DDP,DDU etc
