P3 P4 P5 P6 Lightweight Indoor Led Display Screen For Stage
P3 P4 P5 P6 Lightweight Indoor Led Display Screen For Stage
P3 P4 P5 P6 Lightweight Indoor Led Display Screen For Stage
P3 P4 P5 P6 Lightweight Indoor Led Display Screen For Stage
P3 P4 P5 P6 Lightweight Indoor Led Display Screen For Stage
P3 P4 P5 P6 Lightweight Indoor Led Display Screen For Stage
P3 P4 P5 P6 Lightweight Indoor Led Display Screen For Stage
P3 P4 P5 P6 Lightweight Indoor Led Display Screen For Stage
Specifications
Place of Origin :
Guangdong, China
Model Number :
MVP series
Brand Name :
Longvision
Packaging Details :
wooden/carton case
Supply Ability :
3000 Square Meter per Month
MOQ :
2 Square Meters
Price :
negotiable
Certification :
CE, ROHS, UL, FCC
Payment Terms :
T/T
Delivery Time :
7-20 work days
Application :
Indoor and semi outdoor fixed
Color :
Black
Panel Size :
640/960*320mm
Pixel Pitch :
P3 P4 P5 P6
Material :
Aluminum
Module size :
320*160mm
Brightness :
800~1000nits
LED type :
SMD 1921 SMD2121
Life span :
LED>100000Hours
Warranty :
2 years
Refresh rate :
3840Hz
Viewing angle :
V 140°/H 140°
IP rate :
40/20
Installation :
Front&rear
Description

Advantages
1. Indoor and Semi-outdoor available, over 5,000nits for semi-outdoor, reach a brilliantly video performance
2. Utra light, only 7.8kg per cabinet, 23kg/㎡;
3. 100% front and Rear maintenance for all parts;
4. Can be completely installed on the wall, saving maintenance space;
5. Seamless stitching. Can be at right angles, corners, to achieve different creative shapes.
Specification
Model Semi-outdoor Series
Pixel Pitch (mm) 3 4 5 6 8
Pixel Density (dot/m²) 105625 62500 40000 22500 15628
LED Type SMD
Brightness (CD/m²) 5000 5000 5000 5000 5000
Module Size (mm*mm) 320*160mm 320*160mm 320*160mm 320*160mm 320*160mm
Module Resolution (dot*dot) 104*52 80*40 64*32 48*24 40*20
Cabinet Size (L*W*H) 960*320*60mm 960*320*60mm 960*320*60mm 960*320*60mm 960*320*60mm
640*320*60mm 640*320*60mm 640*320*60mm 640*320*60mm 640*320*60mm
Cabinet Resolution (dot*dot) 312*104 240*80 192*64 144*48 120*40
208*104 160*80 128*64 96*48 80*40
Material Die-casting Aluminum
Viewing Angle H: 140°/V: 140° H: 140°/V: 140° H: 140°/V: 140° H: 140°/V: 140° H: 140°/V: 140°
Refresh Rate (Hz) 1920Hz～3840Hz 1920Hz～3840Hz 1920Hz～3840Hz 1920Hz～3840Hz 1920Hz～3840Hz
Best Viewing Distance >3m >4m >5m >6m >8m
Gray Scale (bit) 14~16bit 14~16bit 14~16bit 14~16bit 14~16bit
Max/Avg. Power Consumption (Wm²) 800W/385W 800W/385W 800W/385W 800W/385W 800W/385W
AC Input Voltage (V) AC 100～240V AC 100～240V AC 100～240V AC 100～240V AC 100～240V
Waterproof Level IP54 IP54 IP54 IP54 IP54
Maintenance 100% Front Service
Product Discription

P3 P4 P5 P6 Lightweight Indoor Led Display Screen For Stage
Front Access
● Front access for wall-mounted installation.
● Take out the modules directly for front access
P3 P4 P5 P6 Lightweight Indoor Led Display Screen For Stage

100% Front maintenance module and all other components

P3 P4 P5 P6 Lightweight Indoor Led Display Screen For Stage

100% Rear maintenance module and all other components

P3 P4 P5 P6 Lightweight Indoor Led Display Screen For Stage
High precision splicing
SEAMLESS SPLICING
Realize seamless joint and convenient installation
P3 P4 P5 P6 Lightweight Indoor Led Display Screen For Stage

Flexible modeling, Outer arc and Inner arc splicing diversity
P3 P4 P5 P6 Lightweight Indoor Led Display Screen For Stage

90 degrees Angle wall splicing, seamless perfect display

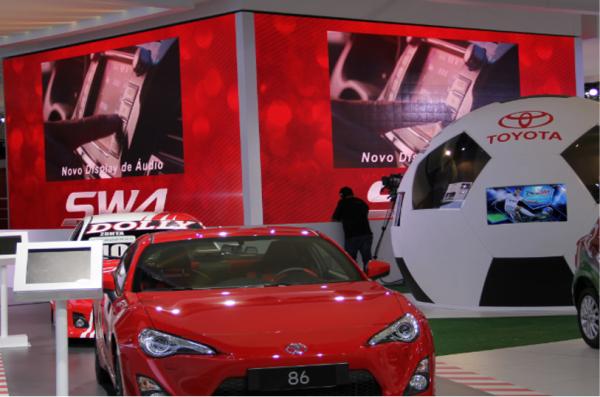

Application
P3 P4 P5 P6 Lightweight Indoor Led Display Screen For Stage
P3 P4 P5 P6 Lightweight Indoor Led Display Screen For Stage
P3 P4 P5 P6 Lightweight Indoor Led Display Screen For Stage
P3 P4 P5 P6 Lightweight Indoor Led Display Screen For Stage
P3 P4 P5 P6 Lightweight Indoor Led Display Screen For Stage
FAQ

Q1. What about LED Display MOQ?

A1. Any quantity is acceptable for your order. And the price is negotiable for large quantity.
Q2. What about Longvision capacity?
A2.3000sqm per month. 8 modernized dust-free and static-free production lines, 6 new YAMAHA and PANASONIC high speed SMT machines, 2 large leadless reflow oven,250 skilled workers.
Q3. When will you make the delivery?
A3. 3-5 working days when we have LED module stock,10-15 days for the new production led finished screen according to the size and quantities of your order.
Q4. How about the warranty time?
A4. Our standard is 2 years.But you are willing to pay extra money for after sales and adopt industry top quality material, we can accept 3-5 years warranty.
Q5. Do you provide any free spare parts in each order?
A5. Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED lamp, IC, mask, power supply, receiving card, etc.
Q6. What`s trade terms you accept?
A6. We accept EXW,CIF,CNF,DDP,DDU etc
