Multiple Installations
High-density digital LED media player Suitable for hanging, wall-mounted, base-standing, bracket standing, and creative splicing installation, as well as horizontal placement installation.
Break the traditional installation method and make the display smarter.

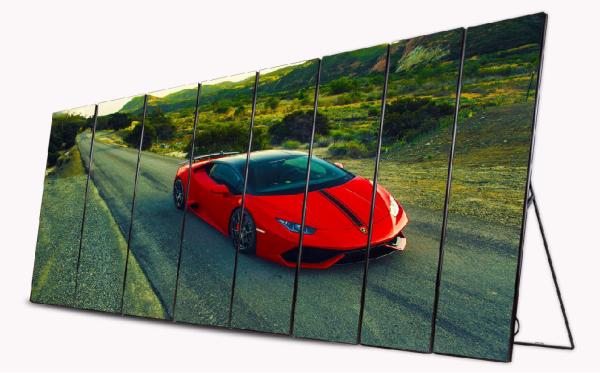

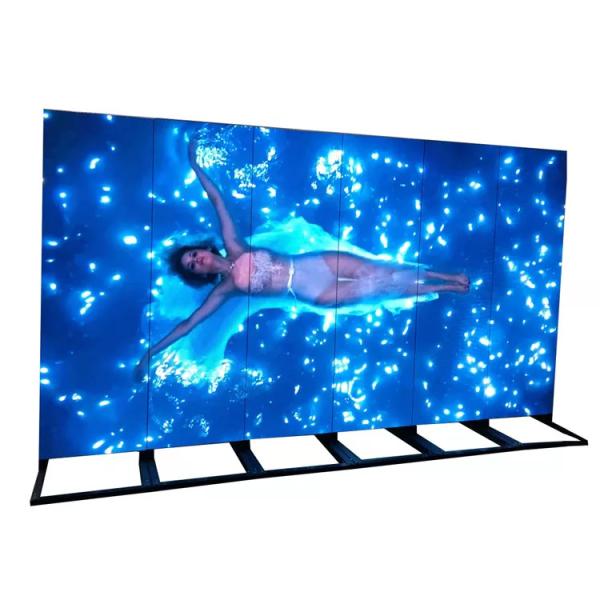

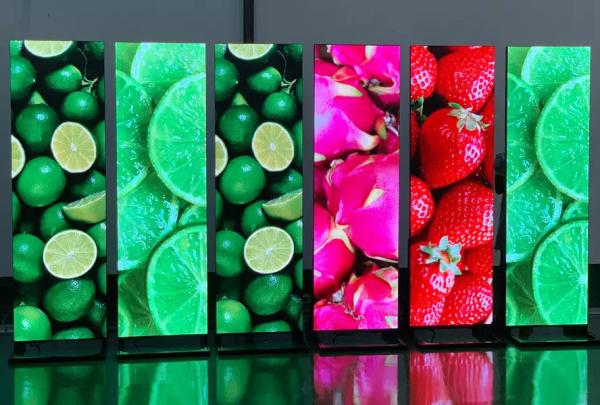

Multi-Screen Splicing
The Digital LED poster not only supports individual usage but also cascade program.
Multiple screens can be spliced together into a large LED display screen.
Model | P2.5 | P2.5 | P3 | P3 | |||
Pixel Pitch | 2.5mm | 2.5mm | 3mm | 3mm | |||
Application | Indoor | | | | |||
LED Configuration | SMD2121 | SMD2121 | SMD2121 | SMD2121 | |||
Pixel Density | 160,000dots/㎡ | 160,000dots/㎡ | 111,111dots/㎡ | 111,111dots/㎡ | |||
Module size | 160X160mm | 160X160mm | 192X192mm | 192X192mm | |||
Module Resolution | 64X64dot | 64X64dot | 64X64dot | 64X64dot | |||
Cabinet Size | 640X1920X38mm | 960X1920X38mm | 576X1920X38mm | 768X1920X38mm | |||
Cabinet Resolution | 256X768dots | 384X768dots | 192X640dots | 256X640dots | |||
Cabinet Weight | 35kg | 50kg | 30kg | 40kg | |||
IP Rating ( front/back) | IP40 | IP40 | IP40 | IP40 | |||
Brightness Intensity | ≥1000cd/㎡ | ≥1000cd/㎡ | ≥1000cd/㎡ | ≥1000cd/㎡ | |||
Viewing Angle | 140° | 140° | 140° | 140° | |||
View Distance | >2m | >2m | >3m | >3m | |||
Max./Avg. Power Consumption(W/m²) | 900W/300W | 1500W/500W | 800W/260W | 1100W/360W | |||
Refresh Frequency | ≥3840HZ | ≥3840HZ | ≥3840HZ | ≥3840HZ | |||
Control Mode | Synchronous display with control PC by DVI | | | | |||
Operation Power | AC100/240 50/60HZ | | | | |||
Operating Condition | - 20℃~+50℃, 10~90% RH | | | |
Applications:
Commercial LED display screen 2.5mm applicationThis indoor movable adverts led poster
widely use for shops, hotel, wedding, meeting guidence, new product presentation, autocar 4S shop,
high-end cloth chain shops, metro station, airport, etc. This led poster is also called mirror led display.
