Pantalla 3d Led Screen Outdoor Led Video Wall P4 P5 Black White
Pantalla 3d Led Screen Outdoor Led Video Wall P4 P5 Black White
Pantalla 3d Led Screen Outdoor Led Video Wall P4 P5 Black White
Pantalla 3d Led Screen Outdoor Led Video Wall P4 P5 Black White
Pantalla 3d Led Screen Outdoor Led Video Wall P4 P5 Black White
Pantalla 3d Led Screen Outdoor Led Video Wall P4 P5 Black White
Pantalla 3d Led Screen Outdoor Led Video Wall P4 P5 Black White
Pantalla 3d Led Screen Outdoor Led Video Wall P4 P5 Black White
Pantalla 3d Led Screen Outdoor Led Video Wall P4 P5 Black White
Pantalla 3d Led Screen Outdoor Led Video Wall P4 P5 Black White
Pantalla 3d Led Screen Outdoor Led Video Wall P4 P5 Black White
Pantalla 3d Led Screen Outdoor Led Video Wall P4 P5 Black White
Specifications
Place of Origin :
Guangdong, China
Model Number :
LI series
Brand Name :
Longvision
Packaging Details :
wooden/carton case
Supply Ability :
3000 Square Meter/Square Meters per Month
MOQ :
2 Square Meters
Price :
negotiable
Certification :
CE, ROHS, UL, FCC
Payment Terms :
T/T
Delivery Time :
7-20 work days
Application :
outdoor, Outdoor fixed
Color :
black, White Color
Panel Size :
800*800*91.55mm
Pixel Pitch :
P4/P5/P6/P8/P10/P16
Function :
SDK
Brightness :
6500nits
Module size :
400x200mm
Refresh rate :
3840Hz
Cabinet material :
Aluminum
Viewing angle :
140H/110V
Installation :
Front or Rear
IP rate :
IP67/65
Description
Quick Details:

1. Fully front or back maintenance

2. Quick module lock & tip power box
3. Readily achieve convenient maintenance & Perfectly suit for all kinds of environment

4. Super water-proof

Enclosed-designed module which could reach IP67

5. Non-cabinet version

Direct module mounting, so that less installation structure & cost is achievable

Specification

P4.16 P5 P6.25 P8.33 P10
SMD type SMD1921 SMD1921 SMD2727 SMD2727 SMD2727
Physical density(dots/sqm) 57600 40000 25600 14400 10000
Module resolution 96X72 80X60 64X48 48X36 40X30
Module dimension 400X300 400X300 400X300 400X300 400X300
Module quantity(W×H) 2X3 / 2x4 2X3 / 2x4 2X3 / 2x4 2X3 / 2x4 2X3 / 2x4
Panel resolution(W×H) 192X216 / 192X288 160X180 / 160X240 128X144 / 128X192 96X108 / 96X144 80X90 / 80X120
Panel size(mm) 800x900 / 800X1200 800x900 / 800X1200 800x900 / 800X1200 800x900 / 800X1200 800x900 / 800X1200
Flatness(mm) ≤0.015 ≤0.015 ≤0.015 ≤0.015 ≤0.015
Maintenance mode Front & Rear Front & Rear Front & Rear Front & Rear Front & Rear
Brightness(nits) 6500 6500 6500 6500 6500
Color temperature(K) 3200-9300 optional 3200-9300 optional 3200-9300 optional 3200-9300 optional 3200-9300 optional
Grey scale 65536 65536 65536 65536 65536
Viewing angle(V/H) 160°/ 160° 160°/ 160° 160°/ 160° 160°/ 160° 160°/ 160°
Contrast ratio 5000:01:00 5000:01:00 5000:01:00 5000:01:00 5000:01:00
Frame-changing frequently 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz
Drive mode Constant current Constant current Constant current Constant current Constant current
1/6 scale 1/6 scale 1/6 scale 1/3 scale 1/2 scale
Refresh rate 3840 3840 3840 3840 3840
Max power consumption(W/m2) 600-800 600-800 600-800 600-800 600-800
Avg. power consumption(W/m2) 100-200 100-200 100-200 100-200 100-200
Electric power requirements AC90-264V AC90-264V AC90-264V AC90-264V AC90-264V
47-63Hz 47-63Hz 47-63Hz 47-63Hz 47-63Hz

Pantalla 3d Led Screen Outdoor Led Video Wall P4 P5 Black White

Pantalla 3d Led Screen Outdoor Led Video Wall P4 P5 Black White

6. Air valve

Avoid the distortion of module caused by air pressure
Pantalla 3d Led Screen Outdoor Led Video Wall P4 P5 Black White

7. Isosceles trapezoid module design

90° corner & curved display are available, Added thermal management, Additional aluminum board for the heat dissapation of dense pixels (P4.1)
Pantalla 3d Led Screen Outdoor Led Video Wall P4 P5 Black White

Pantalla 3d Led Screen Outdoor Led Video Wall P4 P5 Black White

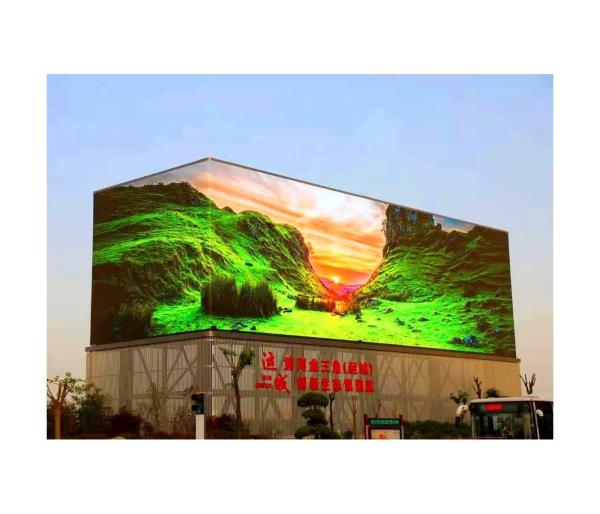

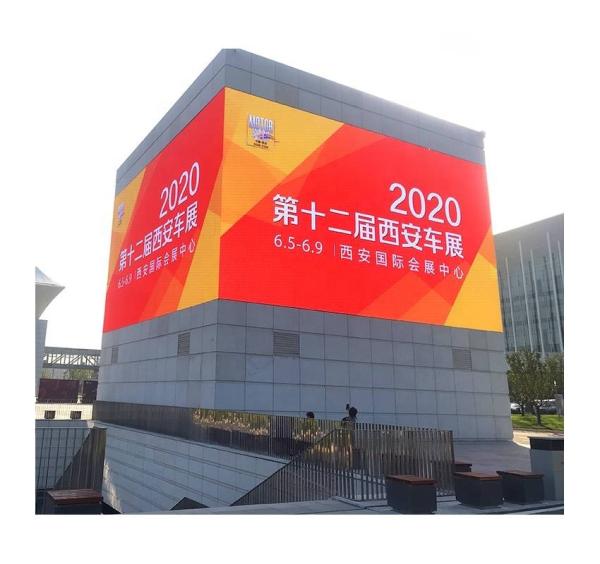

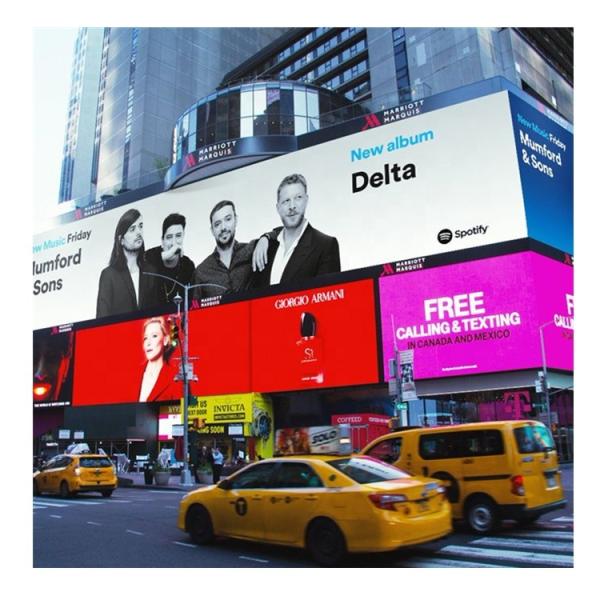

Application
Pantalla 3d Led Screen Outdoor Led Video Wall P4 P5 Black White
Pantalla 3d Led Screen Outdoor Led Video Wall P4 P5 Black White
Pantalla 3d Led Screen Outdoor Led Video Wall P4 P5 Black White
FAQ

Q1. What about LED Display MOQ?

A1. Any quantity is acceptable for your order. And the price is negotiable for large quantity.
Q2. What about Longvision capacity?
A2.3000sqm per month. 8 modernized dust-free and static-free production lines, 6 new YAMAHA and PANASONIC high speed SMT machines, 2 large leadless reflow oven,250 skilled workers.
Q3. When will you make the delivery?
A3. 3-5 working days when we have LED module stock,10-15 days for the new production led finished screen according to the size and quantities of your order.
Q4. How about the warranty time?
A4. Our standard is 2 years.But you are willing to pay extra money for after sales and adopt industry top quality material, we can accept 3-5 years warranty.
Q5. Do you provide any free spare parts in each order?
A5. Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED lamp, IC, mask, power supply, receiving card, etc.
Q6. What`s trade terms you accept?
A6. We accept EXW,CIF,CNF,DDP,DDU etc
