P5.9 SDK Led Screens For Events Outdoor Led Video Display
P5.9 SDK Led Screens For Events Outdoor Led Video Display
P5.9 SDK Led Screens For Events Outdoor Led Video Display
P5.9 SDK Led Screens For Events Outdoor Led Video Display
P5.9 SDK Led Screens For Events Outdoor Led Video Display
P5.9 SDK Led Screens For Events Outdoor Led Video Display
P5.9 SDK Led Screens For Events Outdoor Led Video Display
P5.9 SDK Led Screens For Events Outdoor Led Video Display
P5.9 SDK Led Screens For Events Outdoor Led Video Display
P5.9 SDK Led Screens For Events Outdoor Led Video Display
P5.9 SDK Led Screens For Events Outdoor Led Video Display
P5.9 SDK Led Screens For Events Outdoor Led Video Display
Specifications
Place of Origin :
Guangdong, China
Model Number :
LR-L series
Brand Name :
Longvision
Packaging Details :
Flight case
Supply Ability :
3000 Square Meter/Square Meters per Month
MOQ :
4 Sets
Price :
$219.00 - $528/Set
Certification :
CE FCC ROHS UL CCC
Payment Terms :
D/P, T/T, Western Union, MoneyGram
Delivery Time :
4-7 Days
Application :
DJ booth, Live Events Led Display, Club, Adervertising /rental / show, nightclub
Panel Size :
500/1000*500MM
Pixel Pitch :
P2.6/2.9/3.9/4.8/5.95
Material :
Die-casting aluminum
Module size :
250*250mm
Brightness :
1000nits
Refresh rate :
3840Hz
Viewing angle :
H160°/V160°
Life span :
LED>100000Hours
Cabinet weight :
7.5KG/cabinet
Input voltage :
AC100~240V 50 /60 HZ
Warranty :
2-5 years
Description

P5.9 SDK Led Screens For Events Outdoor Led Video Display

Advantages

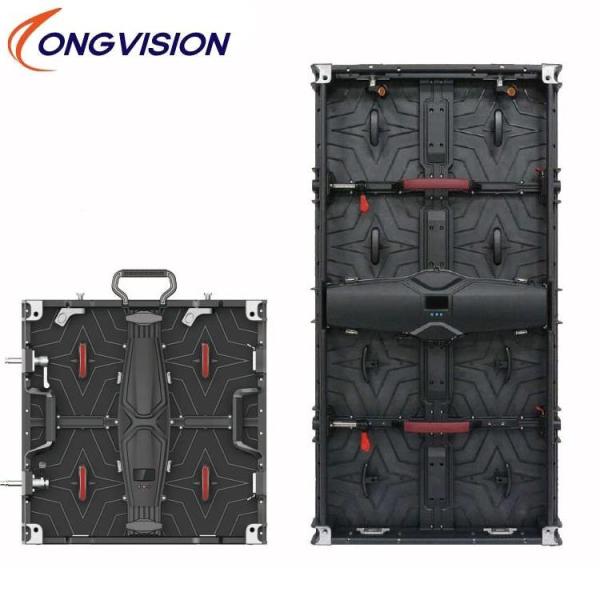

1. Optional Cabinet size: 500×500mm/500×1000mm led display screen
2. Quick Locking System! One man installation, Auto-locking system for fast and easy 1 man installation with ultimate safty and pixel protection.
3. High Refresh Rate 3840Hz ,Flatness≤0.1MM
4. High greyscale, Not only refresh rate, LR-L Series grayscale also benefits from PWM IC driver. Grayscale is smoother comparing with common IC driver especially at low grayscale.
P5.9 SDK Led Screens For Events Outdoor Led Video Display
P5.9 SDK Led Screens For Events Outdoor Led Video Display
P5.9 SDK Led Screens For Events Outdoor Led Video Display
P5.9 SDK Led Screens For Events Outdoor Led Video Display
P5.9 SDK Led Screens For Events Outdoor Led Video Display
P5.9 SDK Led Screens For Events Outdoor Led Video Display
P5.9 SDK Led Screens For Events Outdoor Led Video Display
P5.9 SDK Led Screens For Events Outdoor Led Video Display
P5.9 SDK Led Screens For Events Outdoor Led Video Display
P5.9 SDK Led Screens For Events Outdoor Led Video Display
P5.9 SDK Led Screens For Events Outdoor Led Video Display
P5.9 SDK Led Screens For Events Outdoor Led Video Display
P5.9 SDK Led Screens For Events Outdoor Led Video Display
P5.9 SDK Led Screens For Events Outdoor Led Video Display
P5.9 SDK Led Screens For Events Outdoor Led Video Display

Specifications
Model
LR 2.84
LR 3.91
LR 3.91
LR 4.81
LR 5.95
Pixel Pitch (mm)
2.84
3.91
3.91
4.8
5.95
Application
Indoor Rental
Outdoor Rental
Pixel Density (dot/m²)
147456
112896
112896
65536
43264
LED Configuration
SMD2020
SMD2020
SMD1921
SMD2727
SMD2727
Brightness (CD/m²)
≥1000nit
≥1000nit
≥5000nit
≥5000nit
≥5500nit
Module Size (mm*mm)
250*250mm
Module Resolution (dot*dot)
96*96
64*64
64*64
52*52
42*42
Cabinet Size (W*H*D)/(mm)
500*500*80 500*1000*80
Cabinet Resolution (dot*dot)
192*192
128*128
128*128
104*104
84*84
Material
Die-casting Aluminum
Angle Lock Degree
±5°,±10°
Cabinet Weight (±0.25kg)
7.0kg/cbn
7.0kg/cbn
7.5kg/cbn
7.5kg/cbn
7.5kg/cbn
Viewing Angle
Horizontal:140° Vertical:140°
Refresh Rate (Hz)
≥1920hz / ≥3840hz
Viewing Distance (m)
>2.84m
>3.91
>4.81
>5.95
Gray Scale (bit)
14bit
Max/Avg. Consumption (W/m²)
480W/180W
500W/200W
560W/220W
600W/250W
650W/280W
AC Input (V)
100～240V
100～240V
100～240V
100～240V
100～240V
AC Frequency (Hz)
50～60Hz
50～60Hz
50～60Hz
50～60Hz
50～60Hz
Waterproof Level
IP43
IP43
IP65
IP65
IP65
Maintenance
100% Front & Rear Service
Control system
Nova/Linsn/Colorlight..

FAQ :
Q1. What about LED Display MOQ?
A1. Any quantity is acceptable for your order. And the price is negotiable for large quantity.

Q2. What about Longvision capacity?
A2.3000sqm per month.
8 modernized dust-free and static-free production lines,
6 new YAMAHA and PANASONIC high speed SMT machines,
2 large leadless reflow oven
250 skilled workers.

Q3. When will you make the delivery?
A3. 3-5 working days when we have LED module stock
10-15 days for the new production led finished screen according to the size and quantities of your order.

Q4. How about the warranty time?
A4. Our standard is 2 years.
But you are willing to pay extra money for after sales and adopt industry top quality material,we can accept 3-5 years warranty.

Q5. Do you provide any free spare parts in each order?
A5. Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED
lamp, IC, mask, power supply, receiving card, etc.

Q6. What`s trade terms you accept?
A6. We accept EXW,CIF,CNF,DDP,DDU etc
