Specifications
Place of Origin :
Guangdong, China
Model Number :
TS series
Brand Name :
Longvision
Packaging Details :
wooden/carton case
Supply Ability :
3000 Square Meter/Month
Price :
negotiable
Certification :
CE, ROHS, UL, FCC
MOQ :
1 square meter
Payment Terms :
T/T
Delivery Time :
7-20 work days
Application :
Indoorand Outdoor use
Color :
White/ Black

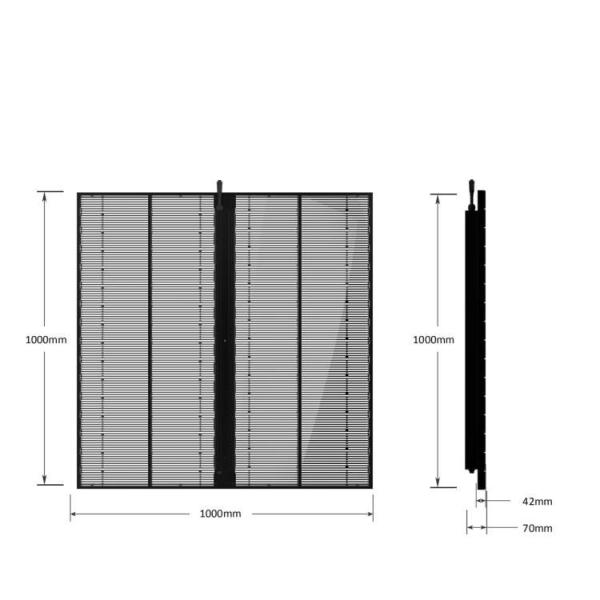

Panel Size :
1000*1000mm 1000*500mm
Pixel Pitch :
P2.8 P3.9 P7.8 p15
Brightness :
800~4000nits
Warranty :
2 years
Refresh rate :
3840Hz
Led type :
SMD 1921
IP rate :
65
Input voltage :
AC 100-240V 50/60Hz
Description
Glass Transparent Video Led Curtain Screen Panel For Concerts P2.8 P3.91 P7.8
Advantages
1. Transparent screen: front lighting transparent led screen adoptsmodular design, with high transparency, energy saving and environmental protection.
2. can be taken Installation methods such as lifting and standing.
3. There are several standard sizes of 1000x1000mm, 1000x500mm,500x500mm to fit different project sizes.
Product Discription
Glass Transparent Video Led Curtain Screen Panel For Concerts P2.8 P3.91 P7.8Glass Transparent Video Led Curtain Screen Panel For Concerts P2.8 P3.91 P7.8Glass Transparent Video Led Curtain Screen Panel For Concerts P2.8 P3.91 P7.8Glass Transparent Video Led Curtain Screen Panel For Concerts P2.8 P3.91 P7.8
Application
Glass Transparent Video Led Curtain Screen Panel For Concerts P2.8 P3.91 P7.8
Glass Transparent Video Led Curtain Screen Panel For Concerts P2.8 P3.91 P7.8
Glass Transparent Video Led Curtain Screen Panel For Concerts P2.8 P3.91 P7.8
Glass Transparent Video Led Curtain Screen Panel For Concerts P2.8 P3.91 P7.8
Specifications
Mode
TS2.84
TS3.91
TS7.81
LEDs
1R1G1B
1R1G1B
1R1G1B
LED type
SMD1415
SMD1921
SMD1921
Pixel pitch
W2.84mm*H6.25mm
W3.91mm*H7.81mm
W7.81mm*H7.81mm
Unit size
W1000mm*H500mm*D50mm
Unit resolution
352*80dots
256*64 dots
128*64 dots
Resolution
56320dots/㎡
32768dots/㎡
16384dots/㎡
Transparency rate
60%
70%
60%
Brightness
3000CD/㎡
800/1500/4000/5000CD/㎡
4000CD/㎡
Cabinet Weight
5KG
5KG
6KG
Max consumption
800W/㎡
Adv consumption
240W/㎡
Refresh rate
≥3851Hz
≥3840Hz
≥1920Hz
Working temperature
﹣10℃~51℃
﹣10℃~40℃
﹣10℃~40℃
Life time
≥100,000 hours
Input voltage
AC170~240V
Mode
TS10.42
TS15.625
TS20
LEDs
1R1G1B
1R1G1B
1R1G1B
LED type
SMD1921
SMD3535
SMD3535
Pixel pitch
W10.42mm*H10.42mm
W15.625mm*H15.625mm
W10mm*H20mm
Unit size
W1000mm*H500mm*D50mm
Unit resolution
96*48dots
64*32dots
48*24dots
Resolution
9216dots/㎡
4096dots/㎡
2304dots/㎡
Transparency rate
65%
75%
85%
Brightness
4000CD/㎡
4000CD/㎡
4000CD/㎡
Cabinet Weight
6KG
6KG
6KG
Max consumption
700W/㎡
600W/㎡
500W/㎡
Adv consumption
200W/㎡
180W/㎡
150W/㎡
Refresh rate
≥3851Hz
≥3840Hz
≥1920Hz
Working temperature
﹣10℃~51℃
﹣10℃~40℃
﹣10℃~40℃
Life time
≥100,000 hours
Input voltage
AC170~240V

FAQ

Q1. What about LED Display MOQ?
A1. Any quantity is acceptable for your order. And the price is negotiable for large quantity.
Q2. What about Longvision capacity?
A2.3000sqm per month. 8 modernized dust-free and static-free production lines, 6 new YAMAHA and PANASONIC high speed SMT machines, 2 large leadless reflow oven,250 skilled workers.
Q3. When will you make the delivery?
A3. 3-5 working days when we have LED module stock,10-15 days for the new production led finished screen according to the size and quantities of your order.
Q4. How about the warranty time?
A4. Our standard is 2 years.But you are willing to pay extra money for after sales and adopt industry top quality material, we can accept 3-5 years warranty.
Q5. Do you provide any free spare parts in each order?
A5. Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED lamp, IC, mask, power supply, receiving card, etc.
Q6. What`s trade terms you accept?
A6. We accept EXW,CIF,CNF,DDP,DDU etc
