Super Slim 4 In 1 Fine Pixel Pitch Mini Led Wall Pitch Display P1.2 P1.5 P1.8 P2.5
Super Slim 4 In 1 Fine Pixel Pitch Mini Led Wall Pitch Display P1.2 P1.5 P1.8 P2.5
Super Slim 4 In 1 Fine Pixel Pitch Mini Led Wall Pitch Display P1.2 P1.5 P1.8 P2.5
Super Slim 4 In 1 Fine Pixel Pitch Mini Led Wall Pitch Display P1.2 P1.5 P1.8 P2.5
Super Slim 4 In 1 Fine Pixel Pitch Mini Led Wall Pitch Display P1.2 P1.5 P1.8 P2.5
Super Slim 4 In 1 Fine Pixel Pitch Mini Led Wall Pitch Display P1.2 P1.5 P1.8 P2.5
Super Slim 4 In 1 Fine Pixel Pitch Mini Led Wall Pitch Display P1.2 P1.5 P1.8 P2.5
Super Slim 4 In 1 Fine Pixel Pitch Mini Led Wall Pitch Display P1.2 P1.5 P1.8 P2.5
Super Slim 4 In 1 Fine Pixel Pitch Mini Led Wall Pitch Display P1.2 P1.5 P1.8 P2.5
Super Slim 4 In 1 Fine Pixel Pitch Mini Led Wall Pitch Display P1.2 P1.5 P1.8 P2.5
Super Slim 4 In 1 Fine Pixel Pitch Mini Led Wall Pitch Display P1.2 P1.5 P1.8 P2.5
Super Slim 4 In 1 Fine Pixel Pitch Mini Led Wall Pitch Display P1.2 P1.5 P1.8 P2.5
Specifications
Place of Origin :
Guangdong, China
Model Number :
VL SERIES
Brand Name :
Longvison
Packaging Details :
wooden/carton case
Supply Ability :
3000 Square Meter/Square Meters per Month
MOQ :
1 Square Meters
Price :
$-589-$1300.00/Square Meter
Certification :
CE FCC UL CCC ROHS
Payment Terms :
D/P, T/T, Western Union, MoneyGram
Delivery Time :
5- 8 days
Application :
TV studio, Basketball, Live Events Led Display, monitor room, Advertising Video Wall Screen for Mall
Panel Size :
480*480mm
Pixel Pitch :
1.2mm 1.5mm 1.8mm 2.5mm
Material :
Die-casting aluminum
Life span :
LED>100000Hours
LED type :
SMD1010 (3in1)/ 1212/1515/2121
Refresh rate :
3840-7680Hz
Viewing angle :
V 160°/ H 140°
Package :
Plywood Case
Port :
Shenzhen port
Description

Super Slim 4 In 1 Fine Pixel Pitch Mini Led Wall Pitch Display P1.2 P1.5 P1.8 P2.5

Advantages
1. High Precision: all-in-one design with die-casting aluminum fashioning technology
2. 100% Front Maintenance:all components dismount from front side,
fast and easy
3. Wireless Connection: adopt hard-wired connector, support hot plug to dismounting easily
4. Fast Heat Dissipation: multi-point heat emission holes speed up efficiency of heat dissipation

Super Slim 4 In 1 Fine Pixel Pitch Mini Led Wall Pitch Display P1.2 P1.5 P1.8 P2.5
Super Slim 4 In 1 Fine Pixel Pitch Mini Led Wall Pitch Display P1.2 P1.5 P1.8 P2.5
Super Slim 4 In 1 Fine Pixel Pitch Mini Led Wall Pitch Display P1.2 P1.5 P1.8 P2.5
Super Slim 4 In 1 Fine Pixel Pitch Mini Led Wall Pitch Display P1.2 P1.5 P1.8 P2.5
Super Slim 4 In 1 Fine Pixel Pitch Mini Led Wall Pitch Display P1.2 P1.5 P1.8 P2.5
Super Slim 4 In 1 Fine Pixel Pitch Mini Led Wall Pitch Display P1.2 P1.5 P1.8 P2.5
Super Slim 4 In 1 Fine Pixel Pitch Mini Led Wall Pitch Display P1.2 P1.5 P1.8 P2.5

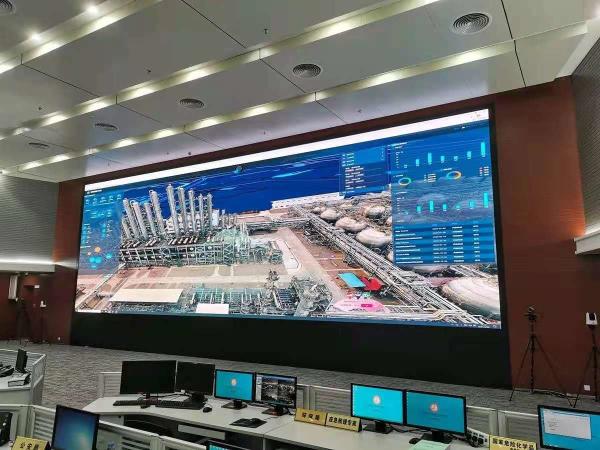

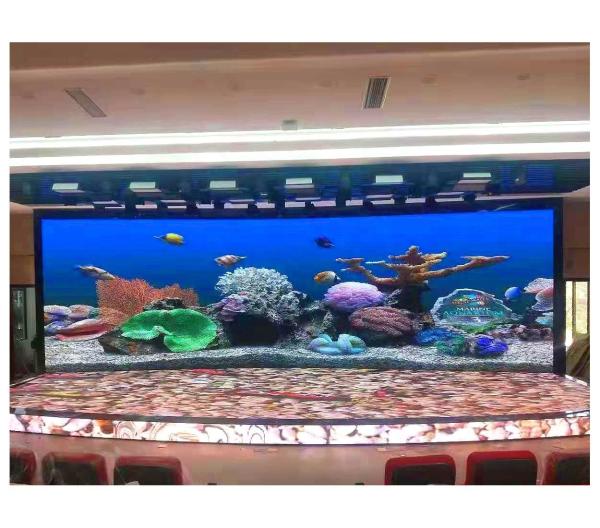

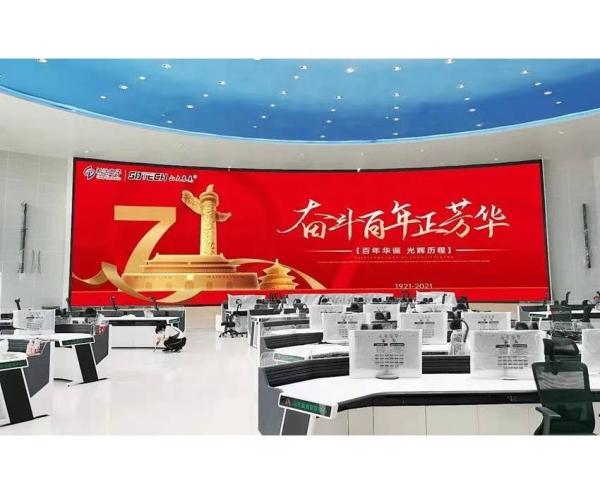

Applications:
Fine pitch Indoor LED display screenhas good color performance, low energy consumption
characteristics, small spacing LED display can meet the requirements of high quality of suitable
for indoor conference room, exhibition hall, teaching and training, hotel banquet hall, indoor office
building, shopping mall propaganda screen, TV studio and so on.
Super Slim 4 In 1 Fine Pixel Pitch Mini Led Wall Pitch Display P1.2 P1.5 P1.8 P2.5
Super Slim 4 In 1 Fine Pixel Pitch Mini Led Wall Pitch Display P1.2 P1.5 P1.8 P2.5
Super Slim 4 In 1 Fine Pixel Pitch Mini Led Wall Pitch Display P1.2 P1.5 P1.8 P2.5
Super Slim 4 In 1 Fine Pixel Pitch Mini Led Wall Pitch Display P1.2 P1.5 P1.8 P2.5
Super Slim 4 In 1 Fine Pixel Pitch Mini Led Wall Pitch Display P1.2 P1.5 P1.8 P2.5
Specifications
Model
VL4912
VL4915
VL4918
VL4925
Pixel Pitch(mm)
1.29mm
1.579mm
1.875mm
2.5mm
Application
Indoor UHD
Indoor UHD
Indoor UHD
Indoor UHD
Pixel Density (dots/m²)
600586
401084
284444
160000
LED Type
SMD1010
SMD1010
SMD1515
SMD2121
SMD1212
Brightness (cd/m²)
200~800nit adjustable
Module Size (mm*mm)
240mm*240mm
Module Resolution (dots*dots)
186*186
152*152
128*128
96*96
Cabinet Size (W*H*D)
480*480*60mm/960*480*60mm
Cabinet Resolution (dots*dots)
372*372/744*372
304*304/608*304
256*256/512*256
192*192/384*192
Cabinet Material
Die-casting Aluminum
Cabinet Weight (±0.25kg)
26kg/m²
Viewing Angle (Deg)
H:160°/V:140°
Refresh Rate (Hz)
>3840Hz
Viewing Distance (m)
>1m
>1.5m
>2m
>2.5m
Gray Scale (bit)
14-16bit
Max./Avg. Power Consumption(m²)
600W/100W~300W
AC Power Input(V)
AC 200～240V
AC Power Frequency (Hz)
50～60Hz
Level of Protection
Front: IP41/Rear: IP20
Maintenance
100% Front Service

FAQ:

Q1. What about LED Display MOQ?
A1. Any quantity is acceptable for your order. And the price is negotiable for large quantity.

Q2. What about Longvision capacity?
A2.3000sqm per month.
8 modernized dust-free and static-free production lines,
6 new YAMAHA and PANASONIC high speed SMT machines,
2 large leadless reflow oven
250 skilled workers.

Q3. When will you make the delivery?
A3. 3-5 working days when we have LED module stock
10-15 days for the new production led finished screen according to the size and quantities of your order.

Q4. How about the warranty time?
A4. Our standard is 2 years.
But you are willing to pay extra money for after sales and adopt industry top quality material,we can accept 3-5 years warranty.

Q5. Do you provide any free spare parts in each order?
A5. Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED lamp, IC, mask, power supply, receiving card, etc.

Q6. What`s trade terms you accept?
A6. We accept EXW,CIF,CNF,DDP,DDU etc
