P1.2 P1.5 P1.8 Full HD Pixel Pitch Led Screen HDR Display
P1.2 P1.5 P1.8 Full HD Pixel Pitch Led Screen HDR Display
P1.2 P1.5 P1.8 Full HD Pixel Pitch Led Screen HDR Display
P1.2 P1.5 P1.8 Full HD Pixel Pitch Led Screen HDR Display
P1.2 P1.5 P1.8 Full HD Pixel Pitch Led Screen HDR Display
P1.2 P1.5 P1.8 Full HD Pixel Pitch Led Screen HDR Display
P1.2 P1.5 P1.8 Full HD Pixel Pitch Led Screen HDR Display
P1.2 P1.5 P1.8 Full HD Pixel Pitch Led Screen HDR Display
P1.2 P1.5 P1.8 Full HD Pixel Pitch Led Screen HDR Display
P1.2 P1.5 P1.8 Full HD Pixel Pitch Led Screen HDR Display
Specifications
Place of Origin :
Guangdong, China
Model Number :
UA series
Brand Name :
Longvision
Packaging Details :
wooden/carton case
Supply Ability :
3000 Square Meter/Square Meters per Month
MOQ :
1 Sets
Price :
$199.00-$499/Pcs
Certification :
CE UL ROHS CCC
Payment Terms :
Western Union, MoneyGram, D/P
Application :
Indoor TV ,meeting room, shopping mall, church, showing room
Panel Size :
640mm*480mm
Pixel Pitch :
P1.2 P1.5 P1.8
Material :
Die-casting aluminum
Warranty :
2 years
LED type :
SMD1515 (3in1)/ 1212
Voltage :
AC100~240v 5O/60HZ
Weight :
6.5 kg
Package :
Plywood wooden Case
Description

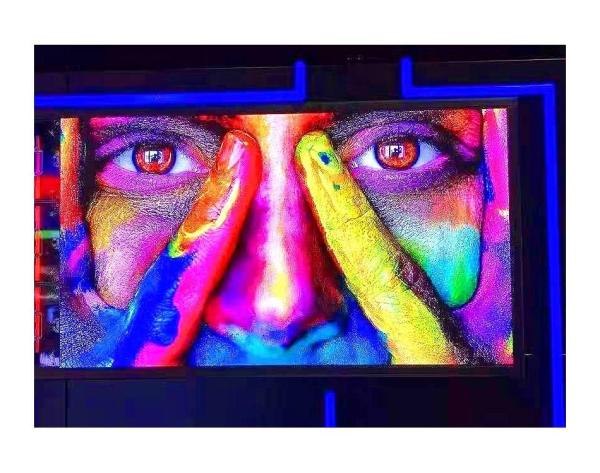

P1.2 P1.5 P1.8 Full HD Pixel Pitch Led Screen HDR Display

Advantage:

1. Ultra-light, Ultra-thin- Magnesium alloy die casting, single cabinet weight is only 6KG.
Cabinet size:640mm*480mm*50mm
2. Wide Viewing Angle ·Viewing Angle: 160°(horz.), 160°(vert.)
3. Excellent Visual Effect: Low brightness with high gray level and high refresh rate,
stable dynamic display effect and the visual experience is more comfortable.
4. High Reliability: Power and signal dual backup

P1.2 P1.5 P1.8 Full HD Pixel Pitch Led Screen HDR Display
P1.2 P1.5 P1.8 Full HD Pixel Pitch Led Screen HDR Display
P1.2 P1.5 P1.8 Full HD Pixel Pitch Led Screen HDR Display
P1.2 P1.5 P1.8 Full HD Pixel Pitch Led Screen HDR Display
P1.2 P1.5 P1.8 Full HD Pixel Pitch Led Screen HDR Display
P1.2 P1.5 P1.8 Full HD Pixel Pitch Led Screen HDR Display
Specifications
Model
VA 1.2
VA 1.5
VA 1.6
VA 1.8
VA 1.8
Pixel Pitch
1.25
1.53
1.667
1.83
1.86
Application
UHD Display
Pixel Density
640000 dots/m²
427186 dots/m²
360000 dots/m²
298605 dots/m²
289050 dots/m²
LED Type
SMD1010
SMD1212
SMD1212
SMD1515
SMD1515
Brightness
＞700cd/m²
＞700cd/m²
＞700cd/m²
＞700cd/m²
＞700cd/m²
Module Size
320*160 mm
320*160 mm
320*160 mm
320*160 mm
320*160 mm
Module Resolution
256*128
208*104
192*96
174*87
172*86
Cabinet Size
640*480 mm
640*480 mm
640*480 mm
640*480 mm
640*480 mm
Cabinet Resolution
512*384
416*312
384*288
348*261
344*258
Cabinet Material
Die-casting Aluminum
Cabinet Weight
7kg/cbn
Viewing Angle
H:160° / V:140°
Refresh Rate
≥3840Hz
Viewing Distance
1.2m~15m
1.5m~20m
1.6m~25m
1.8m~30m
1.8m~30m
Gray Scale
14~16bit
Max Power Consumption
700W/m²
700W/m²
800W/m²
800W/m²
800W/m²
Avg. Power Consumption
350W/m²
350W/m²
400W/m²
400W/m²
400W/m²
Power Input
AC 100～240V
Frequency
50～60Hz
Maintenance
100% Front Service
Operating Temperature
-20℃～50℃
Operating Humidity
10%～95%
Lifetime
100,000H

Applications:

Small Pixel LED display are widely used in different applications, the main application fields

are command and dispatch center, security monitoring, video conference, exhibition, radio and

television studio, meteorological information center, production safety monitoring, environment

monitoring, fire protection, maritime flood control, energy, electric power, finance, securities market,

shopping malls, hotels, airports, subway and so on

P1.2 P1.5 P1.8 Full HD Pixel Pitch Led Screen HDR Display

P1.2 P1.5 P1.8 Full HD Pixel Pitch Led Screen HDR Display

P1.2 P1.5 P1.8 Full HD Pixel Pitch Led Screen HDR Display

P1.2 P1.5 P1.8 Full HD Pixel Pitch Led Screen HDR Display

P1.2 P1.5 P1.8 Full HD Pixel Pitch Led Screen HDR Display

FAQ :
Q1. What about LED Display MOQ?
A1. Any quantity is acceptable for your order. And the price is negotiable for large quantity.

Q2. What about Longvision capacity?
A2.3000sqm per month.
8 modernized dust-free and static-free production lines,
6 new YAMAHA and PANASONIC high speed SMT machines,
2 large leadless reflow oven
250 skilled workers.

Q3. When will you make the delivery?
A3. 3-5 working days when we have LED module stock
10-15 days for the new production led finished screen according to the size and quantities of your order.

Q4. How about the warranty time?
A4. Our standard is 2 years.
But you are willing to pay extra money for after sales and adopt industry top quality material,we can accept 3-5 years warranty.

Q5. Do you provide any free spare parts in each order?
A5. Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED
lamp, IC, mask, power supply, receiving card, etc.

Q6. What`s trade terms you accept?
A6. We accept EXW,CIF,CNF,DDP,DDU etc
