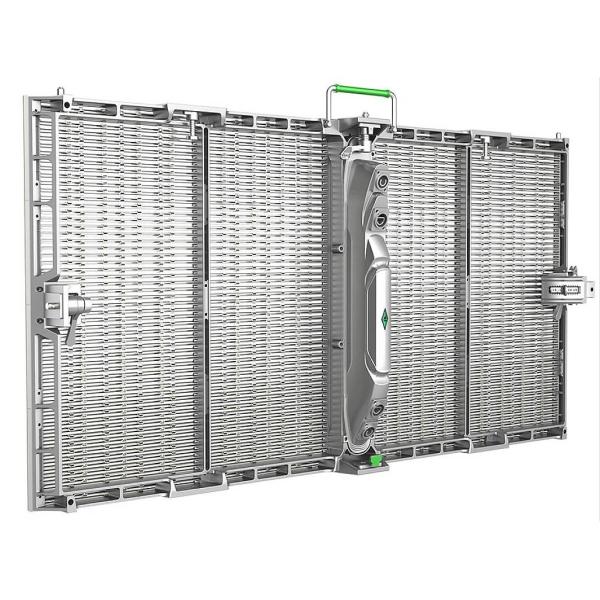

P2.8 P3.9 P7.8 P10 Outdoor Transparent Led Screen Panel For Glass Window
P2.8 P3.9 P7.8 P10 Outdoor Transparent Led Screen Panel For Glass Window
P2.8 P3.9 P7.8 P10 Outdoor Transparent Led Screen Panel For Glass Window
P2.8 P3.9 P7.8 P10 Outdoor Transparent Led Screen Panel For Glass Window
P2.8 P3.9 P7.8 P10 Outdoor Transparent Led Screen Panel For Glass Window
P2.8 P3.9 P7.8 P10 Outdoor Transparent Led Screen Panel For Glass Window
P2.8 P3.9 P7.8 P10 Outdoor Transparent Led Screen Panel For Glass Window
P2.8 P3.9 P7.8 P10 Outdoor Transparent Led Screen Panel For Glass Window
P2.8 P3.9 P7.8 P10 Outdoor Transparent Led Screen Panel For Glass Window
P2.8 P3.9 P7.8 P10 Outdoor Transparent Led Screen Panel For Glass Window
P2.8 P3.9 P7.8 P10 Outdoor Transparent Led Screen Panel For Glass Window
P2.8 P3.9 P7.8 P10 Outdoor Transparent Led Screen Panel For Glass Window
Specifications
Place of Origin :
Guangdong, China
Model Number :
LT-O series
Brand Name :
Longvision
Packaging Details :
wooden/Flight case
Supply Ability :
3000 Square Meter/Square Meters per Month
MOQ :
2 Sets
Price :
$299.00 - $550/Set
Certification :
CE FCC ROHS UL CCC
Payment Terms :
D/P, T/T, Western Union, MoneyGram
Delivery Time :
4-8 Days
Application :
Advertising in Shopping mall, Retails mall, vitrine
Color :
White Black
Panel Size :
1000*500mm 1000x1000mm 500x500mm
Pixel Pitch :
P2.9-5.2 p3.9-8.9 /p8.9-8.9/p10.4-10.4
Display Function :
Video Picture Graphic Text Message
Material :
Die-Casting Aluminum
Brightness :
1000-5000nits
Warranty :
2 -5 years
Weight :
6.5 kg
IP rate :
IP 43/IP 65
Input voltage :
AC 100-240V 50/60Hz
Port :
Shenzhen port
Description

P2.8 P3.9 P7.8 P10 Outdoor Transparent Led Screen Panel For Glass Window

Advantages
1. Waterproof IP65, Both outdoor and indoor use.Operating life of LED lamps are 100,000 hours (lit to completely extinguished)
2. High transparency without affecting lighting, more than 60-70%
3. Using high light efficient LED lights to lower energy consumption, high brightness 5000CD/sqm for day time use, when it is strong sunshine directly to the screen, it is very clear and good video performance
4. Designed for Fixed installation & Rental, I t weighs only 14 kg per sqm including all structures and power supply.portable easy to transport
P2.8 P3.9 P7.8 P10 Outdoor Transparent Led Screen Panel For Glass Window
P2.8 P3.9 P7.8 P10 Outdoor Transparent Led Screen Panel For Glass Window
P2.8 P3.9 P7.8 P10 Outdoor Transparent Led Screen Panel For Glass Window
High transparency

The transparent LED screen has about 60% transparency outdoors, and it is almost imperceptible from 5 meters away. The high resolution and transparency of the LED transparent screen provide artists and designers with more space for creation.

P2.8 P3.9 P7.8 P10 Outdoor Transparent Led Screen Panel For Glass Window

Applications:
Supestore
Transparent LED display screen is used to replace the traditional store wall, and video ads are used to replace the traditional print ads to attract consumers' attention.

P2.8 P3.9 P7.8 P10 Outdoor Transparent Led Screen Panel For Glass Window

Building curtain wall

Use buildings to serve as carriers of information.

P2.8 P3.9 P7.8 P10 Outdoor Transparent Led Screen Panel For Glass Window

Satge Rental Events

The LED transparent screen can be built according to the diversified stage shapes without hindering the stage design

P2.8 P3.9 P7.8 P10 Outdoor Transparent Led Screen Panel For Glass Window

Exhibitions
To promote products in all directions, the transparent LED screen is used in various exhibitions, such as auto shows, press conferences, etc.
P2.8 P3.9 P7.8 P10 Outdoor Transparent Led Screen Panel For Glass Window

P2.8 P3.9 P7.8 P10 Outdoor Transparent Led Screen Panel For Glass Window
P2.8 P3.9 P7.8 P10 Outdoor Transparent Led Screen Panel For Glass Window
P2.8 P3.9 P7.8 P10 Outdoor Transparent Led Screen Panel For Glass Window
P2.8 P3.9 P7.8 P10 Outdoor Transparent Led Screen Panel For Glass Window
P2.8 P3.9 P7.8 P10 Outdoor Transparent Led Screen Panel For Glass Window
P2.8 P3.9 P7.8 P10 Outdoor Transparent Led Screen Panel For Glass Window
P2.8 P3.9 P7.8 P10 Outdoor Transparent Led Screen Panel For Glass Window
P2.8 P3.9 P7.8 P10 Outdoor Transparent Led Screen Panel For Glass Window
Specifications
Mode
LTO 3.9-8.9
LTO 8.9-8.9
LTO10.4-10.4
LED
1R1G1B
1R1G1B
1R1G1B
LED type
SMD1921
SMD1921
SMD2727
Pixel pitch
W3.91mm*H8.9mm
W8.9mm*H8.9mm
W10.4mm*H10.4mm
Unit size
W1000mm*H500mm
Unit resolution
252*56dots
112*56 dots
96*48 dots
Resolution
28672dots/㎡
12544dots/㎡
9216dots/㎡
Transparency rate
50%
55%
60%
Brightness
5000CD/㎡
5000CD/㎡
5000CD/㎡
Cabinet Weight
7.5KG
7.5KG
7.5KG
Max consumption
800W/㎡
Adv consumption
260W/㎡
Refresh rate
≥3840Hz
≥3840Hz
≥1920Hz
Working temperature
﹣10℃~51℃
﹣10℃~50℃
﹣10℃~50℃
Life time
≥100,000 hours
Input voltage
AC110~240V
FAQ :
Q1. What about LED Display MOQ?
A1. Any quantity is acceptable for your order. And the price is negotiable for large quantity.

Q2. What about Longvision capacity?
A2.3000sqm per month.
8 modernized dust-free and static-free production lines,
6 new YAMAHA and PANASONIC high speed SMT machines,
2 large leadless reflow oven
250 skilled workers.

Q3. When will you make the delivery?
A3. 3-5 working days when we have LED module stock
10-15 days for the new production led finished screen according to the size and quantities of your order.

Q4. How about the warranty time?
A4. Our standard is 2 years.
But you are willing to pay extra money for after sales and adopt industry top quality material,we can accept 3-5 years warranty.

Q5. Do you provide any free spare parts in each order?
A5. Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED
lamp, IC, mask, power supply, receiving card, etc.

Q6. What`s trade terms you accept?
A6. We accept EXW,CIF,CNF,DDP,DDU etc
