Advantages |
1. Clear picture without flicker and distortion.No light leakage trouble.
2. Three-proof treatment of key parts: moisture-proof, anti-corrosion, anti-ultraviolet. They have the good weather resistance, which can also adapt to harsh environments.

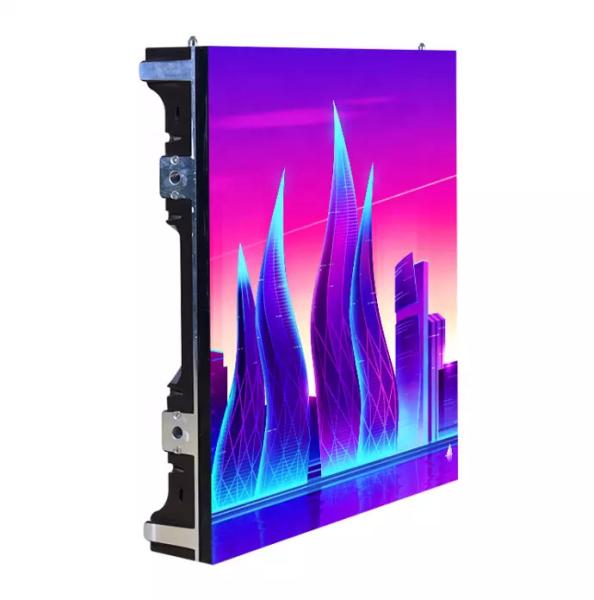

3. High refresh rate and gray scale ensures the picture quality remains seamless. 3840hz high refresh rate and 16bit gray scale 4. Ultra-thin cabinet, the whole cabinet is made of aluminum alloy or magnesium alloy material, Faster and easier installation within 5 seconds ![]() This cabinet 500x1000mm, weight is only 12.5kg, fast installation in events, widely used in different applications, conference, weddings, large concerts, lauch events, broadcasting TV show and so on. ![]() ![]()
|
Specifications | | | | | | |||||
Model | A-P2.84 | A-3.91 | A-3.91 | A-4.81 | A-5.95 | |||||
Pixel Pitch (mm) | 2.84 | 3.91 | 3.91 | 4.8 | 5.95 | |||||
Application | Indoor Rental | | Outdoor Rental | | | |||||
Pixel Density (dot/m²) | 147456 | 112896 | 112896 | 65536 | 43264 | |||||
LED Configuration | SMD2020 | SMD2020 | SMD1921 | SMD2727 | SMD2727 | |||||
Brightness (CD/m²) | ≥1000nit | ≥1000nit | ≥5000nit | ≥5000nit | ≥5500nit | |||||
Module Size (mm*mm) | 250*250mm | | | | | |||||
Module Resolution (dot*dot) | 96*96 | 64*64 | 64*64 | 52*52 | 42*42 | |||||
Cabinet Size (W*H*D)/(mm) | 500*500*80 | | | | | |||||
Cabinet Resolution (dot*dot) | 192*192 | 128*128 | 128*128 | 104*104 | 84*84 | |||||
Material | Die-casting Aluminum | | | | | |||||
Angle Lock Degree | ±5°,±10° | | | | | |||||
Cabinet Weight (±0.25kg) | 7.0kg/cbn | 7.0kg/cbn | 7.5kg/cbn | 7.5kg/cbn | 7.5kg/cbn | |||||
Viewing Angle | Horizontal:140° Vertical:140° | | | | | |||||
Refresh Rate (Hz) | ≥1920hz / ≥3840hz | | | | | |||||
Viewing Distance (m) | >2.84m | >3.91 | | >4.81 | >5.95 | |||||
Gray Scale (bit) | 14bit | | | | | |||||
Max/Avg. Consumption (W/m²) | 480W/180W | 500W/200W | 560W/220W | 600W/250W | 650W/280W | |||||
AC Input (V) | 100~240V | 100~240V | 100~240V | 100~240V | 100~240V | |||||
AC Frequency (Hz) | 50~60Hz | 50~60Hz | 50~60Hz | 50~60Hz | 50~60Hz | |||||
Waterproof Level | IP43 | IP43 | IP65 | IP65 | IP65 | |||||
Maintenance | 100% Front & Rear Service | | | | | |||||
Control system | Nova/Linsn/Colorlight.. | | | | |
Applications:

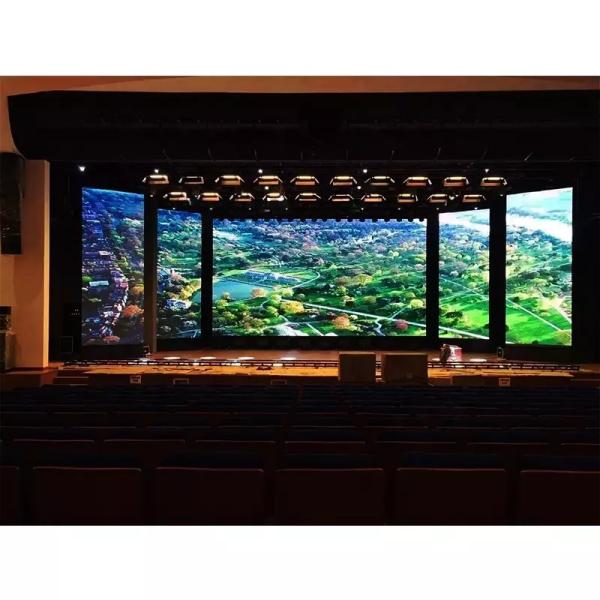

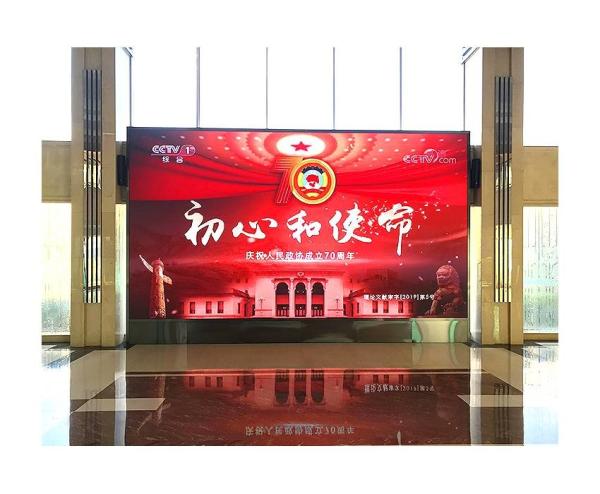

Widely used in billboards, highways, railway tunnels, bridges, squares, stadiums, tparking lots, building walls, hotel, meeting room, offices , hospital , schools , flactories , commercial lighting , shopping malls, supermarkets,concerts,TV show and so on
A1: Longvision is a professional LED display manufacturer, having been enrolled in led display industry
