Specifications
Brand Name :
LONGVISION
Model Number :
P6
Certification :
CE ROHS FCC
Place of Origin :
China
MOQ :
1 square meters
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
3000 square meters
Delivery Time :
7 to 20 days
Packaging Details :
Air case, wooden case
module name :
P3.91
Pixels :
3.91mm
Brightness :
6500 cd/㎡
Pixel Constitution :
3.91mm
Life span :
100000 Hours
Specificatio :
Video Wall
use :
Outdoor rental stage activity screen
frame :
alumnim and iron cabinet
Application :
Outdoor, Semi-outdoor
Description
  • video wall rental P3.91 Outdoor stage concert advertising screen

Product Specification
No.
Item
Parameter
Parameter
Parameter
1
Pitch
P2.976
P3.91
P4.81
2
Pixel Configuration
SMD 2727
SMD 2727
SMD 2727
3
Cabinet size
500*500 mm
500*500 mm
500*500 mm
4
Cabinet Resolution
168x168 dots
128x128 dots
104x104 dots
5
Module size
250*250 mm
250*250 mm
250*250 mm
6
Module Resolution
84x84 dots
64x64 dots
52x52 dots
7
Pixel Density
112896 dots/㎡
65536 dots/㎡
43264 dots/㎡
8
Cabinet Weight
7.5 KG
7.5 KG
7.5 KG
9
Scan mode
21s
16s
13s
10
Brightness
6500 cd/㎡
6500 cd/㎡
6500 cd/㎡
11
Gray level
16 bits
16 bits
16 bits
12
Refresh rate
≥3840hz
≥3840hz
≥3840hz
13
Power Consumption
Average:300W/㎡Max:800W/㎡
Average:300W/㎡Max:800W/㎡
Average:300W/㎡Max:800W/㎡
14
Protective Grade
IP65
IP65
IP65
15
LED Arrangement
3 in 1
3 in 1
3 in 1
16
Cabinet Material
Die casting aluminum
Die casting aluminum
Die casting aluminum
17
Temperature-operating
﹣20℃~50℃
﹣20℃~50℃
﹣20℃~50℃
18
Voltage (V)
AC: 220 /380 ±10 %, 50 Hz
AC: 220 /380 ±10 %, 50 Hz
AC: 220 /380 ±10 %, 50 Hz
19
Controlling system
Nova
Nova
Nova
20
Warranty
3 years
3 years
3 years

Product Discription

1. Model number of modules:P3.91 Cabinet size:500X500mm

2.Outdoor brightness:6500

3.cabinet material is made of die-cast aluminum cabinet

LED display screen Advantages
1. P3.91 with a new design of high quality special locking

2.Can be unique creative shape stitching for various occasions

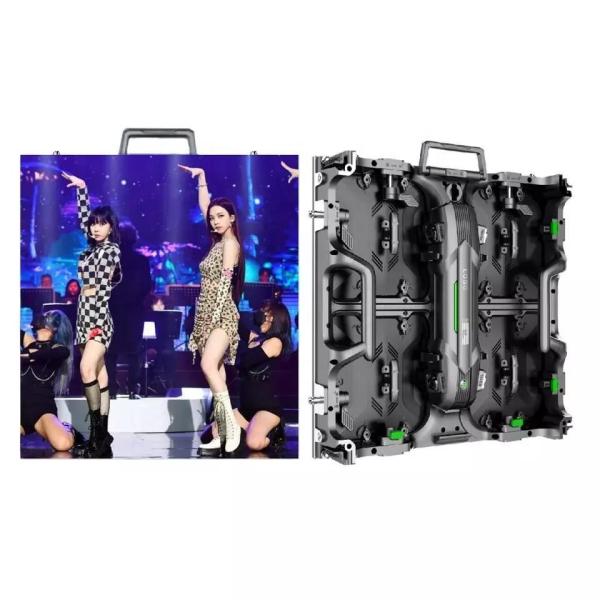

P2.976 Full Color Outdoor LED Display Panels 500x500mm Cabinets Front Open

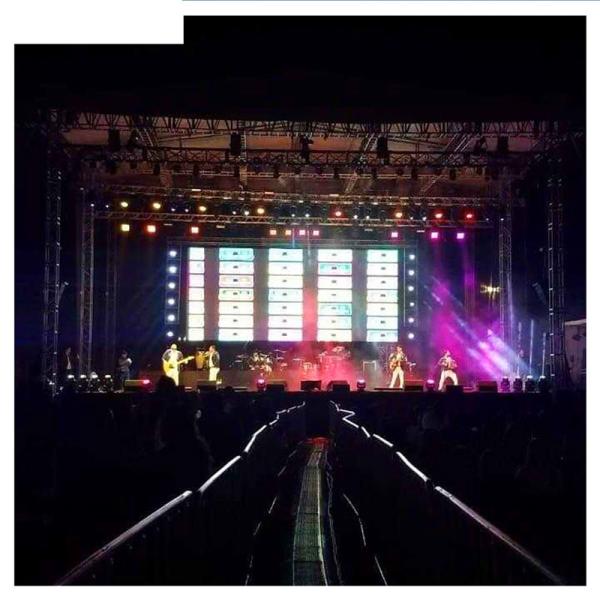

Outdoor use Cases

1.Fixed advertising installation

2.It can be hung from a truss for different activities, or it can be fixed to mount advertisements. After adding the top protection pad and the ground support bracket, it can be used for the perimeter shielding of the football field

P2.976 Full Color Outdoor LED Display Panels 500x500mm Cabinets Front Open

Our services and logistics

1.12 years professional LED display manufacturer,

2. Shooting time: 5-20 days.

3. Factory prices.

4.OEM and ODM services EXW, FOB, CIF C&F, FCA, DDU, colorful trade term.

5.We can design special products for you. 6.

7.30% deposit is for production and 70% balance is paid before shipment.

8.We have a after-sales team of 10 people

9.Our customer service is online 24 hours a day to solve your problem

10.We have 12 years of LED manufacturing technology

11.

Products can be returned or replaced at any time if there is a problem

After-sales service:

1. Service principle: Timely response, solve problems as soon as possible, and ensure use.

2. Service period: During the maintenance period of the LED display body, all maintenance fees are waived; After the warranty period, only materials are charged, and manual labor is not required.

3. Service scope: If users find any problems that cannot be solved, please contact our company, we can reply within 24 hours. In order to shorten the maintenance time, the company will deploy power supplies, chips and other spare parts.

4.Under normal use and storage, the Company will be responsible for the use and storage of the equipment.

2. Pre-sale service:

1.The company can arrange professional personnel to carry out on-site installation and commissioning in strict accordance with the requirements of the scheme and the original manual. If there are special requirements, it is necessary to modify the parts installation plan and coordinate with the user. Our company can guarantee the consistency between the completion time and the contract time. Any problems caused by natural factors or human factors, we will discuss with the customer to find a solution.

2.Our company can train users according to the manual. The training covers system use, system maintenance and equipment protection.

FAQ

1. who are we?
We are based in Guangdong, China, start from 2014,sell to North America(20.00%),Northern Europe(10.00%),Western Europe(10.00%),Southern Europe(9.00%),Eastern Asia(7.00%),Mid East(7.00%),Southeast Asia(7.00%),South America(7.00%),Central America(6.00%),Oceania(5.00%),Eastern Europe(5.00%),South Asia(5.00%),Africa(2.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
accessories,led display,led video wall,led screens,outdoor led display
4. why should you buy from us not from other suppliers?
one-stop solutions for led display and accessories and spare parts service, best price with complete solutions with all high tech and new electronics products!
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW;
Accepted Payment Currency:USD,CAD,HKD,CNY;
Accepted Payment Type: T/T,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese,Japanese,French
