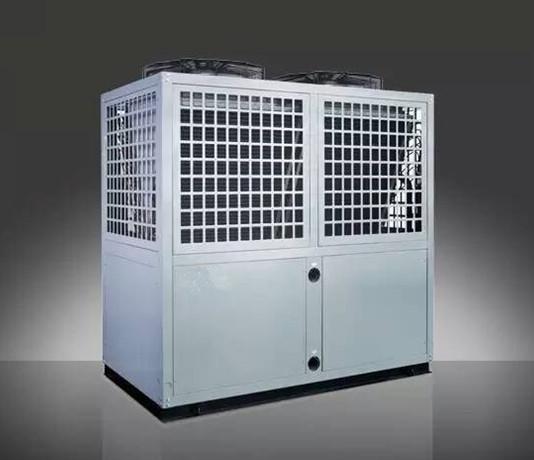

40.6 KW EVI low temperature air source heat pump for cooling and heating and hot water
40.6 KW EVI low temperature air source heat pump for cooling and heating and hot water
40.6 KW EVI low temperature air source heat pump for cooling and heating and hot water
40.6 KW EVI low temperature air source heat pump for cooling and heating and hot water
Specifications
Place of Origin :
China
Brand Name :
TRT or OEM
Certification :
CE,CB
Model Number :
TRT-100LTASHP
MOQ :
1
Price :
Negotiable
Packaging Details :
plywood
Delivery Time :
15-20 days
Payment Terms :
TT
Supply Ability :
1000 PCS a month
Description

40.6 KW EVI low temperature air source heat pump for cooling and heating and hot waterWith perfect performance at the ambient temperature as low as -25℃, the units can provide efficient heating for your house and sufficient domestic hot water for your family.

Brand Name:

EVI Low Temperature Air Source Heat Pump

Model Number:

TRT-100LTASHP

Certification:

CE/ROHS/FCC/SGS

Place of Origin:

China

Product Name

EVI low temperature air source heat pump

Application

hot water
cooling, heating

Body Size

1580*800*1600

Heating capacity

40.6 KW

COP

3.79

Compressor

Copeland

Standard

CE/ROHS/FCC/SGS

Refrigerant

R407C



Parameters

TRT-100LTASHP

Body size(W*D*H) MM

1580*800*1600

Compressor

Copeland

Refrigerant

R407C

Power supply

380V/50Hz

Condenser

Efficient tank

Thermostatic expansion valve

Danfoss

AC contactor

(220V-18A)*2

Controller

Dual system

Low-voltage switch

0.05/0.15MPa

High-voltage switch

3.0/3.6MPa

Power line connect with unit

3*6mm2+2*2.5mm2

20℃

Heating capacity (kW)

40.6

Input power (kW)

10.7

Rated current (A)

17.6

COP

3.79

Production capacity (L/H)

873

-10℃

Heating capacity (kW)

24.4

Input power (kW)

9.9

COP

2.46

Production capacity (L/H)

524

-20℃

Heating capacity (kW)

19.6

Input power (kW)

9.8

COP

2.00

Production capacity (L/H)

421

-25℃

Heating capacity (kW)

19

Input power (kW)

10.1

COP

1.88

Production capacity (L/H)

408

Rated outlet hot water temperature (℃)

55

Highest outlet hot water temperature(℃)

60

IP Grade (Level of protection)

IPX4

Anti-electric shock Rate

I

Noise (dB(A))

≤66

Net weight/Gross weight((kg)

298/313

Diameter of pipe (mm)

DN32


Description

  1. Environmental friendly and safe

Electric parts and water system is completely cut off, ensuring security water use, no pollution to the atmosphere and free of greenhouse effect and it is the safest water heater

  1. Wide climatic zone adaptability

Our heat pumps with special designing possess better climatic adaptability, can work from -25℃ to 43℃.

  1. Energy-saving

Heat pump water heater is a high efficient transferring heating equipment which is driven by electricity. The operating cost is only 1/4 of electric water heater, 1/3 of gas water heater.

  1. Automatic intelligent control system

Adopting intelligent computerized automatic control system, no manual cost, easy to operate, convenient, make heat pump work safely and reliably.
Control panel with modularized unit design can control more flexible heat pumps packs, with user-friendly operating system interface, easy to operate..

  1. Advanced testing methods

Adopting world-class Enthalpy potential laboratory to test heat pumps, except basic testing items, we also test heat pump in the ambient of temperature of -30℃ to test our heat pump performance.

  1. Widely used

Heat pump is applied to hot water for household and commercial use like families, schools, hospitals, shower center, swimming pools, etc. and industrial use like electroplating, drying, etc.
Competitive Advantage:

  1. EVI technology:

Adopting the most advanced low temp Enhanced Vapors Injection compressor technology which can help heat pump work steadily even at temperature of -25℃.

  1. Wide range of temperature:

EVI heat pump can work from -25℃.to 43℃. Widely used in different environment.

3. Higher heating capacity:
Using enlarging evaporator extracting more heat energy from air will increase COP.

  1. Automatic start-up anti-freezing protection

When the ambient is below zero degree, the unit is in standby mode more than 30 minutes, Automatic anti-freezing device will be started up so that the unit will be protecting in lower temperature.
