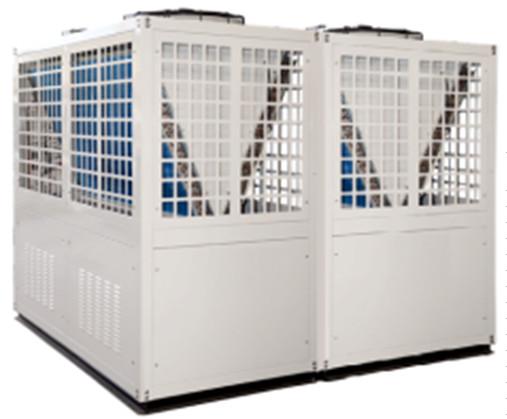

84 KW High temperature air source heat pump with 80℃ hot water
84 KW High temperature air source heat pump with 80℃ hot water
84 KW High temperature air source heat pump with 80℃ hot water
84 KW High temperature air source heat pump with 80℃ hot water
Specifications
Place of Origin :
China
Brand Name :
TRT or OEM
Certification :
CE,CB
Model Number :
TRT360HASHP
MOQ :
1
Price :
Negotiable
Packaging Details :
plywood
Delivery Time :
15-20 days
Payment Terms :
TT
Supply Ability :
1000 PCS a month
Description

With 80 oC outlet water, TRT High Temperature Water Heaters which adopt EVI compressor are the best choice for your special requirements. These units are energy efficient and environmentally friendly. They are the ideal substitutes for the traditional boilers.

Model TRT-360H-ASHP
configuration Metal plate Galvanized sheet / spray / grey or White
Unit size(W*D*H) 1850*2000*1950
Compressor Copeland ZW108KSE*4
Gas R134A/9KG*4
Power Supply 380V/50Hz
Condenser High Efficency Shell and tube
224CS200*4
Evaporator 4-900*1500
V-3/φ9.52/25U Pipe
Liquid storage tank CYQ-010,5.4L*4
Plate heat exchanger B3-16-36*4
Gas-liquid Separator KFR120WLG ,8.6L*4
4-way valve 2*SHF-35A-79*4
expansion valve 10RT*4+3RT*4
AC contactor (220V-32A)*4+(220V-18A)*2
Moto/ Fan Blade YWF.A6S-600S-5DIA00*4
Controller 4 systems
Low pressure switch 0.05/0.15MPa
High pressure switch 2.4/3.0MPa
Power line 3*16mm2+2*6mm2
Packing Polywood packing
parameter Heating capacity(kW) 84
Input power(kW) 35
Rated Current(A) 64
COP 2.40
Rated outlet water Temp(℃) 75
Max outlet water Temp(℃) 80
Water Production(L/H) 1204
Protection grade IPX4
Anti-electric shock Rate I
Noise(dB(A)) 1M ≤68
N.W(kg)/G.W(kg)(kg) 980/1200
Water Pipe Size (mm) DN100
Remark: working condition,Dry Bulb:35℃ Wet Bulb: 27℃; Initial water temperature 15℃, Outlet water temperature 75℃.

84 KW High temperature air source heat pump with 80℃ hot water

Description

  1. Environmental friendly and safe

Electric parts and water system is completely cut off, ensuring security water use, no pollution to the atmosphere

and free of greenhouse effect and it is the safest water heater

  1. Wide climatic zone adaptability

Our heat pumps with special designing possess better climatic adaptability, can work from -25℃ to 43℃.

  1. Energy-saving

Heat pump water heater is a high efficient transferring heating equipment which is driven by electricity.

The operating cost is only 1/4 of electric water heater, 1/3 of gas water heater.

  1. Automatic intelligent control system

Adopting intelligent computerized automatic control system, no manual cost, easy to operate, convenient, make

heat pump work safely and reliably.Control panel with modularized unit design can control more flexible heat pumps

packs, with user-friendly operating system interface, easy to operate..

  1. Advanced testing methods

Adopting world-class Enthalpy potential laboratory to test heat pumps, except basic testing items, we also test heat pump

in the ambient of temperature of -30℃ to test our heat pump performance.

  1. Widely used

Heat pump is applied to hot water for household and commercial use like families, schools, hospitals, shower center,

swimming pools, etc. and industrial use like electroplating, drying, etc.

Competitive Advantage:

  1. The application of enhanced vapor injection in high temperature hot water heat pump.
  2. Using larger condenser, double efficiency of condensing, higher heating capacity.
  3. Water temperature keeps at 80℃ constantly when the ambient temperature is 5℃.
  4. Stable inside pressure, the set inside pressure keeps at 2.5mpa when hot water is 75℃,
  5. and the pressure keeps at 2.8mpa when hot water is 80℃.

84 KW High temperature air source heat pump with 80℃ hot water

84 KW High temperature air source heat pump with 80℃ hot water84 KW High temperature air source heat pump with 80℃ hot water

Welcome to visit to our website, if you are interested in our heat pumps, please send us inquiry, we will reply you ASAP.
